What size mini split do I need? BTU by room, verified
30-second answer
What size mini split you need is set by the room’s heat load, not by square footage alone. A typical 450 ft² space in climate zone 5 with average insulation needs about 13,000 BTU of heat at 5°F, and screens at 11,500 BTU of cooling, which is a 12,000 BTU class unit. Match the heat number to a model’s verified capacity at 5°F, not to the size on its box: the two are not the same. Insulation, ceiling height, climate zone, and sun exposure all move the number, and anything over 1,400 ft², or spread across several rooms, needs a Manual J load calculation instead of a rule of thumb.
What size do you need for your space?
A single-room mini-split heat pump usually lands between 6,000 and 24,000 BTU. Within that range, insulation moves the answer more than square footage does.
The scenarios below come from our screening method. Its cooling base is ENERGY STAR’s published room-size table[1]; the ceiling, insulation, and climate adjustments, and the whole heating model, are MiniSplitsHQ editorial factors, listed on the methodology page. Treat each row as a starting point for one conditioned space, not as a load calculation.

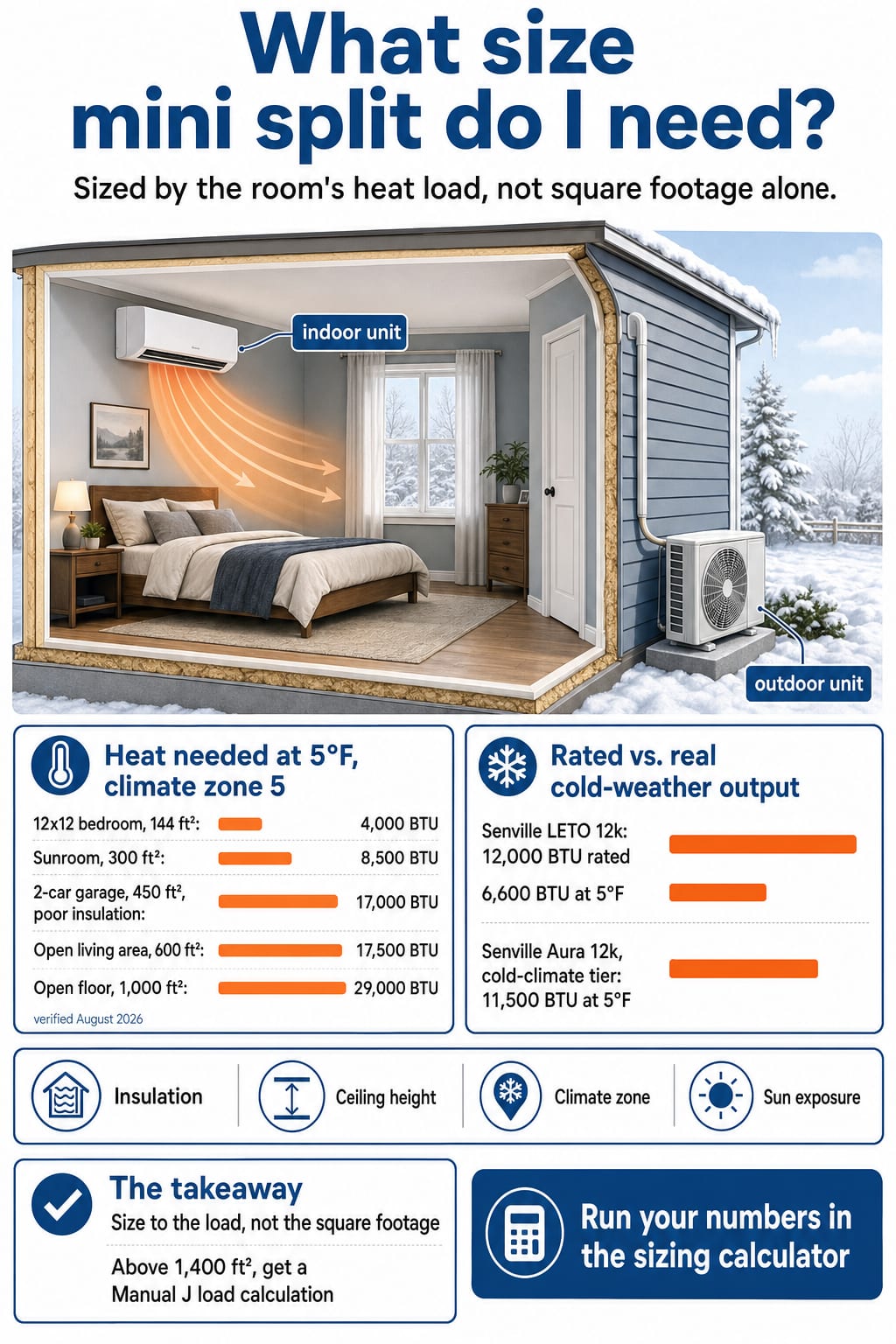

| Space | Heat needed at 5°FBTU/h | CoolingBTU/h |
|---|---|---|
| 12x12 bedroom, 144 ft², average insulation | 4,000 | 5,000 |
| Sunroom, 300 ft², average insulation, full sun | 8,500 | 8,500 |
| 2-car garage, 450 ft², poor insulation | 17,000 | 15,000 |
| Open living area, 600 ft², average insulation | 17,500 | 13,500 |
| Open floor, 1,000 ft², average insulation | 29,000 | 20,000 |
| All figures verified Aug 2026 · How we verify | ||
Every row assumes climate zone 5, 8 ft ceilings, and average sun exposure unless noted. These are screening estimates from the same method our mini split BTU calculator runs. You can rerun any row with your own inputs. If your space differs from its row in more than one way, run your real numbers instead of adjusting by feel.
The heat column is a load: the heat the room needs on a 5°F night. It is not a unit size. Compare it to a model’s verified capacity at 5°F, which is often well under the number printed on the box. The verified 5°F numbers below show how far apart those two figures get.
One row needs a flag: the 144 ft² bedroom needs about 4,000 BTU of heat, below the smallest common size class of 6,000 BTU, so even the smallest unit is oversized for that room. What oversizing costs you is covered in the oversize-or-undersize section below.
A single BTU-per-square-foot chart is not wrong, it is incomplete. The same 450 ft² space needs about 13,000 BTU of heat with average insulation in our method. With poor insulation it reads 17,000 BTU.
That spread is why no one chart value is universal. Our mini split sizing chart publishes the fixed reference rows, 200 to 1,200 ft², from this same method.
What actually drives mini split sizing?
Load calculation is the mechanism behind every honest sizing answer. ACCA Manual J is the ANSI-recognized standard for residential load calculation[2]. Every shortcut is an approximation of it.
A load calculation prices each path heat takes into or out of the room. The four factors below are the short version of that math.
- Insulation is the biggest single lever. Our screening method spans a factor of 0.85 for 2015-or-newer code construction to 1.3 for little or none. A garage with an uninsulated steel door sits at the top of that range.
- Ceiling height scales the air volume being conditioned. A 12 ft ceiling adds about a quarter over the 8 ft baseline.
- Climate zone and design temperature pull heating and cooling in opposite directions. Zone 2 needs more cooling and much less heating. Zone 6 reverses it.
- Sun exposure matters most for sunrooms and west-facing rooms. Full afternoon sun adds about 10% to the cooling load.
The factors multiply. That is why a space that is both tall and poorly insulated outgrows its square-footage class so fast. Above roughly 36,000 BTU or 1,400 ft², rule-of-thumb sizing stops being safe.
Duct losses, room-to-room balance, and multi-zone layout dominate past that point. Pricing those takes a Manual J load calculation from an HVAC contractor or energy auditor.
Will it keep up when it’s 0°F outside?
A standard 12,000 BTU unit does not deliver 12,000 BTU in the cold. The Senville LETO 12k is rated at 12,000 BTU of heating[3]. Its cold-climate directory listing shows a maximum of 6,600 BTU at 5°F, just over half the rated figure[4].
Rated heating is measured at 47°F outdoors. If you are sizing for real winter, buy on the capacity-at-temperature number, never the nameplate.
Cold-climate models hold far more of their rating. That is a model tier, not a brand promise. The same directory shows the spread:
| Model | Size class | Max heating at 5°F | Below 5°F (NEEP) |
|---|---|---|---|
| MRCOOL DIY 5th Gen 18k✓ | 18k | 12,800 BTU | — |
| Senville LETO 12k✓ | 12k | 6,600 BTU | — |
| Senville Aura 12k✓ | 12k | 11,500 BTU | 5,900 BTU at −22°F |
| Daikin Aurora FTXV12✓ | 12k | 13,500 BTU | 6,600 BTU at −13°F |
| All figures verified Aug 2026 · How we verify | |||
All four figures come from each model’s own NEEP cold-climate list entry[4]. A dash means the listing publishes no figure below 5°F for that model. Two honest caveats travel with this table.
First, the Senville Aura runs at −22°F, but it delivers 5,900 BTU there, under half its rated capacity. “Rated to −22°F” is not “heats your room at −22°F.”
Second, install path is part of the choice.
- MRCOOL DIY is a true quick-connect DIY line.
- Senville requires flare-and-vacuum installation, and its registration page states that DIY installation voids warranty coverage[5].
- Daikin is a pro-install brand. Its 12-year parts term requires registration within 60 days of installation[6].
If your area sees sustained single digits, match the unit’s published 5°F capacity to the heating row of your screening estimate. Then confirm with a load calculation. A standard-tier unit that covers the room at 47°F can fall to half output at 5°F. That means it runs flat-out on exactly the nights you need it most.
What happens if you oversize or undersize?
An oversized mini-split heat pump cools the air faster than it can pull moisture out of it. The room reads cool but feels clammy, and the usual response is lowering the thermostat, which raises cooling costs by up to 8% per degree[7]. Sizing close to the calculated load avoids that trap: it gives better humidity control and typically costs less to run than oversizing.
The reason is run time. A right-sized unit runs long, steady cycles. An oversized unit starts, hits the setpoint, and stops.
Short cycling also works the compressor harder for every hour of comfort it delivers. Long, steady cycles are the pattern inverter-driven systems are built for.
Undersizing fails differently. The unit runs nonstop, never quite reaches setpoint on peak days, and lives at maximum output. Neither direction is the safe one. Size to the load.
Sanity check your setup: the sizing decision path
Load math turns into a buying decision in five short steps. Each step has a stop condition. Work them in order.
- Measure the space. Length times width of the room you are conditioning. Below 100 ft², stop: the smallest common units are already oversized. Above 1,400 ft², stop: get a Manual J load calculation before buying anything.
- Run the screening estimate. Put your real inputs into the sizing calculator. Do not read a chart row that almost matches your room.
- Check the heating column first. If winter comfort is part of the job, compare your heating-at-5°F estimate against each model’s published 5°F capacity. If your design temperature is below what the model publishes, stop and move up a tier. Cold climate is a model choice.
- Sanity check the class jump. If your estimate lands between size classes, resolve it with the load factors, not with “bigger is safer.” Fixing the insulation is usually cheaper than the next class up.
- Check the electrical line before checkout. The next section is the stop condition for this one.
The decision path is a screen, not a verdict. Multi-room coverage, whole-home conversions, and anything with ducts moves the job to a load calculation, and usually to multi-zone equipment. More on how we handle that boundary is on the about MiniSplitsHQ page.
If the real question is comparing this to a ducted heat pump replacement rather than adding a zone, our mini split vs heat pump guide covers the ductless-vs-ducted trade-off directly. If the real question is central air instead, our mini split vs central air guide prices both sides by house situation, ducts or no ducts, with installed cost from two sources each way. For the fuller buying picture, from the three install tiers to cold-climate capacity, our ductless heating and cooling guide covers the whole decision in one place.
Do I need an electrician?
Size class decides the circuit. The MRCOOL DIY 5th Gen 12k runs on 115V with a 20A maximum breaker. The 18k in the same line runs on 230V with a 20A maximum breaker[8].
As a class pattern, 115V models live at the small end. Most equipment from the 18k class up wants a 208/230V circuit.
Where DIY ends: 240V
Adding or modifying a 240V circuit is panel work, and panel work is where DIY ends for most people. Breaker sizing, wire gauge, and the disconnect belong with a licensed electrician working from your model’s nameplate. Permits belong with your local building department. This is a fact about the job, not about your confidence.
The sizing takeaway: if your panel has no spare 240V capacity, a 115V model in a smaller size class may honestly serve a small space. A larger space needs the electrician visit priced into the project. Ask for the circuit quote before you order the unit, not after it arrives. The price changes with the run from the panel, so no national number substitutes for asking.
A single bedroom is the clearest case for a small 115V class. The mini split for a bedroom guide covers which 115V models actually skip the electrician, the indoor noise specs that matter most in a room where you sleep, and the short-cycling risk of buying a bigger class than the room needs.
A basement raises a different question first: not the breaker, but the drain. The mini split for a basement guide covers condensate pump requirements below grade, how far the line set can climb to reach an outdoor condenser at ground level, and where DIY still ends once refrigerant and a 240V circuit are on the table.
A detached shed raises the electrical question before any of the others: most sheds have no circuit built for a heat pump at all. The mini split for a shed guide covers the electrical ladder from an existing 115V outlet to a subpanel and trenched feeder, why insulation usually matters more than the equipment class, and the same guide covers tiny houses and detached offices too.
A manufactured home raises a different panel question: not spare capacity on a modern 200A service, but a federal floor well below it. The mini split for a mobile home guide covers the HUD Code cap on a manufactured home’s whole-home power supply, what that means for a 115V true-DIY circuit, and the same thin-envelope insulation math the shed guide covers.
An attic or upstairs room raises a different question: not the panel, but the ceiling. The mini split for an attic or upstairs guide covers why a room under the roof runs hotter and colder than the floor below it, how a vaulted or sloped ceiling moves the load, and the clearance a knee wall needs before an indoor head can mount there.
A sunroom raises a construction question before either of those: whether it is built for three-season or year-round use. The mini split for a sunroom guide covers why glazing and frame quality drive the winter load more than square footage, and why the 5°F number matters more here than in almost any other room in this cluster.
Sizing right the first time also protects the equipment you buy. A unit sized to the room, not oversized “to be safe,” avoids the short-cycling that shortens a compressor’s life. Our how long do mini splits last guide covers that link directly, plus the compressor warranty terms by brand worth checking before you order.
Quick answers
What size mini split do I need for 1,000 sq ft?
An open 1,000 ft² floor in climate zone 5 with average insulation needs about 29,000 BTU of heat at 5°F, and screens at 20,000 BTU of cooling, a 24,000 BTU class unit. The heat figure is a load, not a unit size: at that number you are looking for a cold-climate model whose verified 5°F capacity actually reaches it, and most single heads do not.
That also assumes one open space a single indoor unit can actually see. A wall unit cannot condition rooms it cannot blow air into. If the footage is split across separate rooms, the job becomes a multi-zone layout with a load calculation.
What size mini split for 1,500 sq ft?
Above 1,400 ft² we do not publish a rule-of-thumb number, and our calculator declines to give one. At that scale, duct losses, room-to-room balance, and zone layout dominate the math. The honest tool is a Manual J load calculation from an HVAC contractor or energy auditor[2]. Expect a multi-zone system sized room by room, not one big unit.
What size mini split for a 2-car garage?
A typical 2-car garage runs 400 to 500 ft², and insulation decides its number. The mini split for a garage guide sizes 1-car through 3-car garages with both insulation cases. At 450 ft² in climate zone 5, our screening estimate is 17,000 BTU of heat at 5°F with poor insulation. The same space insulated to average needs about 13,000 BTU.
Price door and ceiling insulation before the bigger unit. Insulation attacks the load itself. Once you know the number, best mini split for a garage compares four verified models by price, 5°F capacity, and warranty terms.
What size breaker does a mini split need?
The breaker size is a per-model spec printed on the manufacturer’s sheet, not a size-class rule. The MRCOOL DIY 5th Gen 12k lists a 20A maximum breaker on 115V. The 18k lists a 20A maximum on 230V[8]. Confirm your exact model’s nameplate, and leave breaker selection and installation to a licensed electrician.
What size vacuum pump do I need for a mini split?
None, if you buy a true quick-connect system. MRCOOL DIY and Zone Air ship sealed, pre-charged line sets that mate without evacuation[9]. “Pre-charged” on a listing only means the refrigerant ships in the unit.
Senville and Pioneer systems are pre-charged in that sense but still connect with flare fittings, so their installs still need a vacuum pump[10]. That refrigerant-side work belongs with a licensed HVAC technician.
Will DIY install void my warranty?
On premium brands, generally yes.
- Mitsubishi and Fujitsu warranty statements require installation by licensed HVAC contractors[11].
- Senville’s registration page states that DIY installation voids coverage[5].
- MRCOOL’s DIY series does not require a licensed contractor[12].
- Zone Air states that DIY installation does not void its warranty.
Register on time either way; deadlines run as short as 60 days[13].
Sources
- ENERGY STAR, Room Air Conditioners (area-to-capacity table; the calculator cooling base), accessed August 2026
- ACCA, Manual J Residential Load Calculation (standard overview), accessed August 2026
- Senville product specification pages, LETO SENL-12CD and Aura SENA-12HF, accessed August 2026
- NEEP Cold-Climate Air-Source Heat Pump directory entries: MRCOOL DIY 5th Gen 18k; Senville LETO SENL-12CD; Senville Aura SENA-12HF; Daikin FTXV12AVJU9/RXT12AVJU9, accessed August 2026
- Senville warranty terms and warranty registration pages, accessed August 2026
- Daikin standard warranty information page, accessed August 2026
- UF/IFAS Extension, Energy Efficient Homes: Air Conditioning, FCS3262/FY1026, accessed August 2026
- MRCOOL product documentation, DIY 5th Gen 12k and 18k condenser pages, accessed August 2026
- Zone Air warranty and returns page, and wall-mount installation manual, accessed August 2026
- Pioneer WYS series product page, accessed August 2026
- Mitsubishi Electric M-Series limited warranty statement, accessed August 2026
- MRCOOL DIY series limited warranty documents, accessed August 2026
- Fujitsu General AIRSTAGE limited warranty statement, accessed August 2026
Spec verification process: how we verify specs and prices. Found an error? See the corrections policy on that page.
