Mini split for bedroom: noise, sizing, and 115V
30-second answer
A mini split for a bedroom is a sizing question and a noise question at once. The two are connected. The MRCOOL DIY 12k is the smallest 115V single-zone model in its line. It holds 8,400 of its 12,000 BTU rating at 5°F. A typical 12x12 bedroom itself often needs far less: about 5,000 BTU of cooling and roughly 4,000 BTU of heating load at 5°F. Buying the 12k class most reviews cover, for a room that actually screens smaller, is the most common mistake. It is also the most common way a bedroom system ends up short-cycling instead of holding a steady low speed. Indoor noise at low or quiet mode runs from 17.5 to 30 dB(A) across the models checked here. None of that matters if the unit is oversized enough to cycle instead of idle.
Bedroom noise: what do the spec sheets actually say?

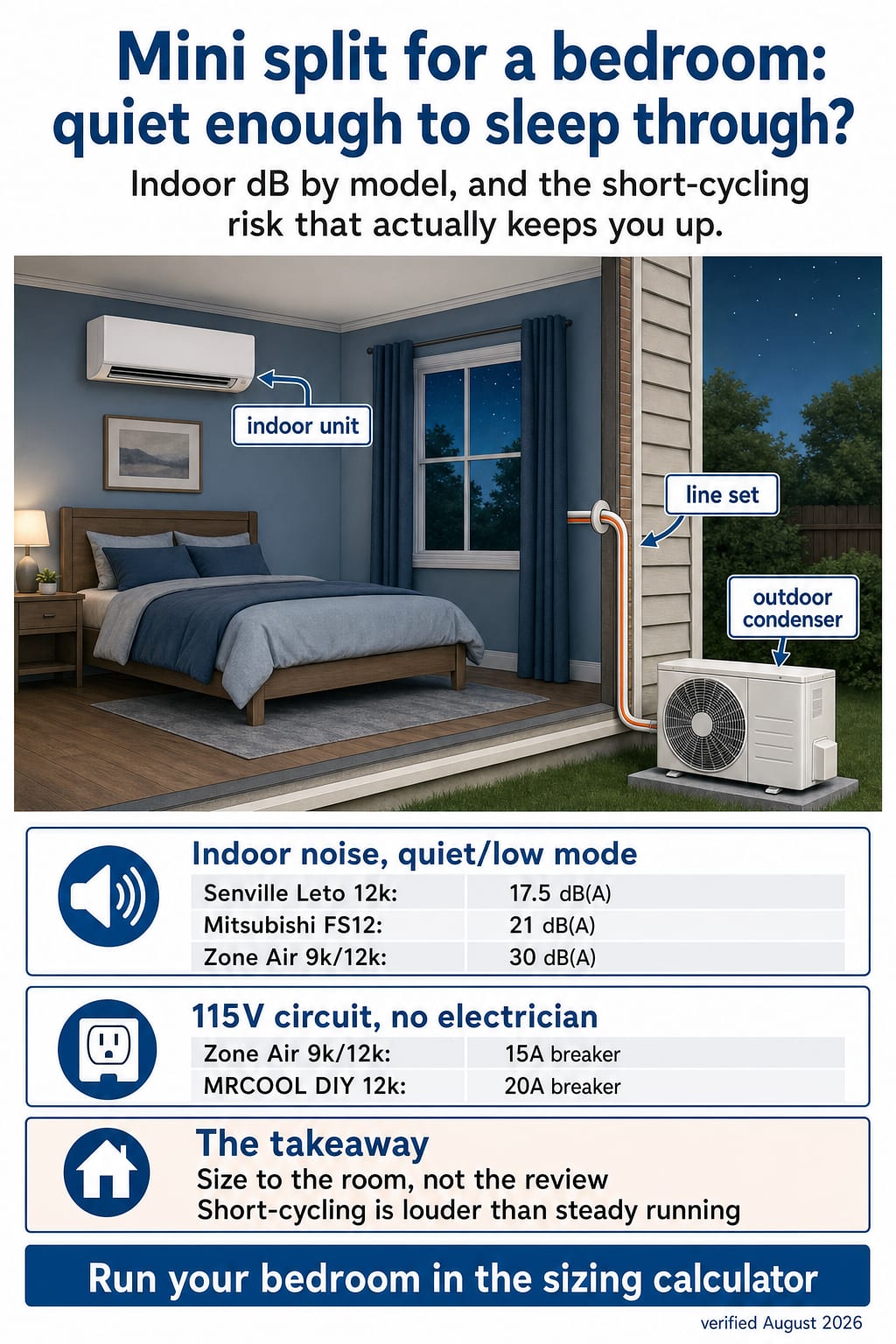

Indoor sound level is a published spec, not a marketing adjective. It varies by more than 10 dB(A) between models at their quietest setting. The Senville Leto SENL-12CD publishes 17.5 dB(A) indoors at its lowest fan speed, the quietest figure of the models checked here[1].
| Model | Install tier | Indoor dB, low/quiet mode | Outdoor dB |
|---|---|---|---|
| MRCOOL DIY 12k 5th Gen✓ | True-DIY, no vacuum pump | Not published for the indoor head | 54 dB(A) |
| Zone Air DIY 9k / 12k, 115V✓ | True-DIY, no vacuum pump | 30 dB(A) at Mute, 32 dB(A) at Lo | 52 dB(A) |
| Senville Leto SENL-12CD✓ | Vacuum-required | 17.5 dB(A) at lowest, 25.0 dB(A) at Low | 54.0 dB(A) |
| Mitsubishi MSZ-FX12NL✓ | Pro-install-only, DIY voids warranty | 20 dB(A) cooling, 21 dB(A) heating, at Quiet | 49 dB(A) cooling, 51 dB(A) heating |
| All figures verified Aug 2026 · How we verify | |||
MRCOOL does not publish a separate decibel rating for the DIY 12k indoor air handler. The 54 dB(A) figure on its documentation is the outdoor condenser’s rating, not the indoor head’s. The indoor-unit support page returned an error on recheck, and neither the performance-specs sheet nor the full installation manual lists an indoor figure[2].
Cooper & Hunter’s Sophia Series 12k publishes a sound-pressure table too, but its spec booklet is a scanned, image-based PDF, and the row of per-mode dB(A) figures reads differently on repeat checks. An unreliable read is not a citable one, so neither MRCOOL’s indoor figure nor a Cooper & Hunter row appears in the table above; both gaps are stated here rather than guessed.
- Zone Air and Senville both publish sub-20 dB(A) territory in their quietest mode, close to the sound of rustling leaves.
- Mitsubishi’s quiet-mode figure stays close between modes, 20 dB(A) cooling versus 21 dB(A) heating, a smaller gap than most models show between modes[3]. It is also the only model here that is pro-install-only.
- Outdoor dB matters for a bedroom too if the condenser pad sits near a window. All four models cluster in the 49 to 54 dB(A) range at the outdoor unit, close enough that the indoor number decides more of the buying choice.
A published low-mode number is the ceiling a unit can reach, not a promise. The next section covers the one thing that keeps a mini split from running at that quiet low speed in the first place.
Will an oversized unit keep me up at night?
Short-cycling, not steady-state noise, is the complaint behind most “is this normal” bedroom questions. A condenser too big for the room satisfies the thermostat fast, then shuts off and restarts a few minutes later once the room drifts back up. Each restart is a compressor spin-up, the loudest moment in a mini split’s cycle, repeating all night in a room sized for sleep. Turndown ratio is the spec that predicts this: how far a compressor can throttle down from its rated output at a given outdoor temperature.
| Model | Rated at 47°F | Holds at 5°F | Turndown ratio at 5°F |
|---|---|---|---|
| MRCOOL DIY 12k 5th Gen✓ | 12,000 BTU | 8,400 BTU | 2.1 |
| Senville Leto SENL-12CD✓ | 12,000 BTU | 6,600 BTU | 1.94 |
| All figures verified Aug 2026 · How we verify | |||
A wider ratio means more room to idle down for a small space instead of cycling on and off. Both figures come from each model’s own NEEP cold-climate list entry[4]. A wider turndown ratio is not a brand-wide promise. Check the exact model, not the family name.
Run the room through the sizing calculator before buying either one.
- A 12x12 bedroom (144 ft², Zone 5, average insulation, 8-foot ceiling) screens to about 5,000 BTU of cooling, a 6,000 BTU purchasable class, and roughly 4,000 BTU of heating load at 5°F.
- Both 12k models in the table above hold more 5°F capacity than that bedroom’s own heating load needs. That headroom is exactly what turns into short-cycling once the room reaches setpoint.
- A larger primary bedroom or a bedroom sharing airflow with an open hallway can screen closer to the 9k or 12k class for real. Run the exact dimensions rather than assuming a bedroom is always the small case.
- Above 1,400 ft² or 36,000 BTU total, single-head sizing stops being safe and the sizing chart and a Manual J calculation take over instead[5].
The what size mini split hub covers the full load-factor math: insulation, ceiling height, and climate zone. This section is what changes once the room in question is small enough to sleep in.
Which 115V models actually skip the electrician?
A 115V model plugs into a standard dedicated outlet instead of a new 230V circuit. That is a real difference for a bedroom retrofit, where opening a wall for wiring is often the whole reason a reader is still shopping. Zone Air’s 9,000 and 12,000 BTU DIY models both run on a 15A single-pole breaker at 110-120V[6].
| Model | Voltage | Breaker | Install tier |
|---|---|---|---|
| MRCOOL DIY 12k 5th Gen✓ | 115V | 20A max, 18A min circuit ampacity | True-DIY |
| Zone Air DIY 9k / 12k✓ | 110-120V | 15A single-pole | True-DIY |
| Senville Leto SENL-12CD✓ | 115V | 20A max fuse, 19A min circuit ampacity | Vacuum-required |
| Mitsubishi MSZ-FX12NL✓ | 208/230V | 15A max, 14 AWG wire | Pro-install-only |
| All figures verified Aug 2026 · How we verify | |||
A 115V circuit is not the same question as a 115V outlet. Confirm the existing outlet is on its own dedicated circuit before assuming no electrical work is needed at all. A shared bedroom circuit already feeding other outlets is a common reason a “no electrician” install still needs one electrician visit, to split the circuit.
Where DIY ends: 240V
A bedroom load big enough to need an 18k-or-larger class, or a panel with no spare 115V capacity at all, moves the job to a 208/230V circuit. Adding or modifying a 240V circuit is panel work, and panel work is where DIY ends for most people. Breaker sizing, wire gauge, and the disconnect belong with a licensed electrician working from the model’s nameplate. Permits belong with your local building department.
Can I DIY a bedroom mini split myself?
Only on the models that skip the vacuum pump. 115V is not a shortcut around that check. MRCOOL DIY and Zone Air ship pre-charged quick-connect line sets that mate without evacuation, the same true-DIY tier as their larger classes[7].
Where DIY ends: refrigerant
Flaring copper, pressure-testing the lines, and pulling a vacuum to a verified micron reading is refrigerant work, whether the model runs on 115V or 230V. This is where DIY ends for most people on any vacuum-required brand. A licensed HVAC technician does this work. We describe it here so you can judge a quote, not so you can skip one.
The Senville Leto being 115V does not change its install tier. Its own product page still states that professional installation is required to maintain warranty coverage[1]. That holds regardless of voltage.
- MRCOOL and Zone Air: true-DIY, no vacuum pump, warranty stays intact on a DIY install.
- Senville, including its 115V models: vacuum-required, and its own page states professional installation is required to keep the warranty.
- Mitsubishi: pro-install-only. DIY installation voids the warranty on premium brands like this one[8].
Never call a vacuum-required system “DIY-easy” just because it plugs into a household outlet. The refrigerant circuit is the real dividing line. The voltage is not.
Do I need one mini split per bedroom, or one system for the whole house?
Neither answer is automatic. It depends on how many rooms actually need coverage at once.
- One mini split per bedroom means one outdoor unit, one breaker, and one full failure isolated to a single room if it ever needs service.
- Covering several bedrooms from one condenser instead is a multi-zone question, not a bedroom-sizing one.
The mini split for multiple rooms guide covers that multi-zone decision in full. It walks through the per-room load math, the shared cold-climate ceiling a multi-zone condenser carries, and when several single-zone systems beat one shared outdoor unit. Start there once more than one bedroom is in scope.
Sanity check your bedroom setup
Work these four checks in order before buying equipment.
- Run the room’s own dimensions through the sizing calculator. Do not assume “bedroom” means small; a primary suite or a room sharing airflow with a hallway can screen larger.
- Check the model’s 5°F heating capacity against that load, not its 47°F nameplate. A model that clears the load with a wide margin is the one most likely to short-cycle.
- Confirm the true-DIY tier before assuming “115V” means no professional work. Senville’s 115V models still need a vacuum pump.
- Confirm the outlet is on its own dedicated circuit, or price the electrician visit to split one if it is not.
If a true-DIY 115V model clears the load without a wide margin, it is usually the simplest bedroom build. Our DIY mini split installation guide covers the tool list and where DIY ends either way.
Quick answers
Is my bedroom mini split’s noise normal, or does it need service?
Indoor dB at low or quiet mode runs from 17.5 to 30 dB(A) across the true-DIY and quiet-tier models checked here[6]. A steady low hum at that range is normal; short, rhythmic on-off cycling is more often short-cycling from an oversized unit than a fault.
What size mini split do I need for a bedroom?
It depends on the room, not a flat bedroom rule. A 12x12 bedroom at Zone 5 with average insulation screens to about 5,000 BTU of cooling, a 6,000 BTU class, and roughly 4,000 BTU of heating load at 5°F. Run your own dimensions through the sizing calculator rather than defaulting to the 12k class most reviews cover.
Do I need an electrician for a bedroom mini split?
Not if a true-DIY 115V model fits an existing dedicated outlet: Zone Air’s 9k and 12k models run on a 15A breaker, and MRCOOL’s DIY 12k runs on a 20A breaker, both at 115V[7]. A new circuit, a shared existing circuit, or a load that needs an 18k-or-larger 230V class still needs a licensed electrician.
Will DIY install void my warranty on a bedroom mini split?
On MRCOOL and Zone Air, no, DIY install keeps the warranty intact. On Senville, yes, its own product page states professional installation is required to maintain warranty coverage, even on its 115V Leto model. On Mitsubishi, yes, DIY install voids the warranty on this premium brand[8].
Will a bedroom mini split keep up when it’s freezing outside?
Check the model’s own 5°F number, not its 47°F nameplate. The MRCOOL DIY 12k holds 8,400 of its 12,000 BTU rating at 5°F; the Senville Leto SENL-12CD holds 6,600 of the same 12,000 BTU rating[9]. Both exceed a typical bedroom’s own heating load at that temperature, which is the oversizing risk this guide covers.
Should I put one mini split in every bedroom, or one system for the whole house?
One per bedroom keeps each room’s failure isolated and its own full turndown range. Covering several bedrooms from one condenser is a multi-zone decision instead, with its own shared cold-climate ceiling and per-room load math covered in the mini split for multiple rooms guide.
Sources
- Senville manufacturer product page, 12000 BTU Mini Split Air Conditioner - Heat Pump - SENL/12CD/110V, accessed August 2026
- MRCOOL DIY 5th Gen Single Zone Installation & User Manual, accessed August 2026
- Mitsubishi Electric Trane HVAC US LLC system submittal, SPECIFICATIONS: MSZ-FX12NL & MUZ-FX12NLHZ, accessed August 2026
- NEEP Cold-Climate Air-Source Heat Pump directory entry: MRCOOL DIY 12k 5th Gen (DIY-12-HP-C-115D25-O), accessed August 2026
- ACCA, Manual J Residential Load Calculation (standard overview), accessed August 2026
- Zone Air manufacturer product pages, DIY 9,000 BTU and DIY 12,000 BTU 115V Wall Mount, accessed August 2026
- MRCOOL product documentation, DIY 12k 5th Gen Condenser - 115v support page, accessed August 2026
- Mitsubishi Electric M-Series limited warranty statement, accessed August 2026
- NEEP Cold-Climate Air-Source Heat Pump directory entry: Senville SENL-12CD-OL / SENL-12CD-ILL, accessed August 2026
Spec verification process: how we verify specs and prices. Found an error? See the corrections policy on that page.
