Mini split for shed: electrical, insulation, and DIY tiers
30-second answer
A mini split for a shed is an electrical question before it is an equipment question. Most sheds have no circuit built for one at all. The MRCOOL DIY 12k, the smallest 115V single-zone model in its line, holds 8,400 of its 12,000 BTU rating at 5°F[1]. That figure only matters once the shed has power to run it on. An existing dedicated 115V outlet, a new branch circuit, or a subpanel fed by a trenched line are three different jobs, three different costs, and only one of them is DIY. Insulation decides the load. The electrical run decides the budget.

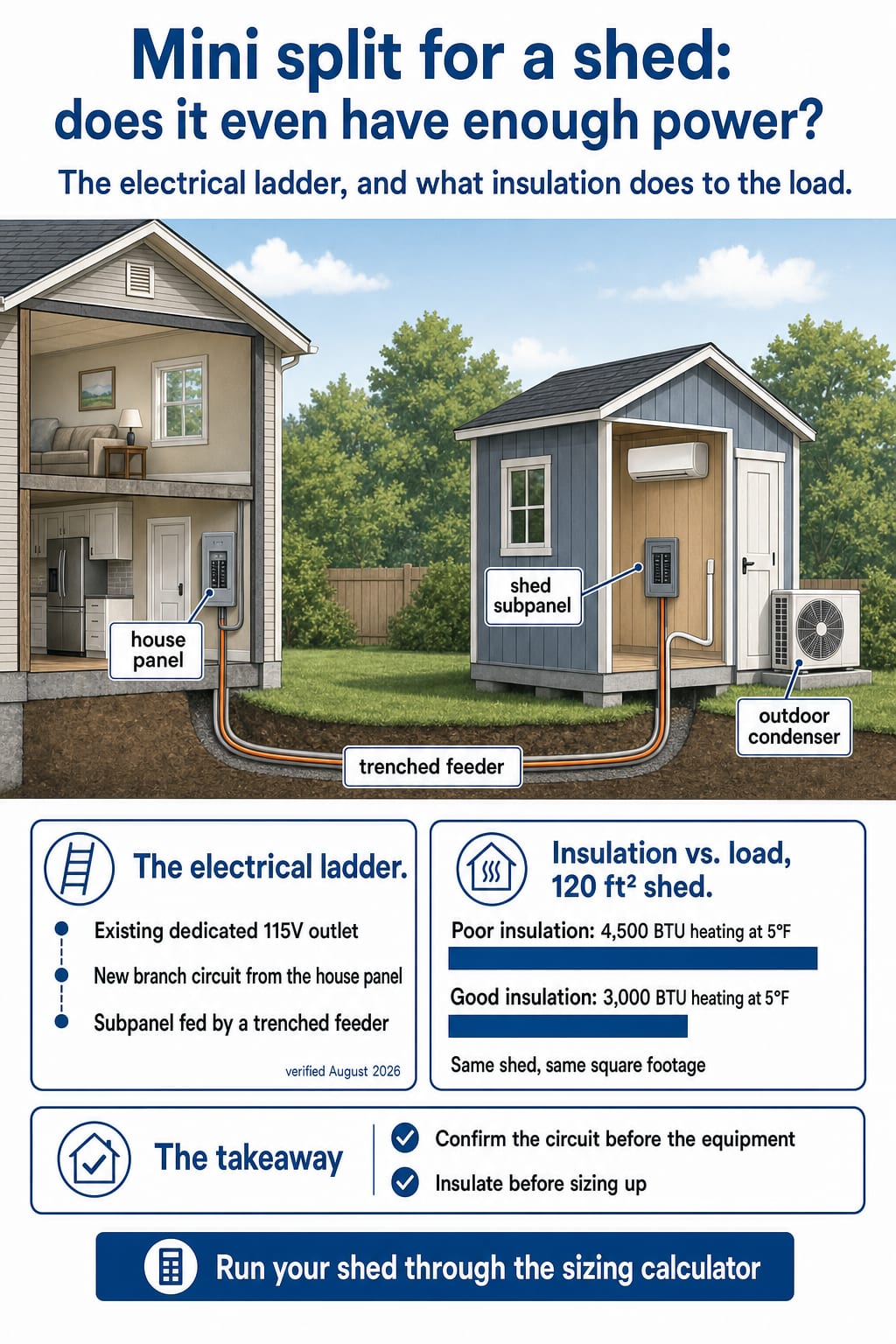

Does my shed have enough power for a mini split?
Probably not yet. A detached structure built for storage, not comfort, rarely has a circuit sized for a heat pump. The honest starting point is the electrical ladder, not the BTU chart.
- An existing dedicated 115V circuit already serving the shed and nothing else is the cheapest path, if it has enough spare capacity for the breaker a small unit needs.
- A new branch circuit run from the house panel is the next step up, needed when no dedicated circuit exists yet or the load calls for 230V.
- A subpanel fed by a trenched underground feeder is the largest job, typical for a shed too far from the house panel for a simple branch run, or one that will carry more than a mini split someday.
Where DIY ends: the new circuit
Any circuit beyond an already-existing dedicated outlet is panel work, trenching, or both. A new branch circuit, a subpanel, and an underground feeder are licensed-electrician and permit territory, not a weekend project. Breaker sizing, wire gauge, trench depth, and conduit type belong with a licensed electrician working from the local code, and permits belong with your local building department.
| Model | Voltage | Breaker | Install tier |
|---|---|---|---|
| MRCOOL DIY 12k 5th Gen✓ | 115V | 20A max, 18A min circuit ampacity | True-DIY |
| Zone Air DIY 9k / 12k✓ | 110-120V | 15A single-pole | True-DIY |
| Senville Leto SENL-12CD✓ | 115V | 20A max fuse, 19A min circuit ampacity | Vacuum-required |
| Mitsubishi MSZ-FX12NL✓ | 208/230V | 15A max, 14 AWG wire | Pro-install-only |
| All figures verified Aug 2026 · How we verify | |||
A 115V model matters here more than anywhere else in this cluster[10]. It can be the difference between plugging into an outlet a shed already has and opening a trench. Zone Air’s own product page states plainly not to use an extension cord[2]. A mini split is a fixed appliance on its own dedicated circuit, not a plug-in load to share with a shop light and a radio.
- The equipment is usually the cheap part of a shed install. A true-DIY 115V unit runs a few hundred dollars in line set and mounting hardware beyond the system itself. The subpanel-and-trench tier below can cost more than the system it feeds.
- The electrical work has a published spread, not one number. Two national cost guides price the job differently, so both ranges appear here, never averaged. HomeGuide puts an underground line to a detached structure at $10 to $25 per linear foot. That is $500 to $3,800 total for a 50 to 150 foot run, line only. A subpanel adds $500 to $1,700 on top. Angi puts the whole run at $1,000 to $3,800, priced by distance[3][4].
- The dig and the permit have their own line items. Both guides put professional trenching at $5 to $12 per linear foot, and HomeGuide puts electrical permits at $50 to $350. Trench length, existing panel spare capacity, and local permit fees still move the final price. Get an itemized electrician quote for your exact run before pricing equipment.
- Ask the electrician first, not last. A shed with no realistic path to power changes the whole plan, including whether a mini split is the right answer at all this season.
Should I insulate my shed or just buy a bigger mini split?
Insulate first. In a small, uninsulated structure, insulation moves the load more than almost any other factor. A poorly insulated shed can carry a meaningfully bigger load than the same shed insulated to an average level, before a single BTU changes at the equipment.
| Insulation level | Heating load at 5°F | Cooling load |
|---|---|---|
| Poor (little or none)✓ | 4,500 BTU | 6,000 BTU |
| Average✓ | 3,500 BTU | 5,000 BTU |
| Good (2015+ code)✓ | 3,000 BTU | 4,000 BTU |
| All figures verified Aug 2026 · How we verify | ||
Insulating a poorly insulated shed up to code-level walls and a sealed roof cuts this example’s load by about a third[5], with the shed’s dimensions completely unchanged.
- The smallest purchasable class stays 6,000 BTU at every level here. No model ships smaller. What changes is how much of that unit’s range the actual load uses.
- A poorly insulated shed’s load sits close to a 6,000 BTU unit’s full output. The unit runs closer to its rated capacity, which is normal, efficient operation.
- A well-insulated shed’s load can sit well under that same 6,000 BTU unit’s output. That gap is exactly the short-cycling risk the mini split for a bedroom guide covers in its turndown-ratio breakdown: a unit satisfying a small load fast, shutting off, and restarting all night instead of holding a steady low speed.
Insulating a shed is cheaper than buying a system a size class up, and it solves comfort year-round, not just for the mini split.
- Run the shed’s own dimensions through the sizing calculator once the insulation plan is set, not before.
- Above 1,400 ft² or 36,000 BTU total, single-head sizing stops being safe. The sizing chart and a Manual J calculation take over instead[6]. Most sheds never approach that bound; a shop or a large detached garage sometimes does.
Can I DIY a shed mini split myself?
Only on the models that skip the vacuum pump. A shed does not change that check.
Where DIY ends: refrigerant
Flaring copper, pressure-testing the lines, and pulling a vacuum to a verified micron reading is refrigerant work in a shed the same as in a house. MRCOOL DIY and Zone Air ship pre-charged quick-connect line sets that skip this step entirely[7]. Every vacuum-required brand still needs it. A licensed HVAC technician does this work.
- MRCOOL and Zone Air: true-DIY, no vacuum pump, warranty stays intact on a DIY install. This is the strongest true-DIY case in this whole cluster: a detached shed on its own dedicated 115V circuit can be a quick-connect line set and a plug, nothing else.
- Senville, including its 115V Leto: vacuum-required. Its own product page states professional installation is required to keep the warranty, regardless of voltage[8].
- Mitsubishi: pro-install-only. DIY installation voids the warranty on premium brands like this one[9].
Never call a vacuum-required system “DIY-easy” because the building is small. The refrigerant circuit is the dividing line, not the square footage.
Does a tiny house need different sizing than a workshop shed?
Yes, mainly in how the space gets used, not in the physics. A workshop shed runs intermittently: a few hours at a time, often with the door opening and closing. A tiny house runs full-time, with someone sleeping and living in it through the coldest night of the year.
- Continuous occupancy raises the practical demand, even when the design-temperature load calculation comes out the same. A system sized right at the margin for occasional use has less room to spare for round-the-clock comfort.
- A tiny house often falls under different code and inspection rules than a storage shed, especially one built on a trailer chassis instead of a fixed foundation. Confirm the applicable code with your local building department before assuming shed rules apply.
- Electrical capacity matters more, not less, in a tiny house. A full-time home typically already needs the branch-circuit or subpanel tier of the electrical ladder above, not just an existing outlet.
Run the tiny house’s actual square footage and insulation level through the sizing calculator the same as any other space. The occupancy pattern changes how much margin to build in, not the load math itself.
Is a mini split quiet enough for a detached home office?
Usually, yes, and noise is the right question to ask before buying one for a detached office. A workshop shed can tolerate a louder unit. A room where someone takes calls all day cannot.
- Check the mini split for a bedroom guide’s dB comparison first. It compares indoor dB specs across true-DIY, vacuum-required, and pro-install-only models at their quietest setting, the same comparison that applies to a detached office. The model, not the building type, sets the noise floor.
- A detached office runs the same electrical and DIY-tier questions as any other shed. Confirm the circuit first, then the model, then the noise spec.
Sanity check your shed setup
Work these four checks in order before buying equipment.
- Confirm the electrical path first. An existing dedicated 115V circuit, a new branch circuit, or a subpanel and trench are three different projects. Get the electrician’s read before pricing equipment.
- Insulate before sizing up. A poorly insulated shed’s load can run meaningfully higher than the same shed insulated to an average level, at the same square footage.
- Run the shed’s real dimensions through the sizing calculator. Do not guess from a garage or bedroom rule of thumb.
- Confirm the true-DIY tier before assuming a small building means a simple install. The refrigerant-handling line does not move for a shed any more than it does for a house.
A true-DIY 115V model on an existing dedicated circuit, in a shed insulated before the unit is sized, is the strongest true-DIY case in this cluster. Our DIY mini split installation guide covers the tool list and where DIY ends either way.
Quick answers
Does my shed have enough power for a mini split?
Probably not without checking first. Most sheds have no circuit built for a heat pump. The path runs from an existing dedicated 115V outlet, up through a new branch circuit, to a subpanel fed by a trenched underground feeder, three different jobs at three different costs. Get an electrician’s read on the exact run before pricing equipment.
Can I run a mini split off an extension cord?
No. A mini split is a fixed appliance and needs its own dedicated circuit, not a shared plug-in load. Zone Air’s own product page states plainly not to use an extension cord with its DIY units[2]. Treat this the same as any hardwired or dedicated-outlet appliance.
Should I insulate my shed or just buy a bigger mini split?
Insulate first. In a 120 ft² shed at Zone 5, poor insulation screens to about 4,500 BTU of heating load at 5°F versus about 3,000 BTU insulated to a 2015-plus code level, at the same dimensions[5]. The purchasable equipment class often does not even change; insulation is usually the cheaper fix.
Will DIY install void my warranty on a shed mini split?
On MRCOOL and Zone Air, no. DIY install keeps the warranty intact regardless of building type. On Senville, yes, its own product page states professional installation is required, even on its 115V Leto model. On Mitsubishi, yes, DIY installation voids the warranty on this premium brand[9].
Does a tiny house need different sizing than a workshop shed?
The load math is the same, but full-time occupancy raises the practical margin a tiny house needs versus a shed used a few hours at a time. A tiny house, especially one on a trailer chassis, can also fall under different code and inspection rules than a storage shed. Confirm with your local building department before assuming shed rules apply.
Is a mini split quiet enough for a detached home office?
Usually, and the model decides more than the building does. The mini split for a bedroom guide compares indoor dB specs across true-DIY, vacuum-required, and pro-install-only models at their quietest setting, the same comparison that applies to an office. Check that table, then confirm the same electrical and DIY-tier questions any shed install needs.
Sources
- NEEP Cold-Climate Air-Source Heat Pump directory entry: MRCOOL DIY 12k 5th Gen (DIY-12-HP-C-115D25-O), accessed August 2026
- Zone Air manufacturer product pages, DIY 9,000 BTU and DIY 12,000 BTU 115V Wall Mount, accessed August 2026
- HomeGuide, How much does it cost to run electricity to a shed, garage, or shop?, accessed August 2026
- Angi, How Much Does It Cost to Run Electricity to a Shed or Detached Garage?, updated July 2026, accessed August 2026
- MiniSplitsHQ screening method,
src/lib/sizing-formula.mjs(editorial ceiling, insulation, and climate factors; editorial heating model; 1,400 ft² and 36,000 BTU bounds), verified August 2026 - ACCA, Manual J Residential Load Calculation (standard overview), accessed August 2026
- MRCOOL product documentation, DIY 12k 5th Gen Condenser - 115v support page, accessed August 2026
- Senville manufacturer product page, 12000 BTU Mini Split Air Conditioner - Heat Pump - SENL/12CD/110V, accessed August 2026
- Mitsubishi Electric Trane HVAC US Residential M-Series/P-Series/SMART MULTI Limited Warranty Statement, accessed August 2026
- Mitsubishi Electric Trane HVAC US LLC system submittal, SPECIFICATIONS: MSZ-FX12NL & MUZ-FX12NLHZ, accessed August 2026
Spec verification process: how we verify specs and prices. Found an error? See the corrections policy on that page.
