Mini split for attic or upstairs: sizing, placement
30-second answer
A mini split for an attic or upstairs room is a ceiling-height question as much as a square-footage one. Warm air rises and a roof deck absorbs solar heat directly above the room, so an upstairs space runs hotter in summer and colder in winter than the same floor area downstairs. A vaulted or sloped ceiling adds air volume on top of that. The MRCOOL DIY 12k, the smallest 115V single-zone model in its line, holds 8,400 of its 12,000 BTU rating at 5°F[1]. Match that figure to the room’s real ceiling height and insulation, not its floor plan.
Why does an attic or upstairs room run hotter than the rest of the house?
Two mechanisms stack on top of each other. Warm air rises and collects near the ceiling, and a roof deck absorbs solar heat directly above an upstairs room, with no attic space left to buffer it. An unfinished or under-insulated attic makes both effects worse: ENERGY STAR recommends R49 to R60 of attic insulation for most of the country, depending on climate zone[2]. Our screening method has no stories-specific modifier, so ceiling height and insulation level are the two levers that carry this effect into a BTU number.
Does a sloped or vaulted ceiling change the size I need?
Yes, more than square footage alone suggests. A taller or sloped ceiling adds air volume the system has to condition, and our screening method scales the load with it.

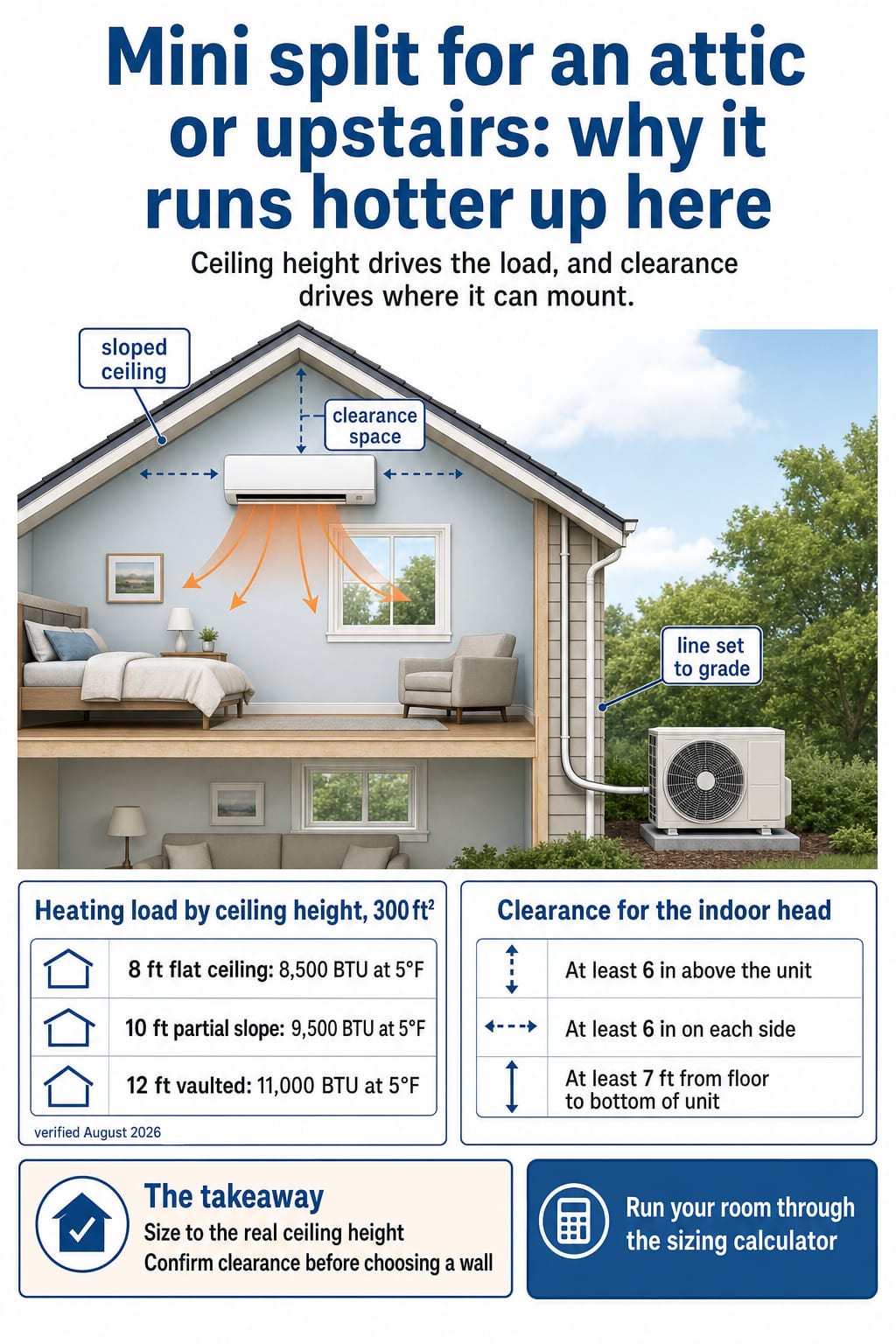

| Ceiling height | Heating load at 5°F | Cooling load |
|---|---|---|
| 8 ft (flat)✓ | 8,500 BTU | 7,500 BTU |
| 10 ft (partial slope)✓ | 9,500 BTU | 8,500 BTU |
| 12 ft (vaulted)✓ | 11,000 BTU | 9,500 BTU |
| All figures verified Aug 2026 · How we verify | ||
That is a 2,500 BTU heating swing at the same 300 square feet, from ceiling height alone.
- Poor insulation compounds the ceiling effect. The same 300 ft² room at a 10-foot ceiling screens to about 12,500 BTU of heat with poor insulation, versus 9,500 BTU average.
- A whole upstairs, not just one bonus room, moves the math fast. Run each room’s own dimensions through the sizing calculator instead of scaling one room’s number up.
- The sizing chart and the what size mini split hub cover the same ceiling, insulation, and climate factors for other room types.

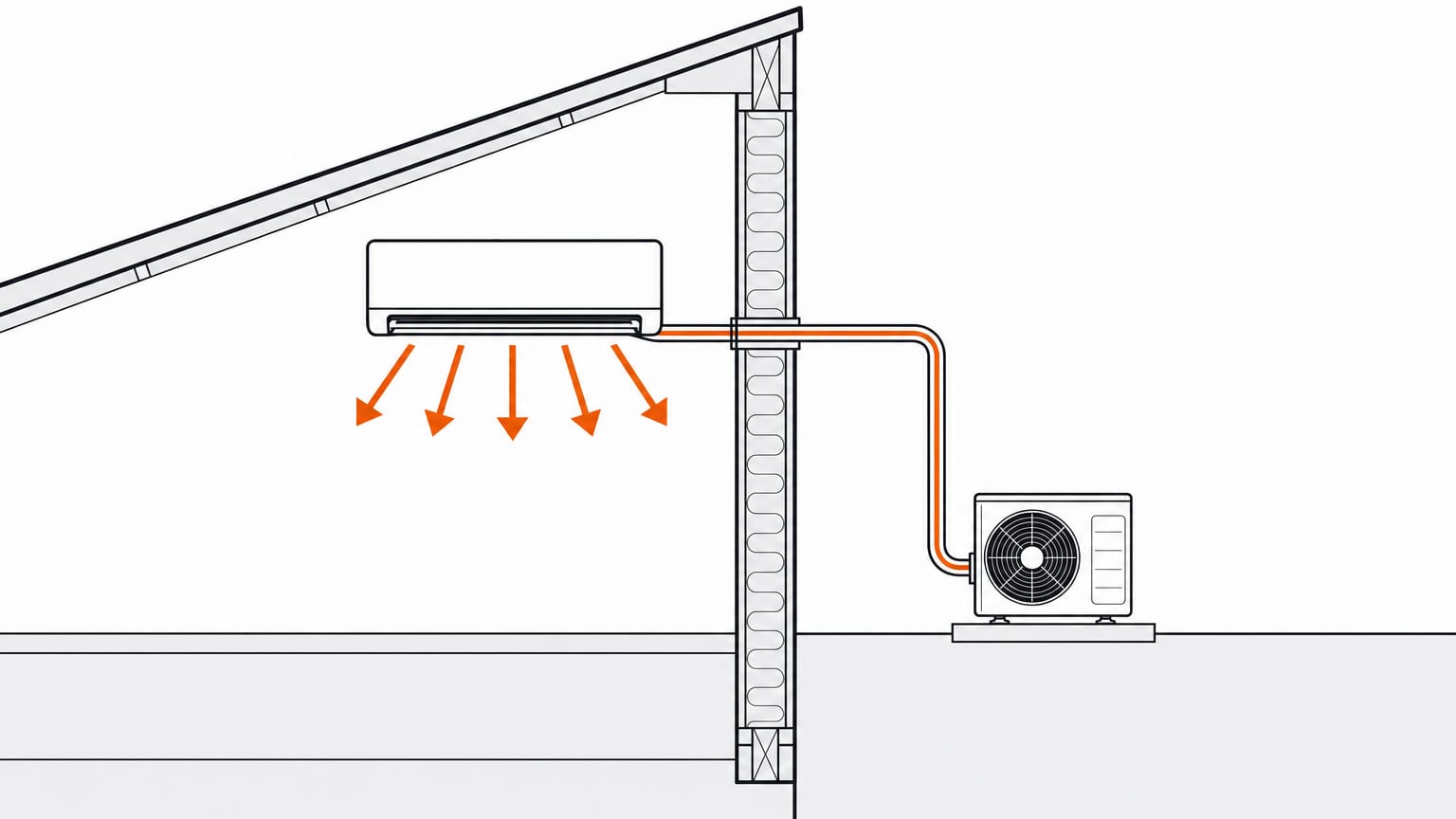

Where can I mount the indoor head under a sloped ceiling or on a knee wall?
Clearance decides this before the model does. MRCOOL’s general installation guidance calls for at least 6 inches of clearance above a wall-mounted indoor head and on each side. The bottom of the unit should sit at least 7 feet above the floor[3].
- A knee wall short enough to lose that clearance is not a mounting point, whatever its square footage looks like on paper.
- The high side of a sloped ceiling, or a gable-end wall, usually has the room a low knee wall does not.
- This is general manufacturer guidance, not one model’s exact spec. Confirm the installation manual for the specific unit before cutting any wall opening.
How far can the line set run down the exterior to the outdoor condenser?
An upstairs or attic install routes the line set down, not up. Every manufacturer caps how far it can run before oil stops returning reliably to the compressor. A basement install checks the same limit in the other direction.
| Model | Max height difference | Max total line length |
|---|---|---|
| Zone Air DIY 9k / 12k✓ | 33 ft (10 m) | 50 ft (15 m) |
| MRCOOL DIY 12k 5th Gen✓ | 49.2 ft (15 m) | 75 ft (22.9 m) |
| Mitsubishi MSZ-FX12NL✓ | 40 ft (12 m) | 65 ft (20 m) |
| All figures verified Aug 2026 · How we verify | ||
A second-story or attic run rarely approaches any of these limits on its own[4][5][6]. A long horizontal run to reach a specific corner of the house is more likely to matter than the vertical drop.
Does an upstairs or attic install need a condensate pump?
Usually not, and that is the opposite of a basement install. An upstairs room next to an exterior wall can gravity-drain the same way any above-grade room does, the same pattern the mini split for a bedroom and mini split for a shed guides cover.
When a pump enters the picture
An interior knee-wall or attic-closet placement far from any exterior wall is the case that does need a condensate pump, the same logic the mini split for a basement guide covers for a below-grade install. Confirm the drain path before assuming either answer.
Can I DIY an attic or upstairs mini split myself?
Only on the models that skip the vacuum pump. Height in the house does not change that check.
Where DIY ends: refrigerant
Flaring copper, pressure-testing the lines, and pulling a vacuum to a verified micron reading is refrigerant work, upstairs the same as anywhere else. MRCOOL DIY and Zone Air ship pre-charged quick-connect line sets that skip this step entirely[7][8]. Every vacuum-required brand still needs it. A licensed HVAC technician does this work.
- MRCOOL and Zone Air: true-DIY, no vacuum pump, warranty stays intact on a DIY install.
- Senville, including its 115V Leto: vacuum-required. Its own product page states professional installation is required to keep the warranty, regardless of voltage[9].
- Mitsubishi: pro-install-only. DIY installation voids the warranty on premium brands like this one[10].
One head for a bonus room, or multi-zone for the whole upstairs?
It depends on how many rooms upstairs actually need coverage at once. One finished bonus room over a garage is a single-zone decision like any other room in this cluster. A whole upstairs is different: several bedrooms and a hallway share the same stack-effect and roof-deck load, a multi-zone question the mini split for multiple rooms guide covers in full, including the shared cold-climate ceiling one outdoor unit carries. Start there once more than one upstairs room is in scope.
Sanity check your attic or upstairs setup
Work these four checks in order before buying equipment.
- Run the room’s real ceiling height through the sizing calculator. A vaulted or sloped ceiling adds real air volume; do not size from a flat 8-foot assumption.
- Confirm the attic’s insulation level, or the level behind a finished knee wall, before assuming the room’s own square footage tells the whole story.
- Check clearance before choosing a mounting wall. A knee wall too short to clear roughly 6 inches on top and each side, with 7 feet to the floor, is not a mounting point.
- Confirm the drain path. Most upstairs rooms gravity-drain; an interior placement far from an exterior wall is the exception that needs a pump.
A true-DIY 115V model, mounted where clearance is confirmed and sized to the room’s real ceiling height, is usually the simplest attic or upstairs build. Our DIY mini split installation guide covers the tool list and where DIY ends either way.
Quick answers
Why does my upstairs room run hotter than downstairs?
Warm air rises and collects near the ceiling, and a roof deck directly above an upstairs room absorbs solar heat with no buffering attic space between them. An under-insulated attic makes both effects worse: ENERGY STAR recommends R49 to R60 of attic insulation depending on climate zone[2], and an attic below that level passes more heat straight into the room.
Does a sloped or vaulted ceiling change what size mini split I need?
Yes. A 300 ft² room at Zone 5 with average insulation screens to about 8,500 BTU of heat at 5°F with a flat 8-foot ceiling, versus about 11,000 BTU at a 12-foot vaulted ceiling. Run your room’s real ceiling height through the sizing calculator rather than assuming a flat-ceiling number.
Where can I mount the indoor unit under a sloped ceiling?
Only where clearance allows it. MRCOOL’s general installation guidance calls for at least 6 inches above the unit and on each side, with the bottom of the unit at least 7 feet above the floor[3]. A knee wall short enough to lose that clearance is not a mounting point.
Does an attic or upstairs mini split need a condensate pump?
Usually not. Most upstairs rooms sit next to an exterior wall and gravity-drain the same as any above-grade room, the opposite of a basement install. A pump only enters the picture for an interior knee-wall or attic-closet placement far from an exterior wall.
How far can the line set run down to the outdoor condenser?
It depends on the model. Zone Air’s 9k and 12k DIY line allows up to 33 ft (10 m) of height difference; MRCOOL’s DIY 12k allows 49.2 ft (15 m); Mitsubishi’s MSZ-FX12NL allows 40 ft (12 m). A typical second-story or attic drop sits well under any of these limits.
Should I put one mini split in a bonus room, or cover the whole upstairs?
One head per finished room is a single-zone decision like any other room in this cluster. Covering several upstairs rooms from one outdoor condenser is a multi-zone question instead, with its own shared cold-climate ceiling and per-room load math covered in the mini split for multiple rooms guide.
