Mini split for multiple rooms: multi-zone vs. separate units
30-second answer
A mini split for multiple rooms comes down to one choice: one multi-zone condenser, or several single-zone systems. The deciding factor is each room’s own heat load, not total square footage. A 4-zone MRCOOL DIY condenser holds 18,200 BTU of its 26,000 BTU rating at 5°F. Its lines install without a vacuum pump. A comparable Senville multi-zone condenser needs flare fittings and a vacuum pump instead, the same as any vacuum-required brand. One condenser wins on wall clutter and panel simplicity. Several systems win when one outdoor unit going down should not cost you the whole house.

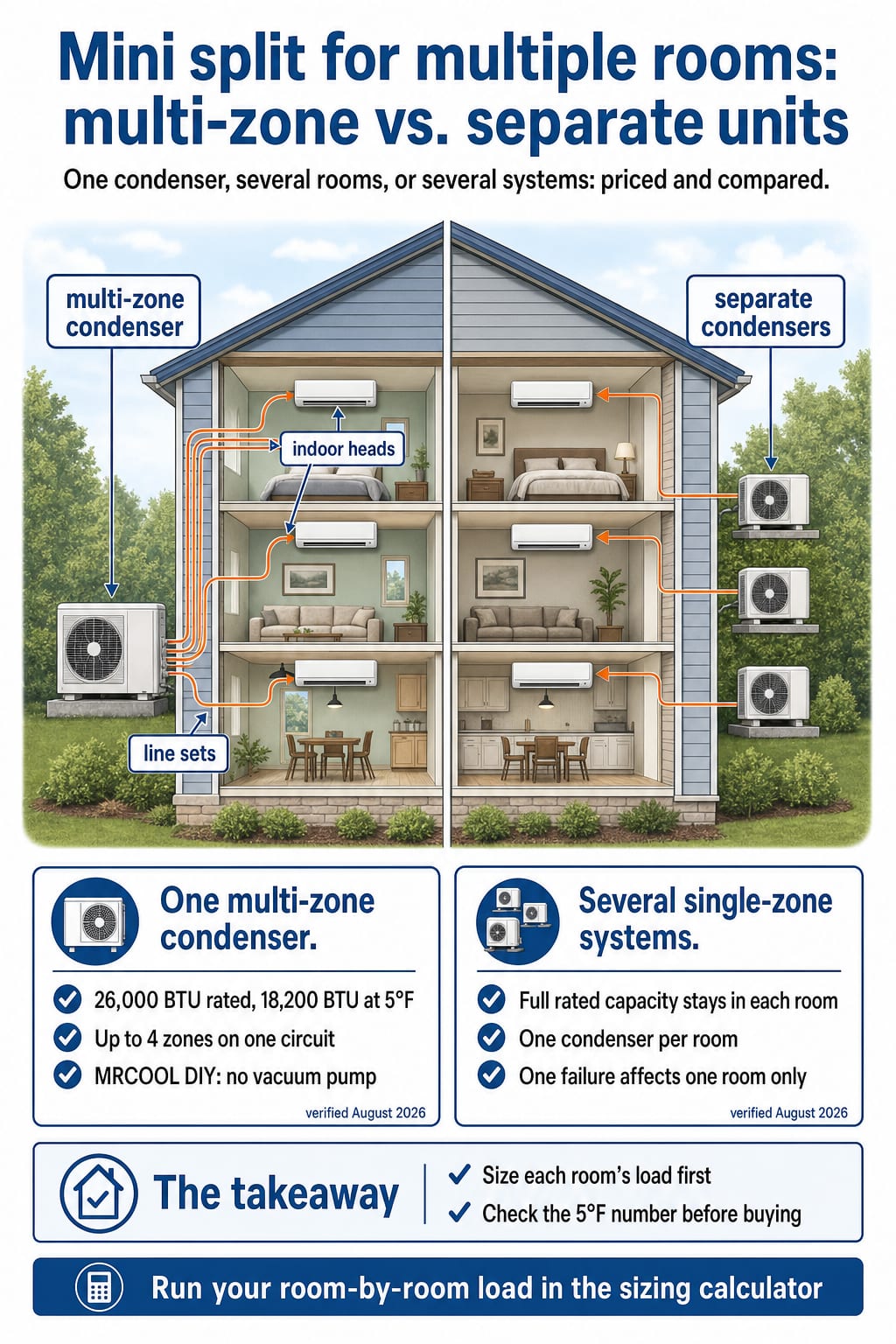

One condenser or several: the decision at a glance
A multi-zone condenser and several single-zone systems solve the same problem. They fail differently. They install differently. They price differently, too.
The MRCOOL DIY 5th Gen Multi-Zone 4-Zone condenser (DIY-MULTI4-27HP230D-O) is rated 26,000 BTU/h of cooling and heating. It supports up to 4 zones on one 208-230V circuit[1]. Four separate single-zone systems would instead be four outdoor units, four circuits, and four independent failure points.
| Decision factor | One multi-zone condenser | Several single-zone systems |
|---|---|---|
| DIY feasibility✓ | True-DIY only on MRCOOL DIY/Zone Air lines; Senville and Pioneer multi-zone are vacuum-required | Each unit is its own tier; mix true-DIY and vacuum-required freely |
| Electrical✓ | One 208-230V circuit, 23-30A minimum ampacity on the models checked here | One circuit per outdoor unit, sized to each unit’s own nameplate |
| Single point of failure✓ | Yes: one condenser down can take every connected room with it | No: one unit’s failure affects only its own room |
| Line-set run✓ | One longer, branched run from one pad; more oil-trap risk on badly routed branches | Shorter individual runs, more wall penetrations overall |
| Cold-climate capacity✓ | Shared: total output caps out even if every room calls for heat at once | Each unit keeps its own full rated capacity regardless of the others |
| All figures verified Aug 2026 · How we verify | ||
Neither column is the universal right answer. The next sections work through each factor with real numbers.
Do I size a multi-zone system by adding up square footage?
No. Multi-zone sizing is per-room load, added together. It is never whole-house square footage divided by the number of heads.
A 450 ft² garage and a 300 ft² sunroom do not average into two 375 ft² rooms just because they share a condenser.
- Run each room through the sizing calculator on its own. Use that room’s own insulation, ceiling height, and climate zone, the same way you would for a single-zone job, then sum the results.
- Sum-of-heads is a starting point, not the spec. Add each room’s own heating and cooling load first.
- The condenser is sized to realistic simultaneous demand. It is not sized to every head running at maximum at once. Manufacturers rate the outdoor unit’s total capacity, not each port’s nameplate added up.
- Above 1,400 ft² or 36,000 BTU total, rule-of-thumb sizing stops being safe. A Manual J load calculation takes over instead[2], the same bound the sizing chart uses.
The what size mini split hub covers the per-room load math in full. What changes here is what happens once several of those loads share one outdoor unit.
Will one condenser short-cycle if only one room calls for heat?
That risk is real. It is exactly what a condenser’s turndown ratio exists to prevent. Turndown ratio is how far a compressor can throttle down from its max output at a given outdoor temperature; a wider ratio means the condenser can hold a low, steady output for one small room, instead of hitting setpoint fast and shutting off.
- The Senville SENA-28HF-MOA multi-zone condenser publishes a turndown ratio of 3.21 at 5°F.
- The MRCOOL DIY 5th Gen Multi-Zone 4-Zone condenser publishes 2.17 at that same temperature[3].
A narrower turndown ratio is not disqualifying. It just means less room to idle down for one small zone on a mild day. Oversizing the condenser for “future zones” you have not added yet makes this worse. That is the same short-cycling penalty the sizing hub covers for single-zone units, just shared across more rooms.
Can I install a multi-zone mini split myself?
Only on a true quick-connect multi-zone line. Today that means MRCOOL DIY. MRCOOL’s 5th Gen Multi-Zone condensers install with patented Quick Connect line sets, pre-charged with R-454B.
The manufacturer’s own documentation describes the install as “without vacuum pump or gauges”[4]. That is the whole true-DIY multi-zone tier.
- Every vacuum-required single-zone brand stays vacuum-required in its multi-zone form too.
- The Senville SENA-28HF-MOA multi-zone condenser connects with flare fittings. A wrench torques each one to the manufacturer’s value. Then a vacuum pump and manifold gauge evacuate the lines to -76 cmHg before the factory charge is released[5].
- Senville’s own product page states that professional installation is required to keep this line’s warranty intact[6].
- Pioneer’s multi-zone condensers follow the same flare-and-vacuum pattern as its single-zone WYS line. Never call a vacuum-required multi-zone system DIY-easy just because the lines ship pre-charged.
Where DIY ends: refrigerant
Flaring copper, pressure-testing the lines, and pulling a vacuum to a verified micron reading is refrigerant work. That holds on every vacuum-required condenser, multi-zone or not. This is where DIY ends for most people, on every zone the condenser serves.
A licensed HVAC technician does this work. We describe it here so you can judge a quote, not so you can skip one.
A quick-connect multi-zone install still multiplies the carpentry. One wall bracket, one penetration, and one line-set run, per room, even though the refrigerant circuit itself is never opened. Coil any excess line set in horizontal loops. Never stack it vertically; that traps oil, the same rule that applies to a single long run.
What happens if the condenser fails? Failure modes, compared
A shared condenser and separate condensers fail differently. That difference is the real tradeoff behind “one or several.” One multi-zone condenser going down takes every room it serves with it, all at once, often on the day you need heat or cooling most. Several single-zone systems fail one room at a time instead.
- Multi-zone: one compressor, one point of failure. Also just one unit to service, one warranty claim, and one panel breaker to maintain.
- Multi-zone: the branched line-set run is longer in total. The MRCOOL 4-Zone condenser allows up to 221.4 ft combined across all 4 zones[1]. More total joints means more places a rushed install can leave an oil trap in a badly sloped run.
- Several single-zones: more outdoor units, more wall penetrations, and more total load on the electrical panel. But a bad flare on one unit never touches the others.
Neither path removes the failure mode. Each one just relocates it. A whole-home buyer who cannot tolerate losing every room at once should weigh that against the convenience of one outdoor unit.
Do I need an electrician? Can my panel handle a multi-zone condenser?
Yes, on every multi-zone condenser checked here.
- The MRCOOL DIY 4-Zone condenser draws a 25A maximum breaker on a 23A minimum-ampacity 208-230V circuit.
- The Senville SENA-28HF-MOA draws a larger 35A maximum breaker on a 30A minimum-ampacity 208/230V circuit instead[6].
Both are still just one circuit, no matter the zone count. That is one real advantage over separate systems: one electrician visit instead of several.
Where DIY ends: 240V
Adding or modifying a 240V circuit for a multi-zone condenser is panel work. A multi-zone unit often asks for a larger breaker than a single-zone unit does. Breaker sizing, wire gauge, and whether your panel has spare capacity belong with a licensed electrician working from the model’s own nameplate. Permits belong with your local building department.
Several single-zone systems trade one larger circuit for several smaller ones, one per outdoor unit, each sized to that unit’s own nameplate. A panel with no spare 240V capacity at all rules out both paths equally. Get the electrician’s read on spare capacity before pricing equipment.
Is one multi-zone system cheaper than several single-zone units?
It depends on the zone count. The two paths are not priced the same way, either. A multi-zone condenser is one equipment line plus one install. Several single-zone systems are that same install cost, repeated per room.
| Zones | HomeGuide rangeinstalled | This Old House rangeinstalled |
|---|---|---|
| 1 (one single-zone system)✓ | $2,500 – $6,000 | — |
| 2✓ | $4,500 – $8,000 | $1,400 – $7,700 |
| 3✓ | $6,500 – $11,000 | $1,800 – $9,100 |
| 4✓ | — | $2,600 – $10,700 |
| All figures verified Aug 2026 · How we verify | ||
The two guides disagree, sometimes by thousands of dollars at the low end. So both ranges are published here, not averaged[7][8]. Neither range is a quote for your house. Both are national spreads that move with your region, your line-set run, and your electrical work.
For separate single-zone systems in multiple rooms, the honest baseline is the same guide’s single-zone figure, repeated per room. HomeGuide prices one complete single-zone system, one compressor and one indoor unit, at $2,500-$6,000 installed. Multiply that by however many rooms you are conditioning. Then compare the total against the matching multi-zone row above.
On equipment alone, the two paths are not apples-to-apples either.
- The MRCOOL DIY 4-Zone condenser lists at $2,100 on sale ($2,625 regular), condenser only. Indoor heads and line sets are priced separately[9].
- Senville’s SENA-30HF/D two-zone kit lists at $2,499.99 direct from Senville. That price already bundles the condenser, two 12,000 BTU indoor heads, and their line sets[6].
Check what is actually included before comparing two prices that just look close.
Will a multi-zone system keep up when every room calls for heat at 0°F?
Not necessarily. This is the cold-climate catch that is specific to sharing one condenser. A multi-zone condenser’s rated capacity is a shared ceiling, not a per-room allowance.
The MRCOOL DIY 4-Zone condenser is rated 26,000 BTU/h at 47°F. It holds only 18,200 BTU/h at 5°F, a 30% derate shared across every zone it serves[3]. If all 4 rooms call for heat on the same 5°F night, they split 18,200 BTU between them. They do not draw 26,000 BTU divided four ways.
The Senville SENA-28HF-MOA holds its full 27,000 BTU/h rating at 5°F on its own NEEP entry, a stronger cold-climate result than the MRCOOL figure[3]. That gap is a model difference, not a brand-wide promise. Check the exact condenser’s own 5°F number before buying for a cold climate. The same rule holds for any single-zone unit.
- Single-zone systems do not share this ceiling. Each unit keeps its own full rated capacity at 5°F, no matter what the others are doing.
- Size a cold-climate multi-zone condenser to simultaneous winter load. Not to the warmest-day sum of every room’s cooling need.
- The sizing hub’s 5°F table shows the same derate pattern on single-zone units. Multi-zone just adds the shared-ceiling wrinkle on top.
Does a mini split work for a whole house with no ducts?
Sometimes, and the answer is a zone count plus a Manual J calculation, not a single unit. MRCOOL’s current DIY Multi-Zone lineup starts at a 3-zone, 18,000 BTU condenser, good for up to 750 ft² on a 20A breaker. It runs up to a 6-zone, 55,000 BTU condenser, good for up to 2,290 ft² on a 45A breaker[4]. A no-ductwork retrofit of a whole house is a real use case for that top end of the lineup, or for several multi-zone condensers split by floor or wing.
Whole-home ductless conversions push every factor in this guide at once: more zones sharing one cold-climate ceiling, a longer combined line-set run, and a single circuit sized to the largest condenser you buy. Past 1,400 ft² total or 36,000 BTU of combined load, this stops being a rule-of-thumb job. Get a Manual J load calculation from an HVAC contractor before committing to a zone count[2].
Sanity check your setup: the multi-zone decision path
Work these four questions in order, before you buy equipment.
- List every room and its own load, from the sizing calculator, not from square footage divided by room count. A garage and a bedroom never share a load just because they share a hallway.
- Add the loads. Check the cold-climate ceiling. If every room might call for heat at once on your coldest design night, compare that sum against the condenser’s own 5°F number, not its 47°F nameplate.
- Decide your failure tolerance. If losing every zone at once on a bad day is not acceptable, price separate systems for the rooms that matter most instead.
- Price the electrical and the install path together. A true-DIY multi-zone condenser still needs one properly sized 240V circuit. A vacuum-required one needs that circuit, plus a licensed HVAC technician, for every zone.
If a single condenser clears all four, it is usually the simpler build. Our DIY mini split installation guide covers the tool list and where DIY ends, for either path.
Quick answers
What size mini split do I need for a whole house?
There is no single number. Whole-house sizing is each room’s own load, added together, then checked against a Manual J calculation past 1,400 ft² or 36,000 BTU combined[2]. Run each room through the sizing calculator separately rather than dividing square footage by room count.
Is a multi-zone mini split cheaper than several single-zone units?
It depends on the zone count. Published national ranges for a 2-zone installed system run $1,400 to $8,000 in one cost guide and $4,500 to $8,000 in another, while a single-zone system installed on its own runs $2,500 to $6,000[7][8]. Price both paths for your actual room count before assuming either one wins.
Will a multi-zone system heat every room at once when it’s freezing?
Only up to the condenser’s own 5°F rating, which is a shared ceiling across every connected room, not a per-room allowance. One verified 4-zone condenser holds 18,200 of its 26,000 BTU rating at 5°F; another holds its full rating instead[3]. Check the exact model’s 5°F number before sizing for a cold climate.
Do I need an electrician for a multi-zone mini split?
Yes. The multi-zone condensers checked here draw a single 208-230V circuit with a 25A to 35A maximum breaker, larger than most single-zone units[1][6]. Breaker sizing and whether your panel has spare 240V capacity belong with a licensed electrician working from the model’s nameplate.
Is a Senville or Pioneer multi-zone system DIY-easy since it’s pre-charged?
No. “Pre-charged” on these brands just means the refrigerant ships in the outdoor unit, not that the lines skip flaring and a vacuum pump. Senville’s multi-zone installation manual documents flare fittings and evacuation to -76 cmHg for its condensers[5], and its own product page states professional installation is required to keep the warranty.
What happens if the outdoor condenser fails on a multi-zone system?
Every room it serves loses heating and cooling at once, since one compressor drives every connected head. That single point of failure is the real cost of sharing one outdoor unit. Several separate single-zone systems avoid it, since one unit’s failure never reaches the others.
