Mini split for basement: humidity, condensate, DIY
30-second answer
A basement mini split is a humidity question first. It is a heating question second. The MRCOOL DIY 12k holds 8,400 of its 12,000 BTU rating at 5°F, the number that matters for a cold basement floor in winter[1]. Below grade, the surrounding earth moderates the room’s temperature swings. It does nothing for humidity. Most below-grade heads also cannot gravity-drain their condensate. A condensate pump is standard equipment down here, not an accessory, and its failure mode is water on the floor.
Why is a basement’s load different from an upstairs room?
Ground-moderated temperature is the basement’s real advantage. Below-grade walls sit against soil that holds a steadier temperature than outdoor air. That keeps a basement’s sensible cooling load lower than an above-grade room of the same size, most of the time. Humidity does not get that same break.
- Sensible load (temperature) moderates with depth. The deeper a wall sits below grade, the less it tracks the outdoor swing.
- Latent load (humidity) does not moderate the same way. It comes from the concrete itself, from groundwater migration, and from a basement’s naturally lower ventilation rate. None of that depends on outdoor temperature.
- A mini split’s dry mode and dehumidification capacity become the differentiator, not just its BTU rating. Two models can screen to the same cooling class and still handle basement humidity very differently.
| Model | Install tier | Moisture removal |
|---|---|---|
| Mitsubishi MSZ-FX12NL✓ | Pro-install-only, DIY voids warranty | 1.3 pints/h |
| Senville Leto SENL-12CD✓ | Vacuum-required | 1.4 L/h (about 3.0 pints/h) |
| All figures verified Aug 2026 · How we verify | ||
Neither MRCOOL nor Zone Air publishes a moisture-removal figure for its DIY line, in their product pages or their full installation manuals. That gap is stated here rather than guessed. Every mini split dehumidifies as a byproduct of cooling. A true-DIY model still pulls moisture out of a basement; it just carries no published number to compare against the two above.

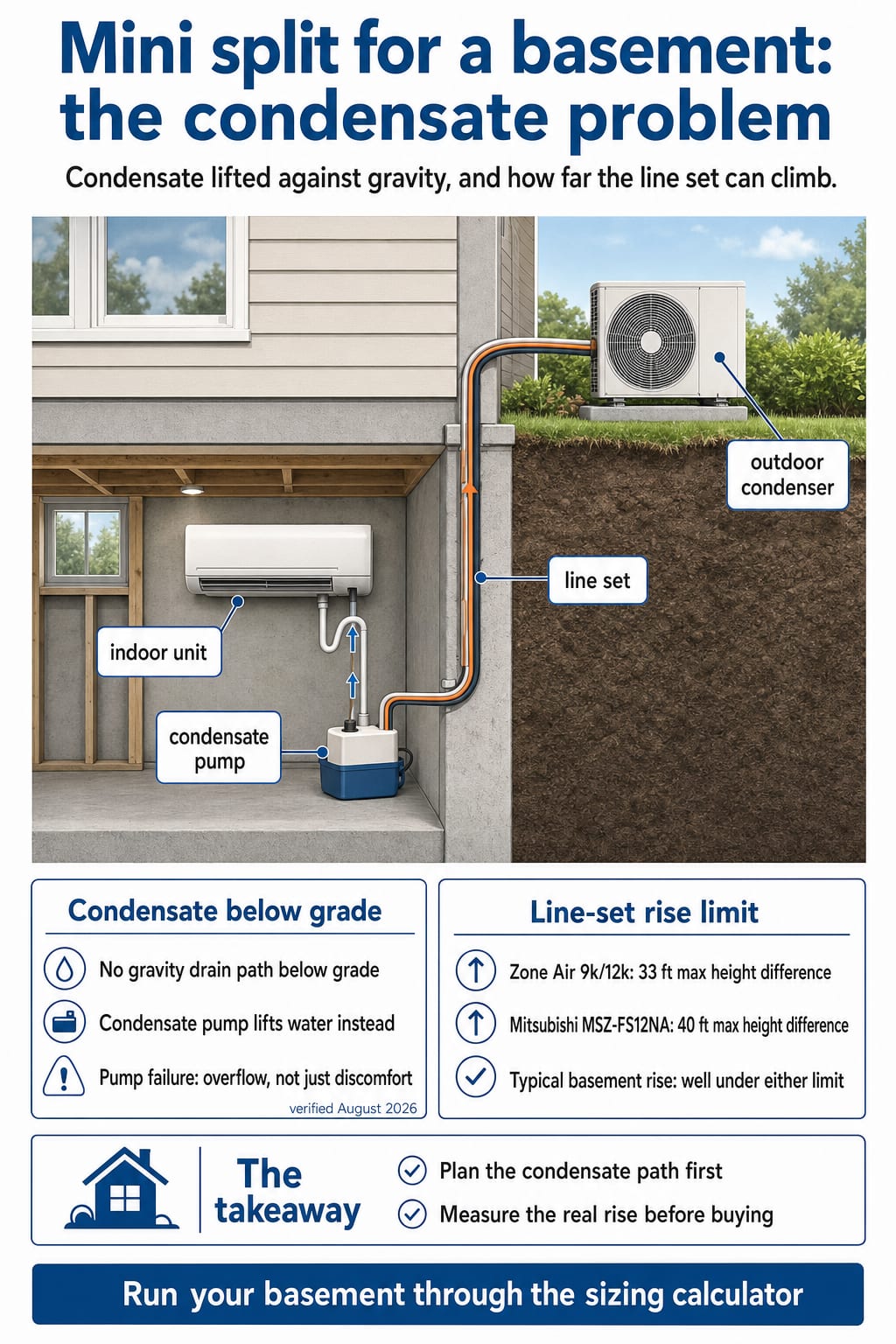

Condensate is the basement-specific failure mode
Above grade, condensate usually drains downhill through a wall and out onto the ground. Below grade, that path often does not exist. The indoor unit sits lower than any convenient discharge point outside. The water has nowhere to fall to.
- A condensate pump lifts the water instead of relying on gravity. It becomes standard equipment on most basement installs, not an upgrade.
- The pump is a mechanical part with its own failure mode. When it dies, the drain pan overflows instead of draining.
- A basement is exactly the room where that failure goes unnoticed longest. Fewer people check a basement daily than they check a living room. A slow overflow can run for days before anyone sees it.
- A float switch or safety pan wired to shut the unit down on high water is the standard mitigation. It is the same logic as the switch under a water heater.
Check the pump before every heavy-use season, the same way you would check a sump pump. A condensate pump that has never been tested is not a known quantity.
How far can the line set climb to reach the outdoor condenser?

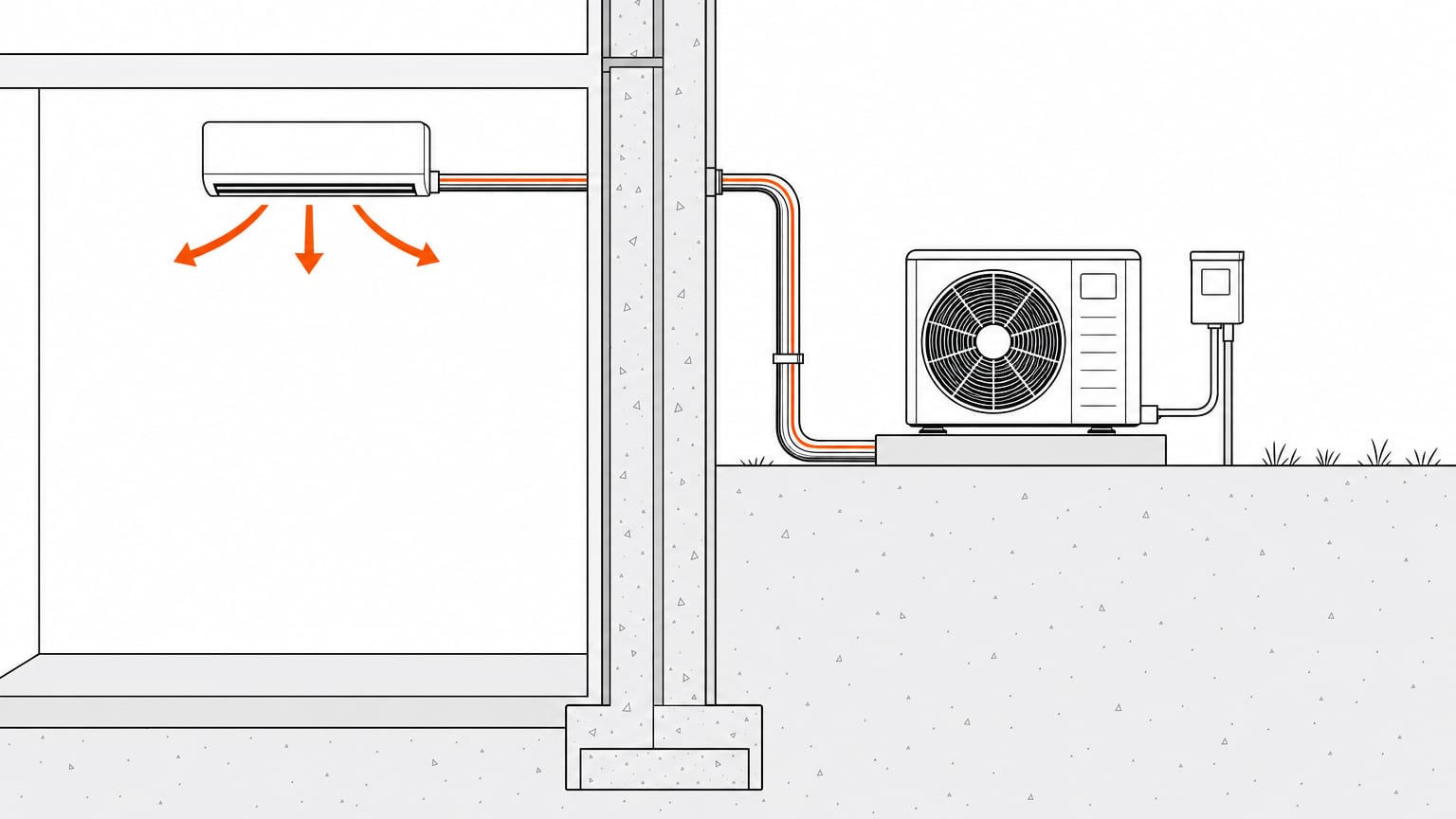

A basement install routes the line set up, not across. The outdoor condenser sits at grade, above the indoor unit. Every manufacturer caps how far that line set can rise before oil stops returning reliably to the compressor.
| Model | Max height difference | Max total line length |
|---|---|---|
| Zone Air DIY 9k/12k✓ | 33 ft (10 m) | 50 ft (15 m) |
| Mitsubishi MSZ-FX12NL✓ | 40 ft (12 m) | 65 ft (20 m) |
| MRCOOL DIY 12k 5th Gen✓ | 49.2 ft (15 m) | 75 ft (22.9 m) |
| All figures verified Aug 2026 · How we verify | ||
MRCOOL’s installation manual[2] publishes both figures for its 9k/12k class: 49.2 ft (15 m) maximum elevation and 75 ft (22.9 m) maximum pipe length, a tighter length than the 82 ft figure on its product support page[3]. This guide uses the install manual’s own line-set table, since it is the document that also states the elevation limit.
Senville’s Leto SENL-12CD still publishes neither figure. Its current installation manual carries a length and elevation table, but that table is written for the outgoing R410A refrigerant, not the R454B charge the SENL-12CD ships with today, so its numbers do not apply to this model. That gap is stated here rather than guessed.
- A typical basement-to-grade rise is modest. It often runs under 10 ft from a below-grade head to a pad at ground level, well inside every published limit above.
- A daylight or walkout basement on a slope is where the rise limit starts to matter. So does a condenser placed far from the foundation. Measure the real run before assuming any model clears it.
- Coil excess line set in horizontal loops. Never stack it vertically. A vertical stack traps compressor oil the same way an oversized single rise does. That rule holds on every brand, not just the ones with a published height-difference spec.
Run the exact vertical distance and total length before ordering equipment. The DIY mini split installation guide covers that same discipline for any long or awkward run.
Can I DIY a basement mini split myself?
Only on the models that skip the vacuum pump. That check does not change below grade. A basement adds two install conditions that do not exist above grade: a rim-joist penetration instead of a wall penetration, and a condensate pump wired into the circuit.
Where DIY ends: refrigerant
Flaring copper, pressure-testing the lines, and pulling a vacuum to a verified micron reading is refrigerant work, in a basement or anywhere else. MRCOOL DIY and Zone Air ship pre-charged quick-connect line sets that skip this step entirely[4]. Every vacuum-required brand still needs it. A licensed HVAC technician does this work.
Where DIY ends: 240V
Basement panels are often older, or already near capacity from a sump pump or a finished-basement sub-panel. Adding or modifying a 240V circuit is panel work either way. Breaker sizing, wire gauge, and the disconnect belong with a licensed electrician working from the model’s nameplate.
| Model | Voltage | Breaker | DIY install voids warranty? |
|---|---|---|---|
| MRCOOL DIY 12k 5th Gen✓ | 115V | 20A max, 18A min circuit ampacity | No |
| Zone Air DIY 9k/12k✓ | 110-120V | 15A single-pole | No |
| Senville Leto SENL-12CD✓ | 115V | 20A max fuse, 19A min circuit ampacity | Yes |
| Mitsubishi MSZ-FX12NL✓ | 208/230V | 15A max, 14 AWG wire | Yes |
| All figures verified Aug 2026 · How we verify | |||
- MRCOOL and Zone Air: true-DIY, no vacuum pump, warranty stays intact on a DIY install, in a basement or anywhere else.
- Senville, including its 115V Leto: vacuum-required, and its own product page states professional installation is required to keep the warranty.
- Mitsubishi: pro-install-only. Its warranty statement applies only to systems a licensed HVAC contractor installs[5].
Never call a vacuum-required system “DIY-easy” just because the install happens to be indoors.
Finished or unfinished basement: what actually changes?
The penetration path changes more than the room finish does. An unfinished basement usually has an exposed rim joist, the band of framing between the foundation wall and the floor above. It is a common, simple place to route a line set straight out to grade.
- A finished basement often buries that rim joist behind drywall. The penetration point has to be planned before the wall goes up, or opened back up after the fact.
- A rim-joist penetration is not the same hole as an above-grade wall penetration. It usually passes through more framing depth, closer to the sill plate and foundation sealant. Sealing it against air and water intrusion matters more here, not less.
- Insulation behind a finished basement wall changes the load calculation. Run the room through the sizing calculator with the wall’s actual insulation value, not the bare-concrete assumption an unfinished basement would use.
Either way, the what size mini split hub covers the full load-factor math. This guide is what changes once the room sits below grade.
Sanity check your basement setup
Work these four checks in order before buying equipment.
- Confirm where the condensate will actually go. Decide whether a condensate pump with a float-switch shutoff is part of the plan, not an afterthought discovered mid-install.
- Measure the real vertical rise and total line-set length, from the planned indoor location to the planned outdoor pad. Check it against the model’s own published limits above.
- Check dehumidification capacity if basement humidity is the driving complaint, not just the BTU class from a square-footage chart.
- Confirm the true-DIY tier before assuming a rim-joist penetration is simpler than a wall penetration. The refrigerant-handling line does not move just because the hole sits lower.
A true-DIY model that clears the load, with the condensate path solved before the first wall opens, is usually the simplest basement build. Our DIY mini split installation guide covers the tool list and where DIY ends either way.
Quick answers
Will a mini split in my basement cause water damage?
Only if the condensate path fails. Most below-grade heads cannot gravity-drain, so a condensate pump lifts the water instead. If that pump dies, the drain pan overflows near the unit. A float switch wired to shut the system down on high water is the standard mitigation, the same logic as the switch under a water heater.
Does a basement mini split need to dehumidify more than upstairs?
Its latent, or humidity, load usually matters more relative to its temperature load than an above-grade room’s does. Below-grade walls moderate temperature swings but do nothing for basement humidity. The Mitsubishi MSZ-FX12NL removes 1.3 pints of moisture per hour; the Senville Leto SENL-12CD removes 1.4 L/h, about 3.0 pints/h, at each model’s own rated cooling conditions[6].
How far can the line set run from a basement to the outdoor unit?
It depends on the model. Zone Air’s 9k and 12k DIY line allows up to 33 ft (10 m) of height difference and 50 ft (15 m) of total line length; MRCOOL’s DIY 12k allows 49.2 ft (15 m) and 75 ft (22.9 m) for its 9k/12k class; Mitsubishi’s MSZ-FX12NL allows 40 ft (12 m) and 65 ft (20 m)[7]. A typical basement-to-grade rise sits well under any of these limits; a walkout basement on a slope is where it can start to matter.
Will DIY install void my warranty on a basement mini split?
On MRCOOL and Zone Air, no. DIY install keeps the warranty intact regardless of room. On Senville, yes: its own product page states professional installation is required, even on its 115V Leto model. On Mitsubishi, yes: its warranty statement covers only systems a licensed HVAC contractor installs[5].
Do I need an electrician for a basement mini split?
Sometimes a true-DIY 115V model can run on an existing dedicated circuit. But basement panels are often older, or already near capacity from a sump pump or a finished-basement sub-panel. Adding or modifying a 240V circuit is panel work, and panel work is where DIY ends for most people, whichever room the line runs to.
Where does the line set go through the wall in a finished basement?
Usually through the rim joist, the band of framing between the foundation wall and the floor above, rather than a mid-wall penetration. A finished basement often buries that band behind drywall, so the penetration point has to be planned before the wall goes up, or opened back up afterward.
Sources
- NEEP Cold-Climate Air-Source Heat Pump directory entry: MRCOOL DIY 12k 5th Gen (DIY-12-HP-C-115D25-O), accessed August 2026
- MRCOOL DIY 5th Gen Single Zone Installation & User Manual, accessed August 2026
- MRCOOL product documentation, DIY 12k 5th Gen Condenser - 115v support page, accessed August 2026
- Zone Air Wall Mount DIY Series Installation & User Manual, accessed August 2026
- Mitsubishi Electric Trane HVAC US Residential M-Series/P-Series/SMART MULTI Limited Warranty Statement, accessed August 2026
- Senville manufacturer product page, 12000 BTU Mini Split Air Conditioner - Heat Pump - SENL/12CD/110V, accessed August 2026
- Mitsubishi Electric Trane HVAC US LLC system submittal, SPECIFICATIONS: MSZ-FX12NL & MUZ-FX12NLHZ, accessed August 2026
Spec verification process: how we verify specs and prices. Found an error? See the corrections policy on that page.
