Ductless heating and cooling, explained
30-second answer
Ductless heating and cooling means one wall head and one outdoor unit, doing both jobs through the same refrigerant loop. No ducts anywhere. A reversing valve flips which coil absorbs heat and which one releases it. That is why the MRCOOL DIY 5th Gen 18k carries an identical 18,000 BTU/h rating for cooling and for heating[1]. It still delivers 12,800 BTU/h of that heating at 5°F[2]. Only two brands, MRCOOL and Zone Air, install without a vacuum pump. Every other brand here needs a licensed HVAC contractor, whatever a “pre-charged” listing implies.
What does “ductless” actually mean, and what isn’t it?
Ductless means the whole air-handling system lives in the room it conditions. No network of ducts carries air from a central handler. The U.S. Department of Energy lists mini-splits among the heat pump types built for exactly this job[3].

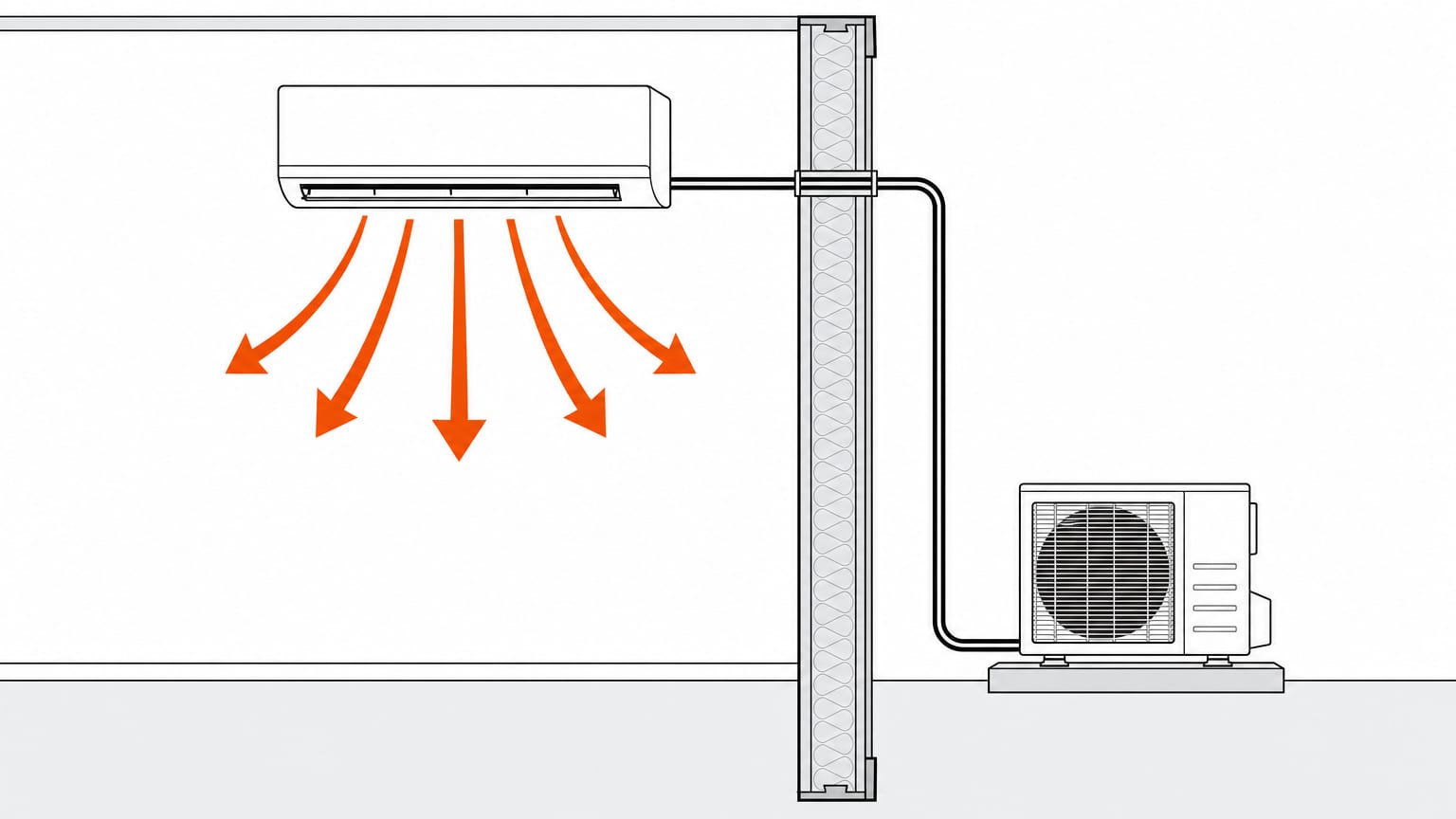

A mini-split heat pump is the specific ductless product this guide covers: one or more wall heads, connected by a line set through a single wall penetration to one outdoor unit[1]. Two other products get called “ductless” loosely, and they are not the same purchase.
- A ducted mini split hides its indoor unit above a ceiling or in a closet. It distributes air through a short duct run to one or two registers in the same zone, still with no central ductwork network, but a different product than the wall heads this guide compares.
- A PTAC (packaged terminal air conditioner) is a single box that sits through an exterior wall, common in hotel rooms and additions. The whole refrigerant loop packs inside that one unit, with no separate outdoor condenser.
- A window unit is that same single-package idea in a window frame. It runs its refrigerant loop in one direction only, cooling.
The what is a mini split guide covers the split-system parts in more depth. This page covers the buying decision across all three install tiers.
How does one system heat and cool?
A reversing valve in the outdoor unit decides which coil absorbs heat and which one releases it. That one part does the same job whether the unit is an $840 budget model or a $3,500 premium one. In cooling mode the indoor coil absorbs heat from the room. In heating mode the valve flips the flow, and the indoor coil releases heat instead[1].
Our how a mini split heat pump works post walks the full refrigerant loop step by step. This page stops at what that loop means for buying one.

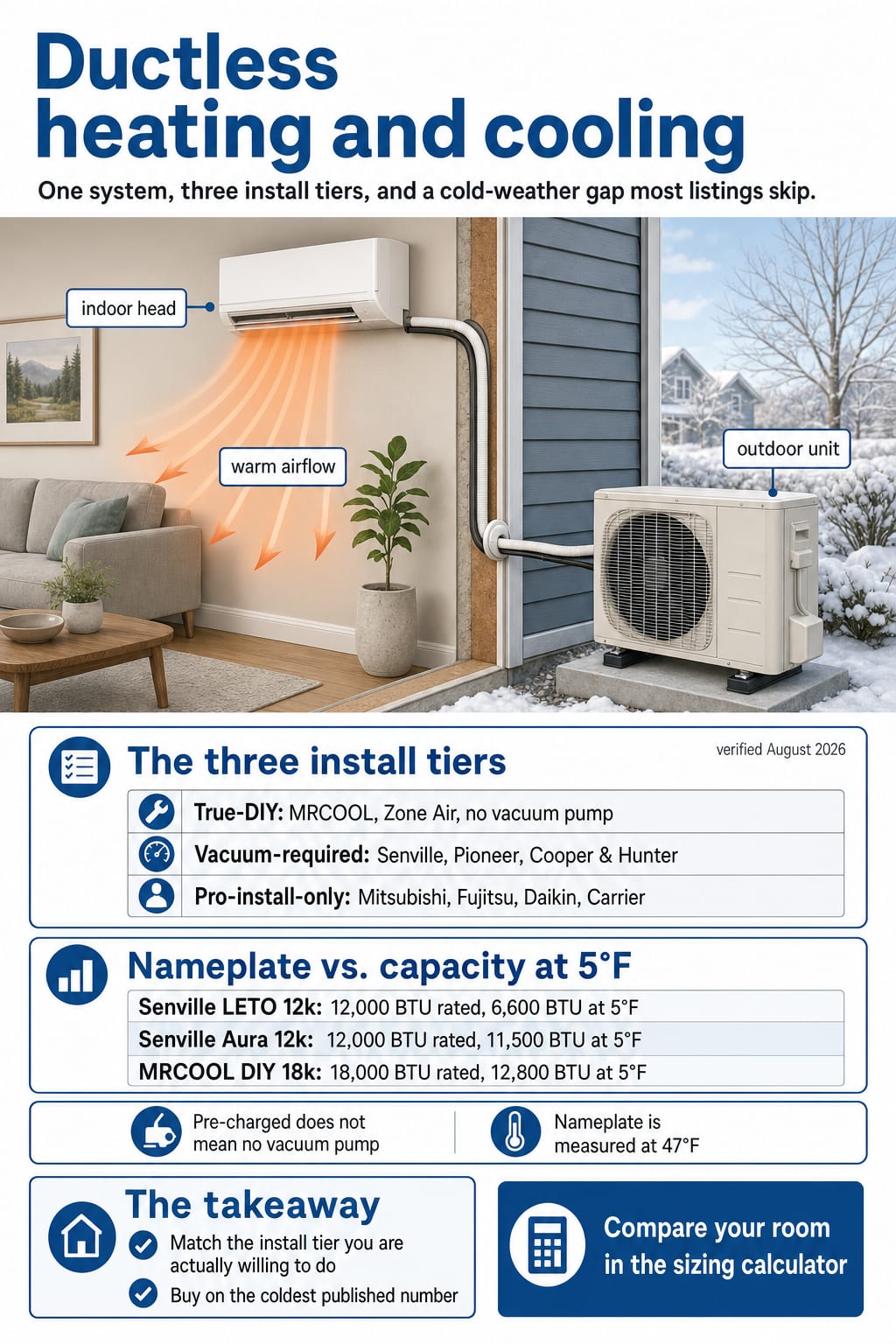

The three install tiers: which one are you actually buying?
Every mini split on the market sorts into exactly three install tiers. The tier matters more than the brand name on the box. MRCOOL and Zone Air ship true quick-connect line sets that skip the vacuum pump entirely[1][4]. Every other brand here still needs a licensed HVAC contractor to flare the lines and pull a vacuum, whatever a “pre-charged” listing implies[5][6].
| Tier | Brands | What "pre-charged" means here |
|---|---|---|
| True-DIY✓ | MRCOOL, Zone Air | Refrigerant ships in the unit AND the fittings skip flaring, no vacuum pump |
| Vacuum-required✓ | Senville, Pioneer, Cooper & Hunter | Refrigerant ships in the unit, but flare fittings still need a pulled vacuum |
| Pro-install-only✓ | Mitsubishi, Fujitsu, Daikin, Carrier | DIY install voids the warranty regardless of connection type |
| All figures verified Aug 2026 · How we verify | ||
Rebadging is common across this list, and it is worth stating plainly.
- MRCOOL is Gree-built.
- Senville and Carrier’s ductless line are Midea-built.
- Pioneer is Midea/TCL-built.
None of that changes which tier a given brand sits in.
- True-DIY: MRCOOL and Zone Air. Genuinely no vacuum pump, on any model in either line.
- Vacuum-required: Senville, Pioneer, and Cooper & Hunter. Never call these “DIY-easy.” The fittings are pre-charged; the flare work and the vacuum-down are not.
- Pro-install-only: Mitsubishi, Fujitsu, Daikin, and Carrier. Each requires a licensed contractor’s install to keep the warranty intact.
What size do you actually need?
Size by your room’s heating and cooling load, never by a square-footage rule of thumb. Our sizing calculator screens a load from your floor area, insulation, ceiling height, and climate zone. Those are the same load factors the what size mini split hub walks through room type by room type. Match a model’s verified capacity to that load, not to its 12,000 or 18,000 BTU headline number.
Will it keep up when it’s 5°F outside?
A standard-tier ductless system loses a large share of its rated heating by 5°F. A cold-climate tier holds most of it.
The Senville LETO 12k, a standard-tier model, is rated 12,000 BTU/h of heating. It holds just 6,600 BTU/h at 5°F, a 45% drop[2]. The Senville Aura 12k, the cold-climate model in the same brand’s line, holds 11,500 BTU/h of that same 12,000 BTU/h rating at that same 5°F[2].
| Model | Tier | Rated (47°F) | At 5°F |
|---|---|---|---|
| Senville LETO 12k✓ | Standard | 12,000 BTU/h | 6,600 BTU/h |
| Senville Aura 12k✓ | Cold-climate | 12,000 BTU/h | 11,500 BTU/h |
| MRCOOL DIY 5th Gen 18k✓ | Standard, larger class | 18,000 BTU/h | 12,800 BTU/h |
| All figures verified Aug 2026 · How we verify | |||
Same brand, same nameplate class, very different winters. Compare a model’s own coldest published number against your room’s load, never against the headline rating. Our do mini splits heat and cool guide covers the nameplate-vs-cold-weather gap model by model, including a −22°F figure for the Aura above.
What does ductless heating and cooling cost?
Equipment price tracks the install tier closely. True-DIY costs the most per BTU up front and saves the most in labor. Pro-install-only costs the most overall and buys a cold-climate rating plus an installer network.
The MRCOOL DIY 5th Gen 12k lists at $2,359 shipped with its line set[7]. The Senville LETO 12k lists at $839.99, with its line set sold separately[7].
| Model | Tier | Listed price | SEER2 |
|---|---|---|---|
| MRCOOL DIY 5th Gen 12k✓ | True-DIY | $2,359.00 | 23.5 |
| Zone Air 12k 115V✓ | True-DIY | $1,999.99 | 23.0 |
| Senville LETO 12k✓ | Vacuum-required | $839.99 | 21.2 |
| Pioneer WYS 12k 230V✓ | Vacuum-required | $1,063.00 | 21.4 |
| Mitsubishi FX12 hyper heat✓ | Pro-install-only | $3,474.91 | — |
| All figures verified Aug 2026 · How we verify | |||
Prices are each model’s listed price, on its retailer or manufacturer page, on the access date[6][7]. They move monthly. The shape matters more than the exact number: the true-DIY premium buys the install, and the pro-only premium buys a cold-climate rating and an installer network.
Every additional room is another head, another line set, and another wall penetration. Our mini split for multiple rooms guide covers where that math tips past a central system’s price. Our mini split vs central air guide runs the full head-to-head against a ducted system.
Two costs sit outside every equipment price. A true-DIY install still needs a mounting pad, a disconnect box, and a whip to the panel, plus a cover kit for the line set. At big-box prices those run close to $140 combined: a condenser pad at $36.94, a disconnect at $19.98, a whip at $31.00, and a line-set cover kit at $49.98[9]. A vacuum-required or pro-install-only system adds the labor and vacuum-pump time on top, priced per job by the installing contractor.
Where DIY ends: refrigerant and 240V
Flaring copper, pressure-testing the lines, and pulling a vacuum to a verified micron reading is refrigerant work. MRCOOL and Zone Air skip that step with pre-charged quick-connect line sets. Every vacuum-required and pro-install-only brand still needs it.
Adding or modifying a 240V circuit for an 18k-and-up unit is panel work. A licensed HVAC technician handles the refrigerant side; a licensed electrician handles the panel side.
Most single-zone units under about 12,000 BTU run on a 115V circuit. Larger classes typically need a 208/230V circuit instead[1]. Confirm your exact model’s nameplate before assuming either way.
Get an electrician’s quote before you order, if your panel has no spare 240V capacity. Our DIY mini split installation guide covers the full tool list per tier.
Quick answers
Is ductless heating and cooling actually pre-charged, or do I still need a vacuum pump?
Depends on the brand. MRCOOL and Zone Air ship true quick-connect fittings that skip the vacuum pump entirely[1]. Senville, Pioneer, and Cooper & Hunter also ship pre-charged. Their flare fittings still need a licensed contractor to pull a vacuum[5][6].
Will a DIY install void my warranty?
On MRCOOL and Zone Air, no. On every other brand here, yes. Senville's registration page states DIY voids coverage[5], and Mitsubishi, Fujitsu, Daikin, and Carrier all require a licensed-contractor install[8].
Will ductless heating and cooling keep up when it's 0°F outside?
Depends on the tier. A standard-tier 12k like the Senville LETO holds 6,600 of its 12,000 BTU/h rating at 5°F. A cold-climate 12k like the Senville Aura holds 11,500 of that same rating[2]. Check a model's own published number, never its nameplate.
Do I need an electrician for a ductless system?
Usually only past the smallest class. Most single-zone units under about 12,000 BTU run on 115V. Larger classes typically need a 208/230V circuit that a licensed electrician has to run or confirm[1]. Get the circuit quote before you order the unit.
What's the real difference between ductless heating and cooling and a window unit?
A window unit runs its refrigerant loop in one direction, cooling only, inside the window it serves. A ductless mini split runs the same loop in both directions through a reversing valve. The same wall head heats in winter and cools in summer[1].
Is a budget ductless brand junk, or is Reddit just full of complaints?
Troubleshooting posts outnumber happy-owner posts for every brand in this category, and that skew is real. The tiers above actually predict install-related failure risk, not product quality. The fitting connection is the most common leak point on any vacuum-required or true-DIY install, whatever the brand.
Can one ductless system serve more than one room?
Yes, with a multi-zone condenser and one indoor head per room, but each added zone is its own head, line set, and wall penetration. Our mini split for multiple rooms guide covers where that setup beats a central retrofit on price, and where it stops making sense.
Sources
- MRCOOL product documentation, DIY 5th Gen 12k and 18k condenser pages; MRCOOL DIY 5th Generation warranty page, accessed August 2026
- NEEP Cold-Climate Air-Source Heat Pump directory entries: Senville LETO SENL-12CD; Senville Aura SENA-12HF; MRCOOL DIY 5th Gen 18k, accessed August 2026
- U.S. Department of Energy, Heat Pumps overview page, accessed August 2026
- Zone Air product and price page; Zone Air warranty and returns page, accessed August 2026
- Senville product specification pages, LETO SENL-12CD and Aura SENA-12HF; Senville warranty terms and registration pages, accessed August 2026
- Pioneer WYS series product page; Pioneer limited warranty policy, accessed August 2026
- HVACDirect listings: MRCOOL DIY 5th Gen 12k; Senville LETO 12k 230V; Mitsubishi FX12, accessed August 2026
- Mitsubishi Electric M-Series limited warranty statement, accessed August 2026
- Home Depot listings: Diversitech PADEL18383 pad; Halex HNF60R disconnect; Southwire 10/3 Ultra-Whip; DuctlessAire DA4-14KIT cover kit, accessed August 2026
Spec verification process: how we verify specs and prices. Found an error? See the corrections policy on that page.
