Mini split for garage: what size for 1, 2, and 3 cars

30-second answer

17,000 BTU @ 5°Fverified Aug 2026

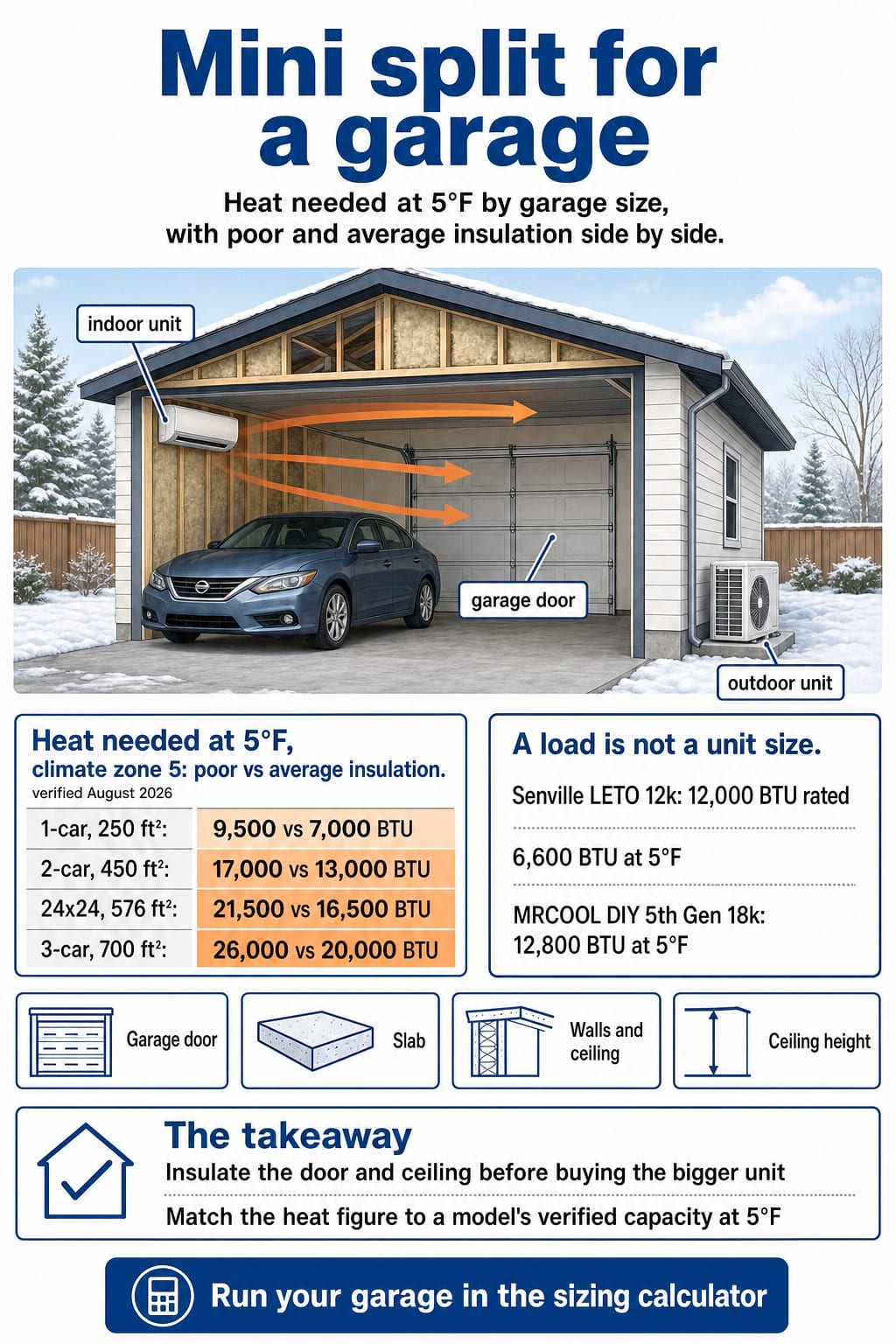

A mini split for a garage is sized for poor insulation, because that is what most garages have. A 2-car garage of about 450 ft² in climate zone 5 needs about 17,000 BTU of heat at 5°F and 15,000 BTU of cooling, an 18,000 BTU class unit. Insulate the door and ceiling first and the same garage needs 13,000 BTU of heat, a 12,000 BTU class. Read the heating figure first if the unit has to carry winter. It is a load, not a unit size: match it to a model’s verified capacity at 5°F, which is often far below the rating on the box. Most garage sizes land in 230V equipment, so price the electrician visit before the unit.

What size do I need for my garage?

The garage rows below come from our screening method run at climate zone 5, 8 ft ceilings, and average sun, with poor and average insulation side by side. The cooling column starts from ENERGY STAR’s published room-size table[1]. The insulation, ceiling, and climate adjustments, and the whole heating model, are MiniSplitsHQ editorial factors listed on the methodology page, not a published standard. Every figure is reproducible in the mini split BTU calculator with those inputs.

Garage	Heat at 5°F, poor insulationBTU/h	Heat at 5°F, average insulationBTU/h	Cooling, poor insulationBTU/h	Cooling, average insulationBTU/h
1-car, 250 ft²	9,500	7,000	8,500	6,500
2-car, 450 ft²	17,000	13,000	15,000	11,500
24x24, 576 ft²	21,500	16,500	17,500	13,500
3-car, 700 ft²	26,000	20,000	22,000	17,000
All figures verified Aug 2026 · How we verify

The cooling figures round up to a real size class.

• A 2-car garage with poor insulation screens at 15,000 BTU of cooling and lands in the 18,000 BTU class.
• The same garage with average insulation screens at 11,500 BTU, a 12,000 BTU class.
• The 24x24 garage lands in the 18,000 BTU class either way.
• A 3-car garage with poor insulation screens at 22,000 BTU, a 24,000 BTU class.

The heat column gets no class on purpose. It is the heat the garage needs on a 5°F night, and no single factor turns that into a nameplate honestly. The section on 0°F weather below shows why.

Why poor insulation is the default row. A generic chart says 400 ft² is a 12,000 BTU job, and our own mini split sizing chart agrees for a room with average insulation. A garage is rarely that room. An uninsulated steel door, an unconditioned slab, and bare studs put it at the top of the insulation range.

At 400 ft² with poor insulation, our method screens 15,000 BTU of heat at 5°F and 12,500 BTU of cooling, which is already an 18,000 BTU class unit. Reading the 12,000 BTU row for a garage under-sizes it in both seasons.

Sanity check my setup: what moves a garage’s number?

Insulation moves a garage’s number more than any other single input. In our method it spans a factor of 0.85 for 2015-or-newer code construction to 1.3 for little or none. That spread is the gap between a 2-car garage that needs 17,000 BTU of heat at 5°F and one that needs 13,000 BTU. The what size mini split do I need hub covers each load factor, and three of them hit garages harder than any room in the house.

• The door. A steel sectional door is most of one wall. Uninsulated, it is the single biggest heat path in the space. Insulated doors and weatherstripping are the first fix, not the last.
• The slab. Garage floors sit on unconditioned ground and stay cold all winter. The slab is why a garage feels colder than its air temperature reads.
• The walls and ceiling. Many garages were never finished. Bare studs and an open ceiling to a truss space mean little or no insulation, which is the factor of 1.3 in the table.

Ceiling height stacks on top. Garages often run 10 to 12 ft so a lift or a tall door fits. Our method adds 12% for a 10 ft ceiling and 25% for 12 ft or more, over the 8 ft baseline.

Ceiling height	Heat at 5°FBTU/h	CoolingBTU/h	Cooling size classBTU
8 ft	17,000	15,000	18,000
10 ft	19,000	16,500	18,000
12 ft or more	21,000	18,500	24,000
All figures verified Aug 2026 · How we verify

A 12 ft ceiling pushes the same 2-car garage from the 18,000 BTU class into the 24,000 BTU class. The factors multiply, so a tall garage with a bare door outgrows its square-footage class faster than any other space on the site. If your garage differs from its table row in more than one way, run your real inputs in the sizing calculator rather than adjusting by feel.

Insulate first where the math supports it.

• A 2-car garage with poor insulation needs 17,000 BTU of heat at 5°F.
• Insulated to average, the same 2-car garage needs 13,000 BTU.
• A 24x24 garage drops from 21,500 BTU to 16,500 BTU on the same change.

In both cases the insulation work is usually cheaper than the next size class up, and it attacks the load itself instead of chasing it with a bigger compressor. It also makes a smaller, 115V-class unit possible in the small garages, which the electrical section below explains.

Will it keep up when it’s 0°F outside?

A garage heat load and a unit rating are measured at different temperatures, and that gap decides whether a mini split heater for a garage keeps up. The Senville LETO 12k is rated 12,000 BTU of heating[2]. Its cold-climate directory entry lists a maximum of 6,600 BTU at 5°F, about half the rated figure[3]. Rated heating is measured at 47°F outdoors, while the table row is what the garage needs at 5°F.

Set the two side by side for a 2-car garage with poor insulation.

• It needs 17,000 BTU at 5°F.
• A standard 12,000 BTU unit delivers 6,600 BTU on that night.
• Even a cold-climate 18,000 BTU unit can fall short: the MRCOOL DIY 5th Gen 18k lists 12,800 BTU of maximum heating at 5°F against an 18,000 BTU rating[3]. That is the honest number for a garage, and it is why the insulation step comes first.
• Insulated to average, the same garage needs 13,000 BTU, within reach of that unit’s 5°F figure.

The buyer-side step is a comparison, not a calculation. Take the heat figure from your garage’s row to a specific model’s published capacity at 5°F, never to its nameplate. Which unit clears it is a selection question, and best mini split for a garage answers it with prices and warranty terms for four verified models; the hub’s verified 5°F numbers show the spread across four models. MRCOOL DIY is a true quick-connect line, while Senville requires flare-and-vacuum installation, so it is not a true-DIY system even though its line sets ship pre-charged.

What about a garage gym?

A garage gym carries the same heat load as the garage around it, plus two loads a parked car never adds: people and moisture. A workout adds body heat and a lot of water vapor to a small closed space. In summer that pushes the cooling side up, and it makes the humidity side of the job matter as much as the temperature. Our screening method has no gym input, so run the garage’s real dimensions and insulation, and let the insulation decision carry the margin.

Resist the urge to oversize for it. An oversized unit cools the air faster than it can pull moisture out of it, so the room reads cool but feels clammy[4]. A gym is the one garage where that failure is felt on every visit.

A right-sized unit runs long, steady cycles, and long cycles are what pull water out of the air. If the gym shares the garage with a car, the door opening on a humid day is the bigger moisture source, and no size class fixes that.

Two practical notes for a gym:

• Mount the indoor unit where its airflow is not blowing straight at the workout spot. The air off a head in heat mode is warm, but in cooling it is cold and direct.
• Keep the door closed during sessions. The insulation you paid for only works with the door down.

Do I need an electrician?

Size class decides the circuit, and garage sizes mostly land on the 230V side of the line.

• The MRCOOL DIY 5th Gen 12k runs on 115V with a 20A maximum breaker.
• The 18k in the same line runs on 230V with a 20A maximum breaker.
• The 24k runs on 230V with a 25A maximum breaker[5].

As a class pattern, 115V models live at the small end. Most equipment from the 18k class up wants a 208/230V circuit.

Where DIY ends: 240V

Adding or modifying a 240V circuit is panel work, and panel work is where DIY ends for most people. Breaker sizing, wire gauge, and the disconnect belong with a licensed electrician working from your model’s nameplate. Permits belong with your local building department. A detached garage adds a feeder run to the math, which only the electrician on site can price.

How we verify and where we defer

Map that to the table: a 1-car garage, and a 2-car garage insulated to average, screen in the 9,000 to 12,000 BTU classes where 115V models exist. A 2-car garage with poor insulation, a 24x24 garage, and any 3-car garage screen at 18,000 BTU or above, which is 230V territory. Many garages have only one 115V circuit shared with the opener and the lights, and if your panel has no spare 240V capacity, the insulation step is also the electrical step: it can bring a small garage back into a 115V class. For a larger garage, price the circuit before you order the unit, not after it arrives.

The sizing decision path for a garage, in order:

1. Measure the floor. Length times width. A 2-car garage usually runs 400 to 500 ft². A 24x24 is 576 ft². Above 1,400 ft², stop and get a Manual J load calculation[6].
2. Be honest about insulation. Uninsulated door, bare studs, or an open ceiling means the poor row. Do not pick average because the walls are drywalled.
3. Run the real inputs. Put the floor area, ceiling height, insulation, and climate zone into the sizing calculator.
4. Check the heating column against a model’s 5°F capacity. If your design temperature is below what the model publishes, move up a tier or insulate.
5. Check the circuit. 18,000 BTU and up means the electrician quote is part of the project cost.

Quick answers

What size mini split for a 2 car garage?

A 2-car garage of about 450 ft² in climate zone 5 needs about 17,000 BTU of heat at 5°F and 15,000 BTU of cooling with poor insulation, which is an 18,000 BTU class unit[7]. Insulated to average, it needs 13,000 BTU of heat and 11,500 BTU of cooling, a 12,000 BTU class. The heat figure is a load, so compare it to a model's verified 5°F capacity, not its nameplate.

What size mini split for a 24x24 garage?

A 24x24 garage is 576 ft². In climate zone 5 with poor insulation it screens at 21,500 BTU of heat at 5°F and 17,500 BTU of cooling, an 18,000 BTU class unit[7]. With average insulation the heat figure drops to 16,500 BTU. A 10 ft ceiling, common at this size, adds 12% to both figures.

What size mini split for a 3 car garage?

A 3-car garage of about 700 ft² in climate zone 5 with poor insulation screens at 26,000 BTU of heat at 5°F and 22,000 BTU of cooling, a 24,000 BTU class unit[7]. Insulated to average it needs 20,000 BTU of heat and 17,000 BTU of cooling, an 18,000 BTU class. At 800 ft² with poor insulation the heat figure reaches 30,000 BTU, so a 3-car garage in a cold zone is often a two-head job.

Is a mini split good for heating a garage?

Yes, if you size it from its capacity at 5°F rather than its rating. A standard 12,000 BTU unit such as the Senville LETO 12k delivers 6,600 BTU at 5°F, while the cold-climate MRCOOL DIY 5th Gen 18k delivers 12,800 BTU at 5°F[3]. A garage with a bare steel door needs more than either on a design night, which is why insulation comes first.

Do I need an electrician for a garage mini split?

For most garage sizes, yes. The MRCOOL DIY 5th Gen 12k runs on 115V with a 20A maximum breaker, but the 18k and 24k in the same line run on 230V[5]. A 2-car garage with poor insulation, a 24x24, and any 3-car garage screen at 18,000 BTU or above. Adding a 240V circuit is panel work for a licensed electrician, and a permit from your local building department.

Should I insulate my garage before installing a mini split?

If the door is uninsulated or the walls are bare studs, yes. In our method a 2-car garage drops from 17,000 BTU of heat at 5°F to 13,000 BTU when insulation goes from poor to average, and a 24x24 garage drops from 21,500 BTU to 16,500 BTU[7]. That is a full size class, and it can bring a small garage back into 115V equipment.

Sources

1. ENERGY STAR, Room Air Conditioners (area-to-capacity table; the cooling base and sun adjustment), accessed August 2026
2. Senville product specification page, LETO SENL-12CD, accessed August 2026
3. NEEP Cold-Climate Air-Source Heat Pump directory entries: Senville LETO SENL-12CD; MRCOOL DIY 5th Gen 18k, accessed August 2026
4. UF/IFAS Extension, Energy Efficient Homes: Air Conditioning, FCS3262/FY1026 (oversizing and humidity), accessed August 2026
5. MRCOOL product documentation, DIY 5th Gen 12k, 18k, and 24k condenser pages, accessed August 2026
6. ACCA, Manual J Residential Load Calculation (standard overview), accessed August 2026
7. MiniSplitsHQ screening method, src/lib/sizing-formula.mjs (editorial ceiling, insulation, and climate factors; editorial heating model; 1,400 ft² and 36,000 BTU bounds), verified August 2026

Spec verification process: how we verify specs and prices. Found an error? See the corrections policy on that page.
