DIY mini split installation: 3 tiers, tools, where DIY ends
30-second answer
DIY mini split installation is a real option on exactly two brands today. MRCOOL DIY and Zone Air ship pre-charged quick-connect line sets that mate without flaring or a vacuum pump; the MRCOOL DIY 5th Gen includes a 25 ft line set[1]. Every other wall-mount brand needs flare work and a vacuum pump, and most of them void the warranty on a DIY install. On every tier, opening a refrigerant circuit and wiring a 240V circuit are where DIY ends.
Are mini splits easy to install? It depends on the line set
Whether a mini split is easy to install is decided by its line-set fittings, not by the brand’s marketing. The MRCOOL DIY 5th Gen 12k connects with a sealed Quick Connect line set and “does not require vacuuming”[1]. The Senville LETO 12k ships “pre-charged for up to 25 ft” and states that licensed professional installation is required[2]. Both listings say “pre-charged.” Only one skips the vacuum pump.

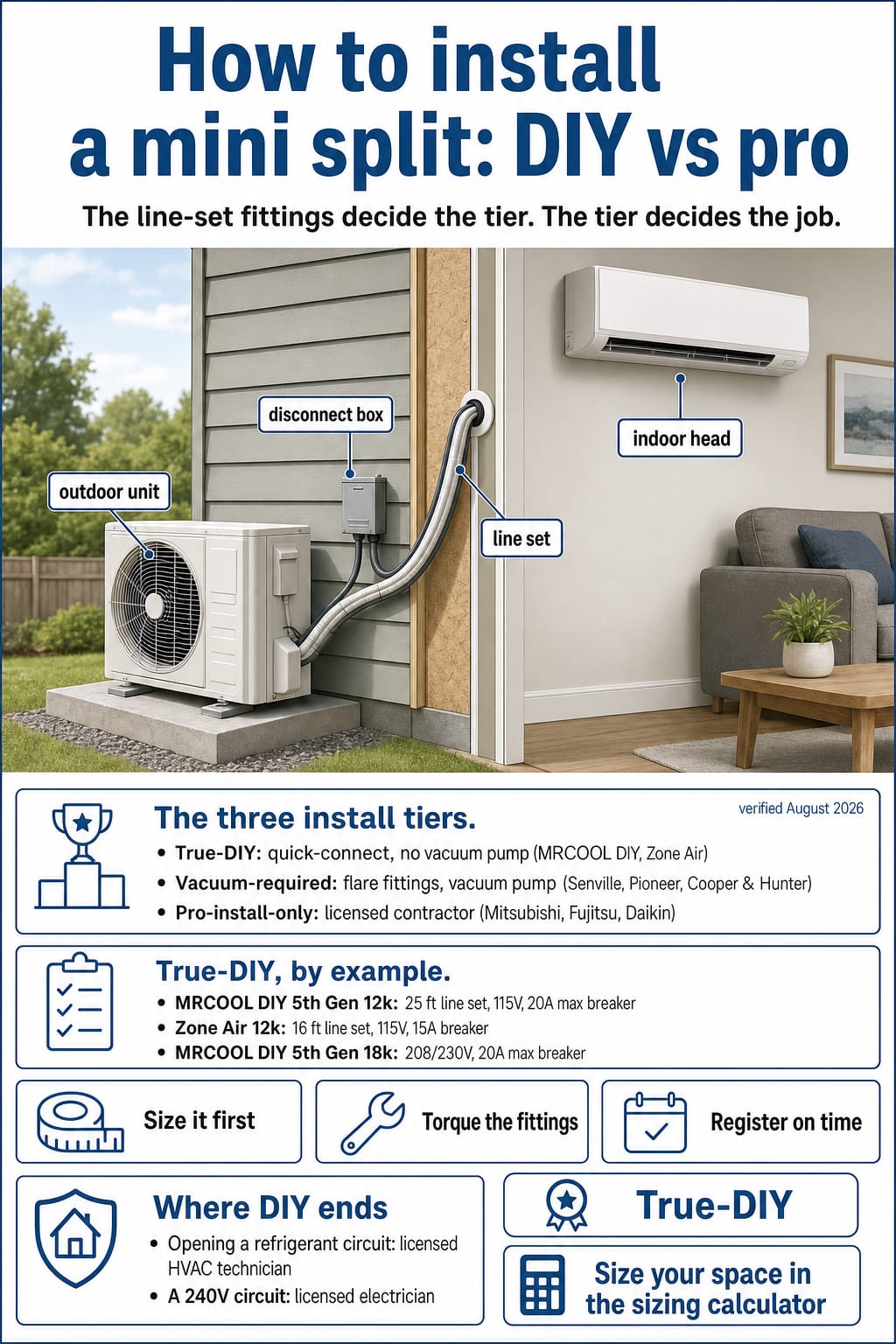

We sort every unit into one of three install tiers by the fittings and the warranty’s install clause, never by your skill.
| Tier | Line-set fittings | Vacuum pump | Warranty on DIY install | Examples |
|---|---|---|---|---|
| True-DIY✓ | Quick-connect, factory sealed | No | Intact | MRCOOL DIY, Zone Air |
| Vacuum-required✓ | Flare | Yes | Voided or contractor-only | Senville, Pioneer, Cooper & Hunter |
| Pro-install-only✓ | Flare or braze | Yes | Licensed contractor required | Mitsubishi, Fujitsu, Daikin |
| All figures verified Aug 2026 · How we verify | ||||
Tier assignments come from each brand’s product documentation and warranty terms[1]:
- Senville’s registration page says a DIY install voids coverage.
- Cooper & Hunter’s policy applies only to products installed by a licensed HVAC technician.
- Mitsubishi’s and Fujitsu’s warranty statements require licensed-contractor installation.
- MRCOOL’s DIY warranty does not require a contractor, and Zone Air states that DIY installation never voids its coverage.
If the parts themselves are new to you, start with what a mini split is and come back.
What does a mini split install actually involve?

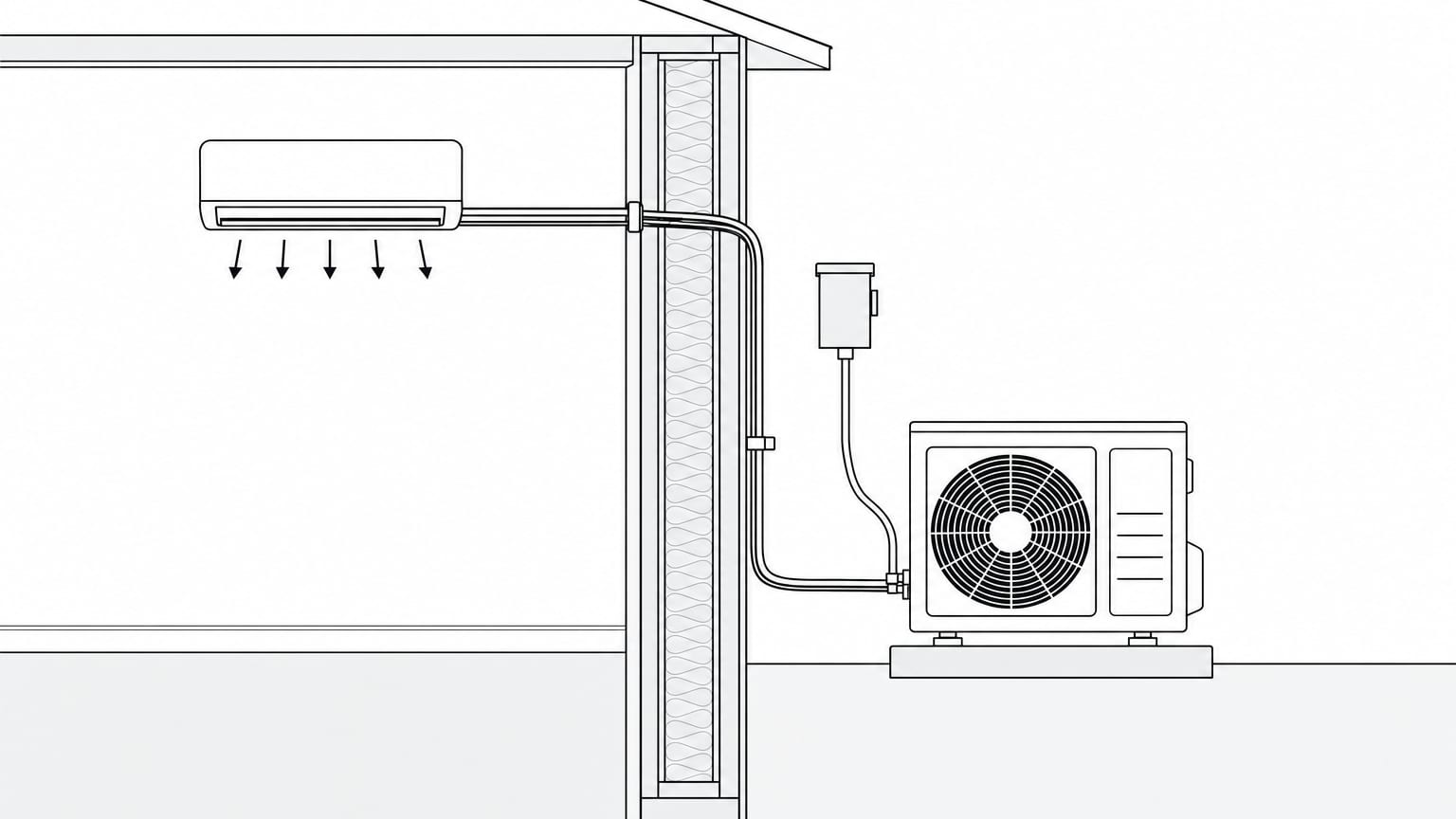

A single-zone install is six jobs, and the tier only changes two of them. The MRCOOL DIY 5th Gen 18k, for example, needs a wall bracket for the indoor head, one wall penetration, a pad for the outdoor unit, its 25 ft line set, a 208/230V circuit with a 20A maximum breaker, and a condensate drain[1]. Here is the sequence every tier shares.
- Size it first. Run the sizing calculator with your insulation, ceiling height, climate zone, and sun exposure. Above 1,400 ft², get a Manual J load calculation before buying[3]. Wrong size is the one install error no fitting work fixes.
- Mount the indoor head. The bracket goes into studs, high on an exterior wall, level or with a slight fall toward the drain side. Check the bracket’s hole spacing against your stud spacing before drilling.
- Drill the wall penetration. One hole, sloped slightly downward toward the outside so condensate drains out, sleeved and sealed.
- Set the outdoor unit. On a pad or wall bracket, clear of snow line and with the service side reachable. A plastic pad runs $36.94[4].
- Connect the line set. This is the step that changes by tier. Quick connect on the true-DIY tier. Flare, nitrogen test, and vacuum on the others.
- Power it. Disconnect box, whip, and the circuit from the panel. The circuit is the other step that changes the job, and it is electrician work on a 240V unit.
Steps 5 and 6 are the whole DIY question. The rest is carpentry and careful measurement.
Tier 1, True-DIY: quick-connect line sets
A true-DIY install is real because the refrigerant circuit is never opened. The Zone Air 12k 115V ships a 16 ft pre-charged line set with quick-connect fittings, extendable to 50 ft, and runs on a 15A single-pole breaker[5]. The MRCOOL DIY 5th Gen 12k ships 25 ft of pre-charged Quick Connect line set on 115V with a 20A maximum breaker[1]. The fittings seal themselves as they thread together.
Where DIY ends: the fittings and the circuit
A quick-connect install never opens the refrigerant circuit. If a fitting leaks, is cross-threaded, or the line set is damaged, stop. Repair at that point means refrigerant handling and belongs with a licensed HVAC technician.
The 240V circuit on an 18k-and-up unit is panel work and belongs with a licensed electrician. Permits belong with your local building department.
Tools for the true-DIY tier, beyond basic hand tools:
- Stud finder, level, and a hole saw sized to the manufacturer’s sleeve
- Two open-end wrenches for the quick-connect fittings, used together so the fixed side never turns
- A torque wrench if the manual gives a torque value; follow it
- Line-hide channel for the outside run; a 14 ft cover kit lists at $49.98[4]
The failure mode on this tier is the fitting connection. It is the #1 reported leak point, and it fails from rushing, cross-threading, or over-torquing. A sealed, pre-charged line set also cannot be cut to length without losing its charge, so the run length is a purchase decision, not an install decision. Coil the excess in horizontal loops and never in a vertical stack that traps oil.
Tier 2, Vacuum-required: flare fittings on “pre-charged” units
A vacuum-required install is a refrigerant job, whatever the listing says about pre-charged lines. The Pioneer WYS 12k ships with a customizable copper line set with flare connections[6]. The Senville LETO 12k is pre-charged for up to 25 ft, but the lines themselves are flared at both ends[2].
Pre-charged here means the refrigerant rides in the outdoor unit. The lines arrive full of air and moisture, and that has to come out.
Where DIY ends: refrigerant
Flaring, pressure testing, and evacuating a line set is refrigerant work. This is where DIY ends for most people. We describe what the technician does so you can judge a quote; we do not publish the procedure. On this tier the warranty usually requires a licensed HVAC contractor as well, so a DIY install trades the coverage for the labor.
What the technician does on this tier, so you can read the quote:
- Cuts the lines to length and forms a flare on each end with a flaring tool
- Torques each flare nut to the manufacturer’s value
- Pressure-tests the lines with dry nitrogen and watches for a drop
- Pulls a vacuum with a vacuum pump and proves it with a micron gauge
- Opens the service valves to release the factory charge
The failure mode is the flare. A bad flare leaks slowly, often after a season or two, and most warranties on this tier want proof of evacuation before they honor a leak claim. The labor you save on install day is the labor you pay for on the day it leaks, plus the refrigerant.
Tier 3, Pro-install-only: where the warranty makes the choice
On the pro-install tier, the decision is made by the warranty before it is made by the tools.
- Mitsubishi’s M-Series warranty applies only to products installed by licensed HVAC contractors[7].
- Fujitsu’s warranty statement requires the same and also excludes online-retailer purchases[7].
- Daikin’s 12-year parts term requires registration within 60 days of installation[7].
What the premium buys on this tier is not only the hardware; it is the installer network, the commissioning, and the cold-climate rating. The Mitsubishi FX12 hyper-heat system lists at $3,474.91 for equipment alone[8]. If you want this tier, price the install with it; if you want DIY, buy true-DIY. There is no honest middle path.
Do I need an electrician / can my panel handle it?
Size class decides the circuit, and the circuit decides whether an electrician is part of the project. The MRCOOL DIY 5th Gen 12k runs on 115V with a 20A maximum breaker and an 18A minimum circuit ampacity. The 18k in the same line runs on 208/230V with a 20A maximum breaker and an 18A minimum circuit ampacity[1].
A 115V unit may share a panel with no spare 240V slot. An 18k-and-up unit wants its own 240V circuit.
Where DIY ends: 240V
Adding or modifying a 240V circuit is panel work, and panel work is where DIY ends for most people. Breaker sizing, wire gauge, and panel capacity belong with a licensed electrician working from your model’s nameplate. Permits and inspection belong with your local building department.
The parts the electrician will spec, so you can budget them:
- A disconnect box at the outdoor unit. A 60A non-fusible disconnect lists at $19.98[4].
- A liquidtight whip from the disconnect to the unit. A 6 ft 10/3 whip lists at $31.00[4].
- The circuit from the panel. The price depends on the run from your panel, so ask for that quote before the unit ships.
Sanity check your setup: the DIY-vs-pro decision path
The decision path is four questions, each with a stop condition. Work them in order.
- Is the unit sized from a load estimate? If not, stop and run the sizing calculator. Our guide to whether a mini split is worth it covers when the answer is not to buy one at all.
- Is it a true quick-connect system? MRCOOL DIY or Zone Air, yes. Anything with flare fittings, no. If no, the refrigerant connection is technician work and the warranty almost always requires it.
- Does it need a 240V circuit you do not have? If yes, price the electrician visit before you order. A 115V model in a smaller size class may honestly serve a small room.
- Will the install keep the warranty? Check the brand’s install clause and registration deadline. Pioneer requires registration within one week of install for its Standard warranty[6].
If all four clear, you are a true-DIY buyer. If question 2 fails, you are a buy-and-hire buyer. Neither is the wrong answer. What is wrong is a flare install done without the vacuum, or a 240V circuit run without the permit.
Quick answers
Are mini splits easy to install?
Two brands are, and the rest are not. MRCOOL DIY and Zone Air ship pre-charged quick-connect line sets that mate without a vacuum pump, so the refrigerant circuit is never opened[1]. Senville, Pioneer, and Cooper & Hunter use flare fittings and need a vacuum pump and a micron gauge. The carpentry is the same on every brand; the fittings decide the rest.
Is it actually pre-charged or do I still need a vacuum pump?
“Pre-charged” only means the refrigerant ships in the unit. On MRCOOL DIY and Zone Air, the line set is also factory sealed, so no vacuum is needed. On Senville and Pioneer, the lines are flared and arrive full of air, so the install still needs a nitrogen pressure test and a vacuum to a verified micron reading. The Pioneer WYS 12k lists flare connections on its product page[6].
Will DIY install void my warranty?
On most brands, yes.
- Senville’s registration page says DIY installation voids coverage[2].
- Cooper & Hunter covers only licensed-technician installs[9].
- Mitsubishi and Fujitsu require a licensed contractor[7].
- MRCOOL’s DIY series does not require a contractor.
- Zone Air states DIY never voids its warranty.
Either way, every one of these warranties is parts-only.
Do I need an electrician / can my panel handle it?
Check the voltage on the spec sheet. The MRCOOL DIY 5th Gen 12k and the Zone Air 12k run on 115V; the MRCOOL 18k needs a 208/230V circuit with a 20A maximum breaker[1]. Adding a 240V circuit is panel work for a licensed electrician. A 115V model is the honest way around a full panel, if the room’s load fits a smaller size class.
Arrived undercharged or leaked after 2 years: what happened?
On a quick-connect system, a leak almost always traces to the fitting: a cross-threaded or over-torqued connection on install day. On a flare system, it traces to the flare itself or to a skipped vacuum. Inspect the unit on delivery before the freight driver leaves, and photograph dents or bent fins. After install, a unit that will not hold setpoint belongs with a licensed HVAC technician, not with a can of refrigerant.
Total installed cost: what does the DIY path actually save?
The true-DIY premium is the install. The MRCOOL DIY 5th Gen 12k lists at $2,359 with its line set, while the Senville LETO 12k 230V lists at $839.99 plus $244.94 for a 15 ft line set[8]. The gap is about $1,270, and it buys the sealed fittings and a warranty that survives a DIY install. Add roughly $140 of pad, disconnect, whip, and line hide on either path.
Sources
- MRCOOL product documentation, DIY 5th Gen 12k and 18k condenser pages; MRCOOL DIY 5th Generation warranty page, accessed August 2026
- Senville product specification page, LETO SENL-12CD; Senville warranty terms and warranty registration pages, accessed August 2026
- ACCA, Manual J Residential Load Calculation (standard overview), accessed August 2026
- Home Depot listings: Diversitech PADEL18383 pad; Halex HNF60R disconnect; Southwire 10/3 Ultra-Whip; DuctlessAire DA4-14KIT cover kit, accessed August 2026
- Zone Air product specification page, DIY 12k 115V wall mount; Zone Air wall-mount installation manual; Zone Air warranty and returns page, accessed August 2026
- Pioneer product page, WYS 12k (WYS012GMFI20RL); Pioneer limited warranty policy, accessed August 2026
- Mitsubishi Electric M-Series limited warranty statement; Fujitsu General AIRSTAGE limited warranty statement; Daikin standard warranty information page, accessed August 2026
- HVACDirect listings: MRCOOL DIY 5th Gen 12k; Senville LETO 12k 230V with line-set add-on pricing; Mitsubishi FX12, accessed August 2026
- Cooper & Hunter warranty policy, accessed August 2026
Spec verification process: how we verify specs and prices. Found an error? See the corrections policy on that page.
