Ducted mini split: static pressure, sizing and DIY limits

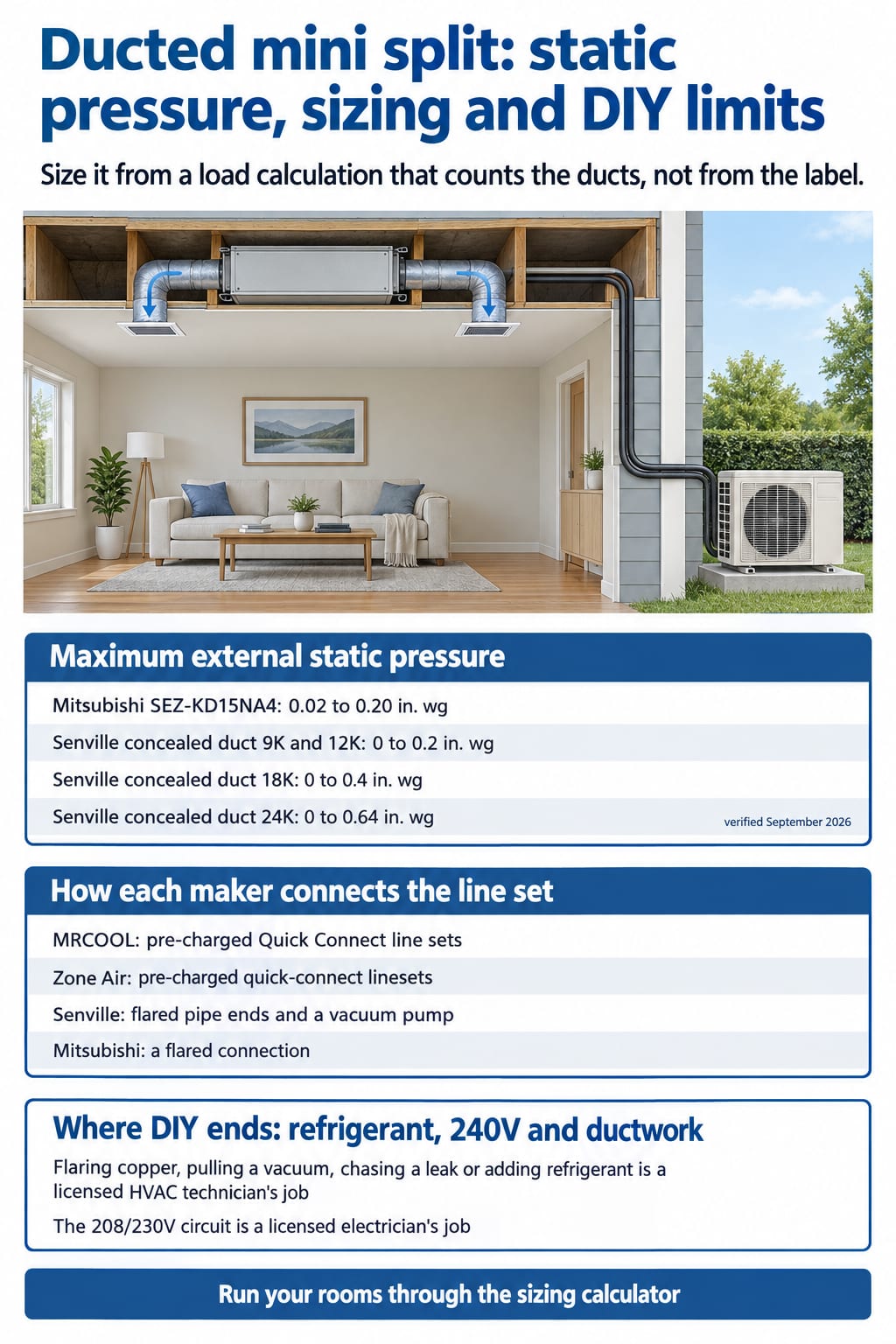

30-second answer

0.2 to 0.64 in. wgverified Sep 2026

A ducted mini split pairs a slim indoor unit, hidden above a ceiling, with an outdoor unit like a wall mount’s. The limit is not duct length but how much resistance the indoor fan can push against.

• Static pressure caps differ by model. Mitsubishi’s 15k slim-duct unit tops out at 0.20 in. wg,^[2] and Senville’s manual lists 0.2 to 0.64 in. wg by size.^[1]
• Only MRCOOL and Zone Air describe quick-connect ducted units. Both say their line sets are pre-charged.^[3][4]
• Senville and Mitsubishi are vacuum-required. Their documents call for flared joints, and Senville’s page requires a professional installer.^[1][2][5]

Size it from a load calculation that counts the ducts, not from the label.

What is a ducted mini split, and how does it differ from a wall unit?

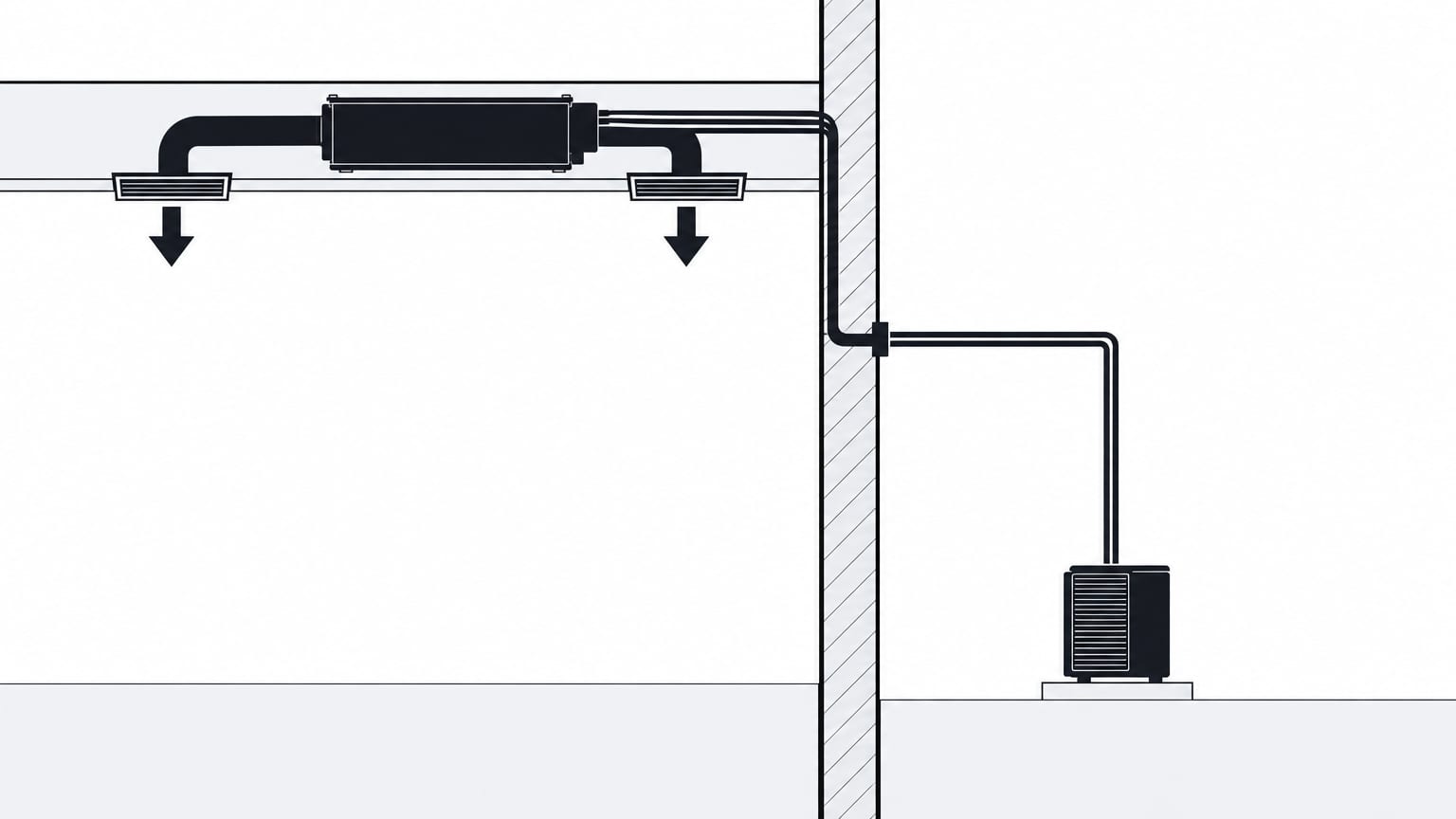

A ducted mini split is a mini-split heat pump whose indoor unit hides in a ceiling, soffit or attic and sends air through short ducts to vents. Zone Air says its concealed units stand about 8 inches tall and serve 2 to 4 rooms from one head.^[4] Mitsubishi’s SEZ-KD15NA4 is 7-7/8 inches high.^[2]

• The fan pushes through ducts. A wall unit blows straight into the room, while a ducted fan must overcome duct resistance.
• One head feeds several rooms. They share one thermostat, so they heat and cool together.
• The drain needs a plan. Zone Air’s units include a condensate pump, and Mitsubishi’s has a built-in drain.^[4][2]

The ductless heating and cooling guide compares the wall-mounted forms.

How much duct length and static pressure can a ducted mini split handle?

Makers publish a static pressure limit, not a duct length. External static pressure is the resistance the indoor fan can overcome, measured in inches of water gauge (in. wg), and every foot of narrow or leaky duct uses some of it.

Model	External static pressurein. wg	Where it is stated
Mitsubishi SEZ-KD15NA4✓	0.02 to 0.20	Submittal, page 1
Senville concealed duct 9K and 12K✓	0 to 0.2	Manual, page 22
Senville concealed duct 18K✓	0 to 0.4	Manual, page 22
Senville concealed duct 24K✓	0 to 0.64	Manual, page 22
Zone Air concealed, MRCOOL DIY Hybrid	not on the pages read	Read the spec sheet
All figures verified Sep 2026 · How we verify

Mitsubishi lists four static pressure settings, from 0.02 to 0.20 in. wg.^[2] Senville’s manual says to set the fan motor’s static pressure to match the duct.^[1]

• Duct feet are your designer’s answer. Zone Air says to plan 8 to 15 feet per branch and to add a second head beyond that.^[4]
• Do not confuse pipe with duct. Mitsubishi’s 65 feet is the maximum refrigerant pipe length, not the duct.^[2]
• Support and insulate the duct. Senville says to keep duct weight off the unit and wrap the duct in insulation foam.^[1]

How do you size a ducted mini split?

You size it from the load of every room it serves plus the ducts’ own losses, never from the label. For 600 sq ft in climate zone 4 with average insulation and 8-foot ceilings, our sizing calculator screens at 14,000 BTU/h of cooling, in the 18,000 BTU class, and 14,500 BTU/h of heat at 5°F, a typical zone 4 design temperature.

• Poor insulation adds heat load. The same rooms screen at 18,500 BTU/h.
• One small head may not cover a suite. Zone Air’s largest single-zone concealed unit is listed for up to 550 sq ft, so this example needs two heads.^[4]
• Oversizing backfires. Zone Air warns that upsizing for headroom short-cycles the unit and removes less humidity.^[4]

Zone design temperatures are typical values, not sourced ones; the methodology page explains the screening. That calculator has no duct-loss input, and ducts in a hot attic lose more than ducts inside the home, so a load calculation (Manual J) settles the real number.

Run your rooms through the sizing calculator first.

A single small room may land in the class covered by the 9,000 BTU mini split post.

When does ducted beat a wall unit, and when does central win?

Ducted wins when you want the indoor unit hidden, have a ceiling cavity, and need two to four rooms off short runs. Wall mounts win for one room or a slab ceiling, and Zone Air itself calls a wall mount faster and cheaper for one small room.^[4]

• Ducted costs more time. Zone Air says a concealed install costs a few hundred dollars more than a wall mount and adds 2 to 4 hours of ductwork.^[4]
• Central wins for a whole house. Zone Air says a concealed head is no substitute for central ducted air across a full floor plan.^[4]
• Sound ducts favor central. A house with good ducts and a tired furnace usually does better replacing the central equipment.

The mini split vs central air comparison prices duct losses.

A ducted mini split is a small ducted heat pump, and the mini split vs heat pump guide explains the ductless versus ducted split.

Can you install a ducted mini split yourself?

Only in part. Quick-connect fittings are the DIY step on MRCOOL and Zone Air, and the refrigerant, 240V and ductwork beyond them are where DIY ends.

Where DIY ends: refrigerant, 240V and ductwork

Flaring copper, pulling a vacuum, chasing a leak or adding refrigerant is a licensed HVAC technician’s job. The 208/230V circuit is a licensed electrician’s job, and your local building department decides what needs a permit. Sizing and sealing the ducts to the unit’s static pressure is design work, so hire a pro if you cannot measure it.

• MRCOOL. Its DIY Hybrid air handler comes in 24K and 36K sizes, pairs with its DIY condensers and uses pre-charged Quick Connect line sets.^[3] It replaces an older 2 or 3 ton split system, so it is not a slim ceiling unit.
• Zone Air. It says its concealed systems use pre-charged quick-connect linesets with no vacuum pump, sold separately from the unit.^[4]
• Senville. Its manual has the installer flare the pipe ends and evacuate with a vacuum pump.^[1] Its product page says pre-charge covers up to 25 feet.^[5]
• Mitsubishi. Its submittal lists a flared connection method.^[2]

What can go wrong, and what does the warranty say?

A ducted unit adds two failure modes a wall unit lacks, airflow and water. Senville’s manual says to level the unit to prevent leaks,^[1] and buyers in our buyer-research scan blame refrigerant leaks at fittings, flared and quick-connect alike.

• Airflow starves. Ducts needing more pressure than the cap leave rooms under-served.
• Condensate leaks. An unlevel unit or uninsulated duct drips into the ceiling.
