Mini split heat pump 12000 BTU: what it heats and cools

30-second answer

8,400 vs 16,200 BTU/h at 5°Fverified Sep 2026

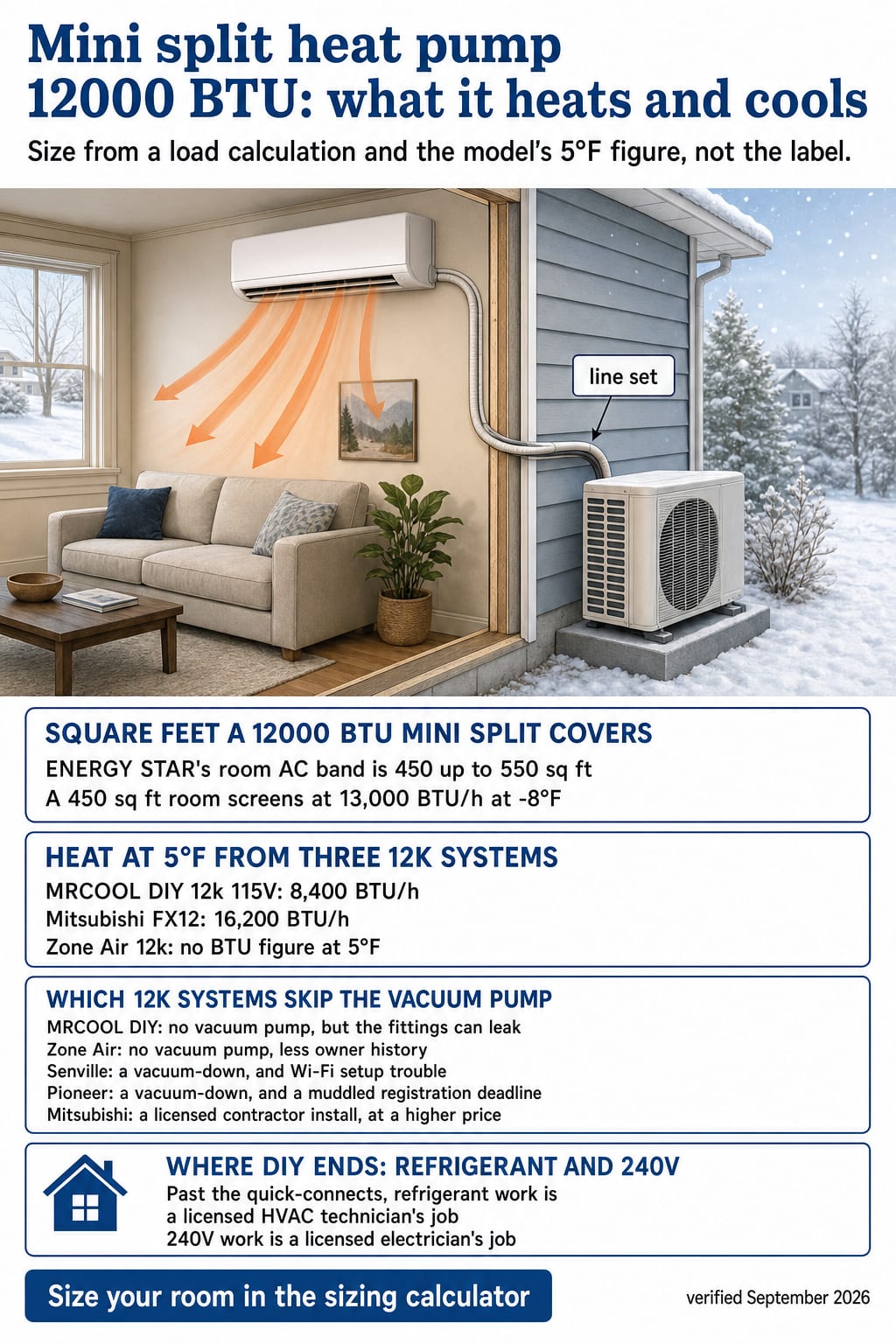

A 12,000 BTU mini-split heat pump is named for its cooling rating, and its heat on a 5°F day depends on the model far more than the label.

• Heat at 5°F splits wide. NEEP lists the MRCOOL DIY 12k 115V at 8,400 BTU/h at 5°F^[1] and the Mitsubishi FX12 at 16,200.^[2]
• ENERGY STAR’s room AC band is 450 up to 550 sq ft. That is its cooling table’s row for 12,000 BTU/h.^[3]
• MRCOOL DIY and Zone Air skip the vacuum pump. Both sell pre-charged line sets with quick-connect fittings for owner installs.^[4][5]

Size from a load calculation and the model’s 5°F figure, not the label.

How many square feet does a 12000 BTU mini split cover?

In winter, a 12,000 BTU mini-split heat pump can fall short on a room it can cool. ENERGY STAR’s room air conditioner table assigns 12,000 BTU/h to 450 up to 550 sq ft,^[3] but in our sizing calculator’s screening for climate zone 5, average insulation and an 8-foot ceiling, the heating load comes out larger than the cooling load. The heating loads below are at -8°F, a typical zone 5 design temperature:

• A 450 sq ft room screens at 13,000 BTU/h at -8°F. Its cooling estimate is 11,500 BTU/h, a 12,000 BTU class.
• A 200 sq ft room screens at 6,000 BTU/h at -8°F. Its cooling estimate is 5,500 BTU/h.

That ENERGY STAR table is the calculator’s cooling base, and it assumes an 8-foot ceiling and has no heating column.^[3] The heating model, its zone design temperatures and the insulation, ceiling and climate adjustments are MiniSplitsHQ’s own editorial judgement, not an ACCA or ENERGY STAR method.

A load calculation (Manual J) settles the real number with your city’s own design temperature, and the what size mini split do I need guide covers the heat-loss side.

How much heat does a 12,000 BTU mini split make at 5°F?

On NEEP, the MRCOOL DIY 12k 115V is listed at 8,400 BTU/h at 5°F and the Mitsubishi FX12 at 16,200, though both carry the same 12,000 BTU label, a cooling rating taken at 95°F.^[1][2] These three 12k systems are data points, not picks:

• MRCOOL DIY 12k 115V: 8,400 BTU/h. NEEP lists 12,000 BTU/h of heat rated at 47°F and an 8,400 maximum at 5°F.^[1] MRCOOL’s own performance table lists a slightly different 5°F figure.
• Mitsubishi FX12: 16,200 BTU/h. NEEP lists 13,200 BTU/h rated at 47°F and a 16,200 maximum at 5°F, and it is an ENERGY STAR cold-climate model.^[2]
• Zone Air 12k: no BTU figure at 5°F. Zone Air’s product page gives a share of rated heating capacity at 5°F, not a BTU/h figure.

Against those screening loads, the Mitsubishi’s 5°F figure of 16,200 tops the 450 sq ft room’s 13,000 and the MRCOOL’s 8,400 does not, though it tops the 200 sq ft room’s 6,000. Those loads are at -8°F, colder than 5°F, so check the maker’s extended performance table for heat below 5°F. Size your room in the sizing calculator, compare its load with your model’s heat at your design temperature, and confirm it with a load calculation (Manual J) before you buy.

If your load runs past what a 12k delivers in the cold, the 1.5 ton mini split post covers the next size up.

Which 12,000 BTU mini splits skip the vacuum pump?

Of MRCOOL, Zone Air, Senville, Pioneer and Mitsubishi, only MRCOOL DIY and Zone Air sell 12k systems whose pre-charged line sets use quick-connect fittings, so no vacuum pump is needed. MRCOOL says the Quick Connect line set on its 115V DIY 12k does not require vacuuming.^[4] Zone Air’s warranty says its quick-connect DIY systems can be owner-installed without losing coverage.^[5]

Where DIY ends: refrigerant and 240V

Mating factory quick-connect fittings is as far as refrigerant work goes for a homeowner. Past the quick-connects, refrigerant work is a licensed HVAC technician’s job: flaring, a vacuum-down, a leak repair or adding refrigerant is where DIY ends for most people. 240V work is a licensed electrician’s job, from the breaker to the disconnect, and your local building department decides what needs a permit.

Each brand’s install path has its own weak point, and the MRCOOL DIY review covers MRCOOL’s in full:

• MRCOOL DIY: no vacuum pump, but the fittings can leak. In our buyer-research scan, run in August 2026, refrigerant loss at the quick-connect fittings is the most-cited MRCOOL complaint. In our read of its install manual, extra line set stays coiled, not cut, and reinstalling a line set voids the warranty.
• Zone Air: no vacuum pump, less owner history. Our buyer-research scan found far fewer buyer sources on Zone Air than on MRCOOL.
• Senville: a vacuum-down, and Wi-Fi setup trouble. It ships pre-charged, but in our read of its LETO install manual the line set is flared and evacuated with a vacuum pump. Our buyer-research scan also found commenters who could not get a LETO into its Wi-Fi pairing (AP) mode.
• Pioneer: a vacuum-down, and a muddled registration deadline. In our read of its help center, the piping connects by flare, and only qualified personnel may evacuate it. Its warranty page gives two different registration deadlines, which our buyer-research scan also flags.
• Mitsubishi: a licensed contractor install, at a higher price. Its warranty rules out a DIY install, and our buyer-research scan flags its higher upfront cost.

Does a 12,000 BTU mini split need 115V or 240V?

A 12,000 BTU mini split does not have to be 240V: MRCOOL’s 115V DIY 12k lists a 20A maximum fuse or breaker and an 18A minimum circuit ampacity, so it still needs a proper circuit, not just any outlet.^[4] MRCOOL’s other 12k versions list other figures, so the nameplate on your own unit sets the breaker and wire.

• 115V models. No 240V run, but a new circuit is still a licensed electrician’s call.
• 208/230V models. They need a 240V circuit from the panel, a licensed electrician’s job, and your local building department decides what the code requires.

The DIY mini split installation guide marks which install steps belong to a licensed trade.
