MRCOOL DIY mini split review: 4 sizes, 5°F heat, warranty
30-second answer
This MRCOOL DIY mini split review comes down to one fact. The DIY 5th Gen is one of only two systems sold in the US that a homeowner can install without a vacuum pump, because its 25 ft line set ships sealed and pre-charged with quick-connect fittings[1]. The 18k is rated 18,000 BTU of heat and delivers 12,800 BTU at 5°F[2]. It is the right buy if your room loads to one of its four sizes, a pro quote is near $4,500, and you accept a parts-only warranty. Labor, diagnosis, and shipping are on you.
Is MRCOOL DIY junk, or is Reddit just complaints?
The MRCOOL DIY 5th Gen is a Gree-built inverter heat pump sold in 12k, 18k, 24k, and 36k single-zone sizes, rated from 18 to 23.5 SEER2[1]. It is not junk. It is a mid-efficiency unit whose whole reason to exist is the install path. The honest version of this review is that the hardware is ordinary and the fittings are not.
Troubleshooting posts outnumber happy-owner posts on every brand. With MRCOOL the skew is sharper, because a DIY install puts the buyer at the failure point. In the brand scan we ran, the most-cited complaint across 16 sources was refrigerant loss at the quick-connect fittings, while the most-cited praise was a finished install in an afternoon with no contractor. Both are true, and both come from the same fitting.
| Model | RatedBTU/h | Max heat at 5°FBTU/h | SEER2 | HSPF2 | Voltage | Max breakerA | Line setft |
|---|---|---|---|---|---|---|---|
| DIY 12k✓ | 12,000 | 8,400 | 23.5 | 10.2 | 115 | 20 | 25 |
| DIY 18k✓ | 18,000 | 12,800 | 22.5 | 11.5 | 208/230 | 20 | 25 |
| DIY 24k✓ | 24,000 | 16,100 | 22.7 | 9.5 | 208/230 | 25 | 25 |
| DIY 36k✓ | 36,000 | 22,000 | 18.0 | 8.5 | 208/230 | 35 | 25 |
| All figures verified Aug 2026 · How we verify | |||||||
Rated capacity, SEER2, HSPF2 (region IV), voltage, maximum breaker, and line-set length come from MRCOOL’s product documentation pages for each condenser[1][8]. Maximum heating at 5°F comes from each model’s NEEP cold-climate list entry[2]. Every size ships a 25 ft pre-charged line set, and each allows a longer maximum run with extension sets:
- DIY 12k: 82 ft maximum with extension sets.
- DIY 18k: 98.4 ft maximum with extension sets.
- DIY 24k: 164 ft maximum with extension sets.
- DIY 36k: 213.2 ft maximum with extension sets.

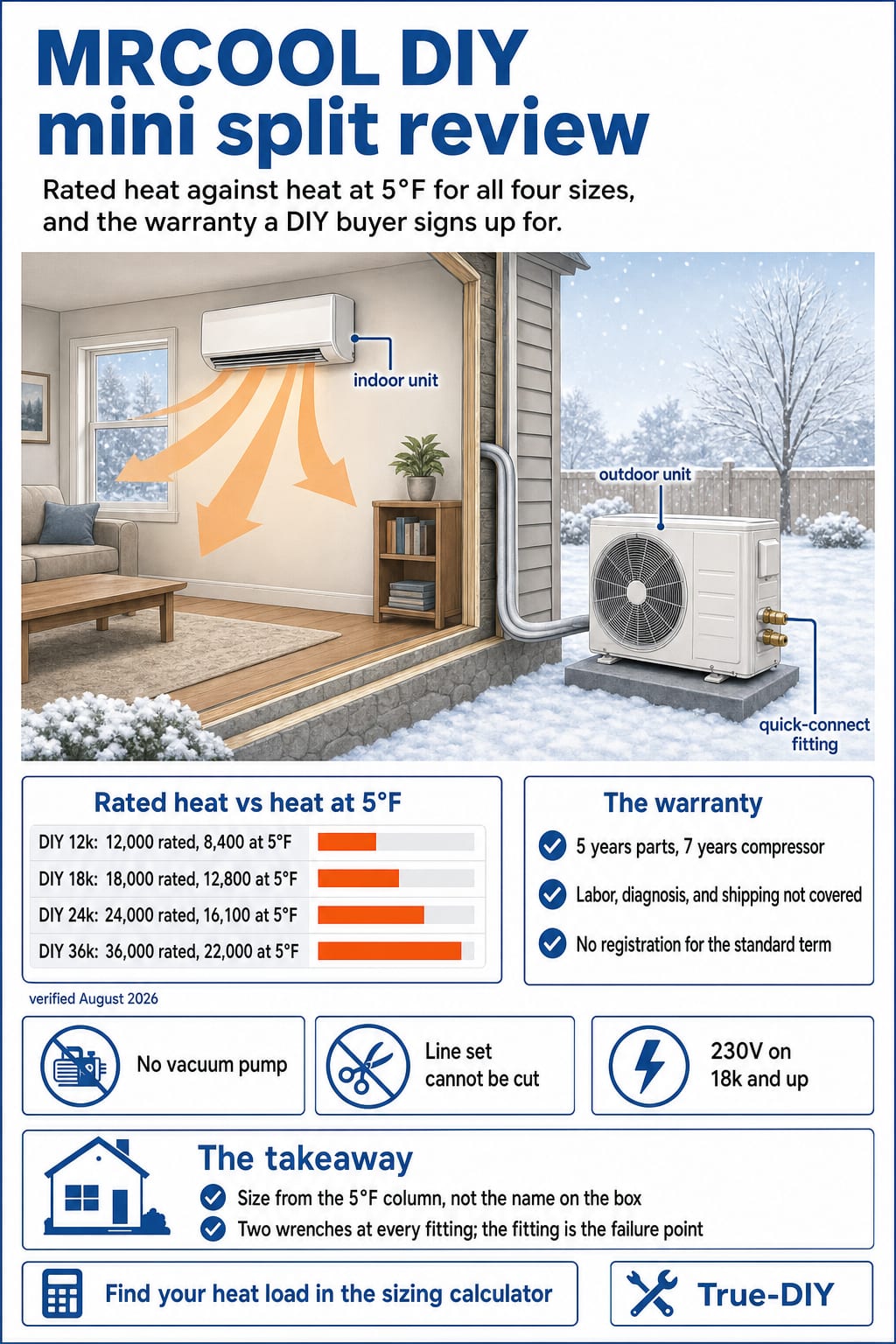

Read the table heating-first. The 5°F column is the number to size from if you heat with this unit, and it is 61 to 71 percent of the rating. The 12k and 18k carry the ENERGY STAR cold-climate mark on their NEEP entries; the 24k and 36k do not[2]. The 36k is also a different efficiency class, at 18 SEER2 against 22.5 to 23.5 for the rest.
The table uses the NEEP figure for all four sizes so every row shares one test basis. The manufacturer cell is a different airflow and indoor condition, not a correction.
Is it actually pre-charged, or do I still need a vacuum pump?
No vacuum pump. The MRCOOL DIY 5th Gen line set is sealed at the factory, charged with R-454B, and mates with quick-connect fittings, so the refrigerant circuit is never opened during install[1]. That is what separates it from every “pre-charged” listing that still needs flare work.
This is the thesis of the page, so here is the comparison stated plainly. Only MRCOOL DIY and Zone Air are true no-vacuum systems. Senville and Pioneer ship refrigerant in the outdoor unit, but their line sets are flared at both ends and arrive full of air.
A Senville or Pioneer install still needs a nitrogen pressure test, a vacuum pump, and a micron gauge, and their warranties expect a licensed contractor. That is vacuum-required, not DIY, whatever the listing says. The three install tiers guide covers the fittings in detail.
Two limits come with the sealed line set, and buyers discover both late:
- It cannot be cut to length. The 25 ft run is a purchase decision. Excess line coils flat in horizontal loops, never in a vertical stack.
- The fitting is the failure point. Cross-threading, rushing, or wrenching without holding the fixed side is how the most common MRCOOL leak starts. Two wrenches, used together, every time.
Will it keep up when it is 0°F outside?
The DIY 18k delivers a maximum of 12,800 BTU at 5°F against its 18,000 BTU rating, which is 71 percent[2]. At 0°F it delivers less than that; NEEP publishes the 5°F point, and MRCOOL publishes tested cells down to -22°F in its performance specifications PDF[7]. Size from the 5°F column for your design temperature, not from the name on the box.
The practical rule: find your heat load at 5°F in the sizing calculator, then pick the first model whose 5°F figure clears it. A 2-car garage in climate zone 5 with poor insulation screens at about 17,000 BTU of heat at 5°F, which the 18k does not clear and the 24k does. The garage sizing guide walks that case, and the sizing hub covers every other room type. Above 1,400 ft², get a Manual J load calculation before buying any size[9].
Cold air from the head in heat mode is usually the defrost cycle. Frost builds on the outdoor coil, the unit runs the loop backward for a few minutes, and the indoor fan pauses or goes cool. If heat returns on its own, nothing is wrong.
Do I need an electrician, or can my panel handle it?
Circuit requirements vary by size[1]:
- DIY 12k: 115V, 20A maximum breaker, 18A minimum circuit ampacity.
- DIY 18k: 208/230V, 20A maximum breaker.
- DIY 24k: 208/230V, 25A maximum breaker.
- DIY 36k: 208/230V, 35A maximum breaker.
A 240V circuit from the panel is where DIY ends on three of the four sizes.
Where DIY ends: the 240V circuit
The 18k, 24k, and 36k need a new 208/230V circuit: breaker, wire gauge, disconnect box, and whip. Sizing that circuit and landing it in the panel is work for a licensed electrician, and in most jurisdictions a permit from your local building department. The 12k’s 115V circuit still needs a dedicated 20A line; if one does not exist at the wall, that is the same electrician visit. If a quick-connect fitting leaks, stop: the repair is refrigerant handling and belongs with a licensed HVAC technician.
The 12k exception is real and worth planning around. If the room’s load at 5°F fits 8,400 BTU, a 115V unit can sometimes run on an existing dedicated circuit without opening the panel. That is the honest way around a full panel, and it only works for a small, well-insulated room.
What does the install actually involve?

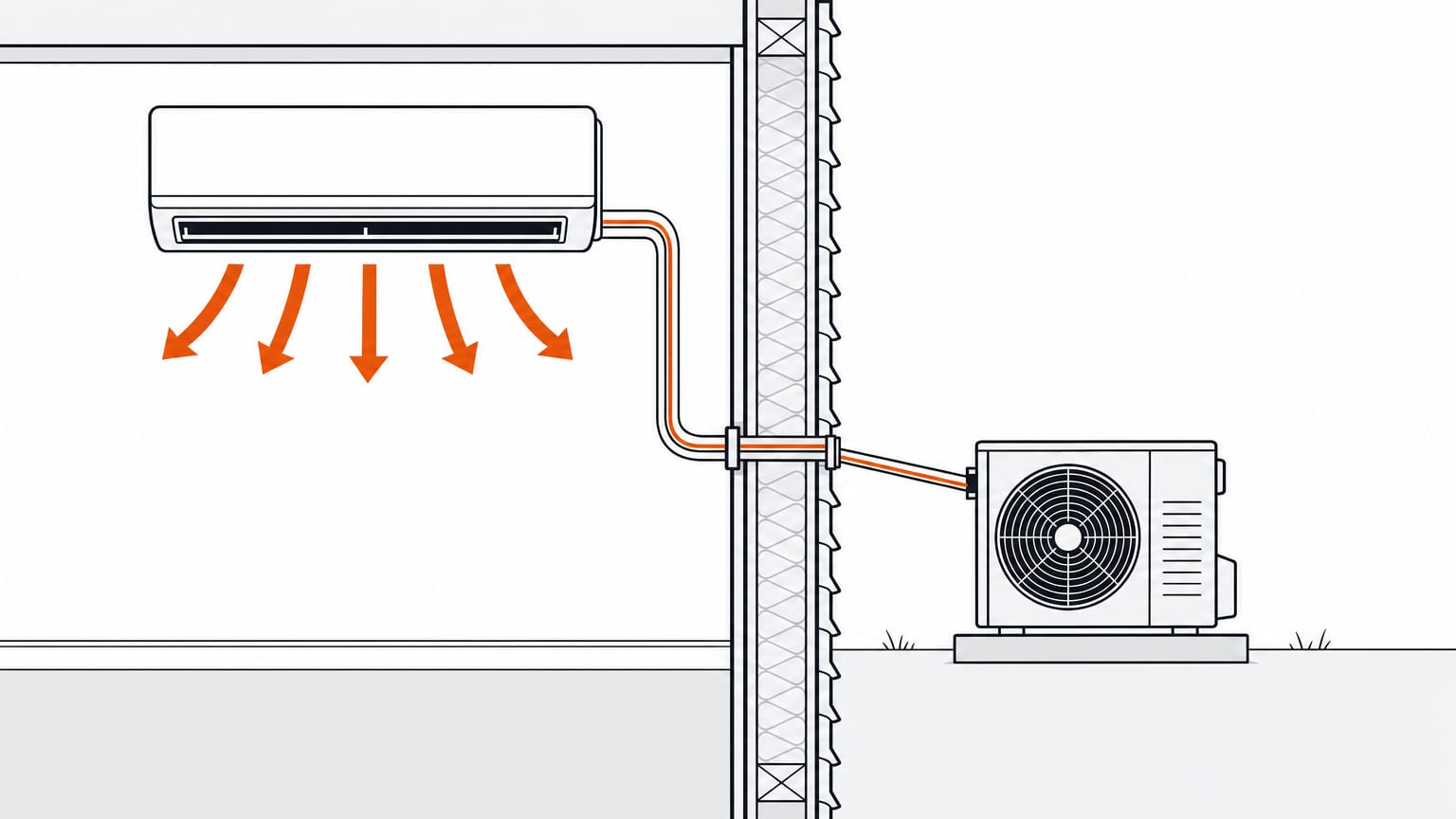

A MRCOOL DIY install is carpentry, one wall penetration, and two connections. The 18k, as the example, needs the following[1]:
- A wall bracket for the indoor head.
- A pad or bracket for the outdoor unit.
- The 25 ft line set routed through a sleeved hole.
- A condensate drain.
- Its 208/230V circuit.
Owners in the scan report finishing in an afternoon; the editorial reviews we read put a careful first install at four to eight hours.
What is not in the box, and what buyers say they wish they had budgeted:
- A disconnect box and whip for the outdoor unit; a 60A non-fusible disconnect lists at $19.98 and a 6 ft 10/3 whip at $31.00[3]
- A pad for the outdoor unit, $36.94[3]
- Line-hide channel for the outside run; a 14 ft cover kit lists at $49.98[3]
- A wall mounting kit for the condenser if it cannot sit on grade
The failure modes owners actually report, in order of how often they show up in the scan:
- Refrigerant leaks at the fittings, usually flagged by an EC error code. This is an install error.
- WiFi and app dropouts. This is a convenience feature.
- Condensate backing up from a drain run without slope. This is an install error.
- Error codes like F8, traced to a loose sensor wire in the outdoor unit. This is the one that needs support.
What does it cost, and what does the pro quote buy?
Prices are dated and verified for three of the four sizes:
- DIY 12k: $2,359 with its 25 ft line set[4].
- DIY 24k: $3,329 at the same retailer[4].
- DIY 36k: $3,769[4].
We could not verify a dated listing for the DIY 18k at press time; the 18k listing we captured was the Easy Pro variant, a different SKU with a 16 ft line set, so the 18k price is left to the merchant link below.
Buyers in the scan describe pro quotes around $4,500 for a single zone[5]. That is a report, not a retailer figure, and your quote will vary by region and by the circuit. Against them, a DIY 12k at $2,359 plus about $140 of pad, disconnect, whip, and line hide leaves a gap of roughly $2,000. That gap buys three things on the pro path: someone else at the fitting, the electrical circuit inside the quote, and a warranty claim with a contractor’s diagnosis already attached.
Whether the gap is worth it is a question about you, not about the unit. The are mini splits worth it guide prices the whole decision. The short form: if you can run the circuit legally, or already have one, and you will not rush the fitting, the DIY path keeps the $2,000. If either is false, buy the unit and hire the two hours.
Will a DIY install void my warranty?
No. The MRCOOL DIY 5th Gen warranty is 5 years on parts and 7 years on the compressor, no registration required for that standard term[6]. The warranty applies to systems installed according to the instructions and local code. A licensed HVAC contractor “may be necessary” only when required by law or when MRCOOL directs diagnostic testing.
The warranty is where the scan’s anger concentrates, and the mechanism is the exclusion list, not a refusal to honor parts: a leak at a fitting is an install error, which is excluded. A failed compressor is covered, but the diagnosis that proves it, the labor to swap it, and the shipping are not. Owners report weeks of back-and-forth, requests for leak-test evidence, and shipping cost on a replacement condenser, though some also report the warranty honored in full. Plan for the exclusions and the coverage is fair; expect a premium-brand dealer experience and it will feel like a refusal.
Who should buy MRCOOL DIY, and who should not
Buy the MRCOOL DIY 5th Gen if all four of these are true:
- Your heat load at 5°F fits one of the four sizes, checked in the sizing calculator or the sizing chart, then against the 5°F column above.
- You have, or will have an electrician run, the right circuit. The 12k is 115V; every other size is 208/230V.
- The 25 ft line set reaches, with excess coiled flat, or you will buy an extension set before install day.
- You accept a parts-only warranty and can fund a diagnosis if it fails.
Do not buy the DIY 5th Gen in these cases:
- You need rated heat at 5°F. The 24k and 36k lose about a third of their capacity there and do not carry the cold-climate mark; look at a cold-climate model tier instead and accept the pro install.
- Your room is above 1,400 ft² and you do not have a Manual J.
- The circuit does not exist yet and you will not pull a permit; that job costs more than the quote, not less.
If the hardware fits and the circuit is handled, this is the unit the DIY install guide was written around. If you want a second true-DIY option with a longer compressor term, owners in the scan cross-shop Zone Air, which also ships sealed quick-connect lines.
MRCOOL sells the DIY 5th Gen directly, and the four sizes and their line-set options are on one product page. This is a plain link to the manufacturer, not an affiliate link; MiniSplitsHQ earns nothing from it.
What a good quote itemizes, if you hire the install
If you buy the unit and hire the two hours, the quote should separate the labor from the circuit. Ask for these line items:
- Setting the outdoor unit and mounting the head, priced as labor hours
- The 208/230V circuit, breaker, disconnect, and whip, priced by the run from your panel and carrying the permit
- The line-set route and line hide, with the excess coiled flat
- A leak check at the fittings after the connection is made
A contractor who will not install a customer-supplied MRCOOL is common, and it is a business choice, not a verdict on the unit. An electrician for the circuit alone is usually the easier hire, and it is the one that matters on three of the four sizes.
Quick answers
Is the MRCOOL DIY actually pre-charged, or do I still need a vacuum pump?
No vacuum pump. The MRCOOL DIY 5th Gen ships a 25 ft line set that is sealed, charged with R-454B, and mates with quick-connect fittings, so the refrigerant circuit is never opened[1]. Only MRCOOL DIY and Zone Air work this way. Senville and Pioneer ship pre-charged outdoor units with flared line sets that still need a vacuum.
Will a DIY install void the MRCOOL warranty?
No. The DIY 5th Gen warranty is 5 years parts and 7 years compressor with no registration required, and it does not require a contractor install[6]. It excludes labor, diagnosis, shipping, refrigerant, and damage from faulty installation. A fitting leak is an install fault, so it is on you.
Will the MRCOOL DIY keep up when it is 0°F outside?
Size from the 5°F column, not the rating. The 18k delivers a maximum of 12,800 BTU at 5°F against its 18,000 BTU rating, and the 12k delivers 8,400 BTU[2]. The 12k and 18k carry the ENERGY STAR cold-climate mark on NEEP; the 24k and 36k do not. Below 5°F every size delivers less.
Do I need an electrician for a MRCOOL DIY mini split?
For the 18k, 24k, and 36k, yes: each needs a 208/230V circuit, with maximum breakers of 20A, 25A, and 35A[1]. Only the 12k runs on 115V with a 20A maximum breaker. Adding a 240V circuit is panel work for a licensed electrician and a permit from your local building department.
Leaked after 2 years or arrived undercharged: what happened?
On a quick-connect system a leak almost always traces to the fitting, and in the brand scan refrigerant loss at the fittings was the most-cited MRCOOL complaint across 16 sources. An EC error code is the usual first sign. Inspect the unit and the line set on delivery before the freight driver leaves, use two wrenches at every fitting, and treat any leak after install as a licensed HVAC technician call, not a recharge.
What does a MRCOOL DIY mini split cost?
The DIY 12k lists at $2,359 with its 25 ft line set and the 24k at $3,329[4]; the 36k lists at $3,769[4]. Budget about $140 more for a pad, disconnect, whip, and line hide. We did not verify a dated DIY 18k listing at press time.
Is MRCOOL made by Gree?
Yes, MRCOOL DIY units are built by Gree, which is normal in this category: Senville and Carrier ductless are Midea, and Pioneer is Midea or TCL. Rebadging explains parts commonality and why owners in the scan compare support between brands rather than hardware. The fittings, the warranty terms, and the support desk are what differ.
Sources
- MRCOOL product documentation, DIY 5th Gen 12k, 18k, 24k, and 36k condenser pages (rated capacity, SEER2, HSPF2, voltage, breaker, line-set lengths, warranty term), accessed August 2026
- NEEP Cold-Climate Air-Source Heat Pump directory entries: MRCOOL DIY 5th Gen 12k, 18k, 24k, and 36k (maximum heating at 5°F, cold-climate mark), accessed August 2026
- Home Depot listings: Diversitech PADEL18383 pad; Halex HNF60R disconnect; Southwire 10/3 Ultra-Whip; DuctlessAire DA4-14KIT cover kit, accessed August 2026
- HVACDirect listings: MRCOOL DIY 5th Gen 12k and 24k; Home Depot listing: MRCOOL DIY 5th Gen 36k, accessed August 2026
- Buyer-research scan of MRCOOL mini split coverage (28 sources, 6 networks) and a DIY mini split category voice map, scanned August 2026; used for complaint frequency, objections, and the pro-quote framing, never for a spec or price
- MRCOOL DIY 5th Generation warranty information page and warranty PDF, accessed August 2026
- MRCOOL DIY 5th Gen Single Zone Performance Specifications PDF (tested capacity cells at 5°F, -13°F, -22°F), accessed August 2026
- AHRI Certificates of Product Ratings, MRCOOL DIY 5th Gen 12k, 18k, 24k, 36k, accessed August 2026
- ACCA, Manual J Residential Load Calculation (standard overview), accessed August 2026
Spec verification process: how we verify specs and prices. Found an error? See the corrections policy on that page.
