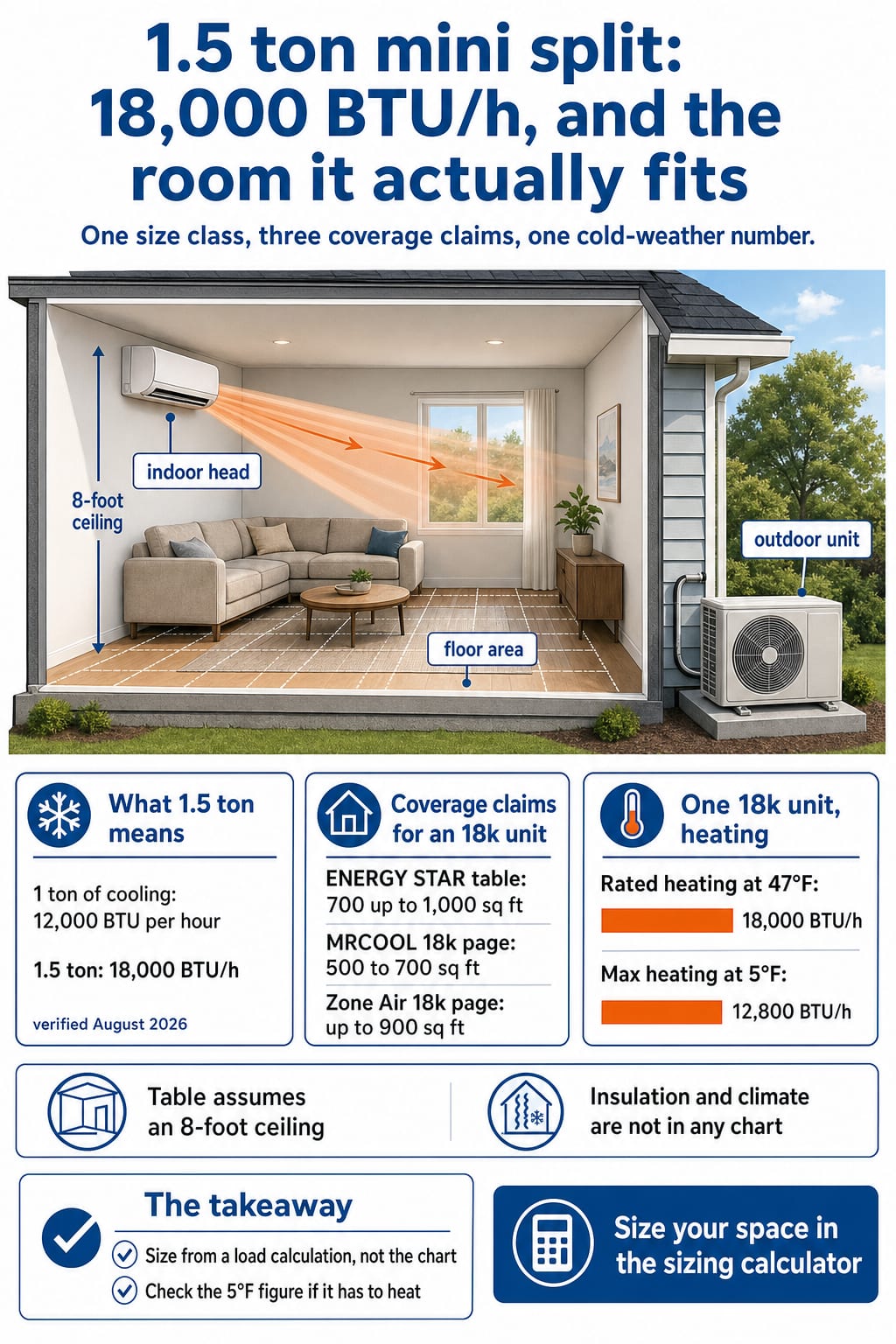

1.5 ton mini split: 18,000 BTU/h, the room it actually fits

30-second answer

18,000 BTU/hverified Aug 2026

A 1.5 ton mini split is an 18,000 BTU/h unit, and the room it fits depends on far more than square feet.

• Ton is a capacity unit. One ton of air conditioning equals 12,000 BTU per hour, so 1.5 tons is 18,000 BTU/h.^[1]
• The coverage claims disagree. ENERGY STAR’s cooling table puts 18,000 BTU/h at 700 up to 1,000 sq ft, MRCOOL says its 18k suits 500 to 700 sq ft, and Zone Air says up to 900.^[2][3][4]
• Heating is the smaller number. One 18k unit is rated 18,000 BTU/h at 47°F and a maximum of 12,800 BTU/h at 5°F.^[5]

Size from a load calculation, and check the 5°F figure if it has to heat.

What does “1.5 ton” mean on a mini split?

A ton is a rate of cooling rather than a weight, a term that comes from the amount of heat a ton of ice absorbs as it melts over a day, and the industry fixed it at 12,000 BTU per hour, so a 1.5 ton mini-split heat pump is rated to move 18,000 BTU of heat per hour^[1]; mini splits are usually sold by the BTU figure rather than the ton, which means “1.5 ton,” “18k,” and “18,000 BTU” are the same size class under three different names. That rating is taken at one set of test conditions, and the heating figure is taken at 47°F outside. The MRCOOL DIY 5th Gen 18k, for example, lists 18,000 BTU of cooling and 18,000 BTU of heating on its product page.^[3] Real output moves with the weather, which is why the nameplate is the start of sizing and not the end of it.

What room does a 1.5 ton mini split cover?

It depends who you ask, and the spread is the useful part.

• ENERGY STAR’s room air conditioner table, which assumes an 8-foot ceiling, lists 18,000 BTU/h for a room of 700 up to 1,000 square feet.^[2]
• MRCOOL’s own page for its 18k unit says it suits spaces from 500 to 700 square feet.^[3]
• Zone Air’s page for its 18k says up to 900 square feet.^[4]

Those are three honest sources giving three different answers, and the gap between them is information rather than an error.

The spread exists because square footage is only one input. ENERGY STAR’s own table tells you to adjust it:

• Sun and shade. Reduce the capacity by 10 percent if the room is heavily shaded, and add 10 percent if it is very sunny.^[2]
• People. Add 600 BTU for each person beyond two who regularly occupies the room.^[2]
• Kitchens. Add 4,000 BTU if the unit serves a kitchen.^[2]
• Ceiling height. The table assumes 8 feet. A 10-foot garage or a vaulted great room holds more air and more heat than its floor area suggests.^[2]

Then add what no cooling table covers: insulation quality, how leaky the room is, your climate zone, and the design temperature you are heating against. A 700 sq ft insulated bedroom suite in Atlanta and a 700 sq ft uninsulated garage in Minneapolis both land on “18k” in a chart and have nothing else in common. The sizing calculator takes those modifiers and returns a screening number in a minute, and a load calculation is what settles it before you buy.

Oversizing is a real cost rather than a safety margin, because an inverter unit can turn down only so far, and a 1.5 ton head in a room that needs half of it runs at its minimum speed, short cycles, and leaves the air clammy in summer.

Will a 1.5 ton mini split heat the same room it cools?

Not in the cold, because heating capacity falls as the outdoor air cools, and the drop is larger than most buyers expect.

• The MRCOOL DIY 5th Gen 18k is rated 18,000 BTU/h of heating at 47°F and a maximum of 12,800 BTU/h at 5°F on its NEEP listing.^[5] NEEP lists that as 71 percent of rated capacity on the coldest design day.^[5]
• Zone Air’s 18k lists a heating COP2 of 3.64 at 47°F and 1.8 at 5°F, and rates its low-ambient heating down to -13°F.^[4]

Efficiency falls on the same slope as capacity, so the coldest hours are both the weakest and the most expensive ones.

So a 1.5 ton unit that is a comfortable cooling fit for a room may be an undersized heater for the same room in a cold climate, which is why the 5°F figure, or the maker’s figure at your design temperature, has to be matched against the room’s heat loss before the purchase. If the two do not meet, the choices are a cold-climate model, a bigger unit, or backup heat. The what size mini split do I need guide walks through that check with the heat-loss side of the math.

What does a 1.5 ton mini split need from the panel?

Where DIY ends: the 240V circuit

The 18k class runs on 208/230V. Adding that circuit means a new breaker in the panel, correctly sized wire, and a disconnect at the outdoor unit, and the in-panel work is where DIY ends for most people. A licensed electrician sizes the breaker and wire to the unit’s nameplate, confirms the panel has the capacity, and pulls the permit your local building department requires.

The two brands that are true no-vacuum DIY at this size are MRCOOL DIY and Zone Air, whose quick-connect line sets mate without flaring or a vacuum pump. Every other “pre-charged” 18k listing still needs its line set flared and evacuated by someone with the tools. Both true-DIY units still want a dedicated 240V circuit.

• The MRCOOL 18k lists a maximum breaker of 20A and a minimum circuit ampacity of 18A, with a 25 ft line set in the box and a 98.4 ft maximum.^[3]
• The Zone Air 18k calls for a 208-230V, 30A dedicated circuit, with a 16 ft pre-charged line set that can be extended to 50 ft.^[4]

The right breaker is the one on your unit’s nameplate, and whether your panel has a slot for it is the first question to ask before you fall in love with the size.
