9000 BTU mini split: what it covers, heats and needs

30-second answer

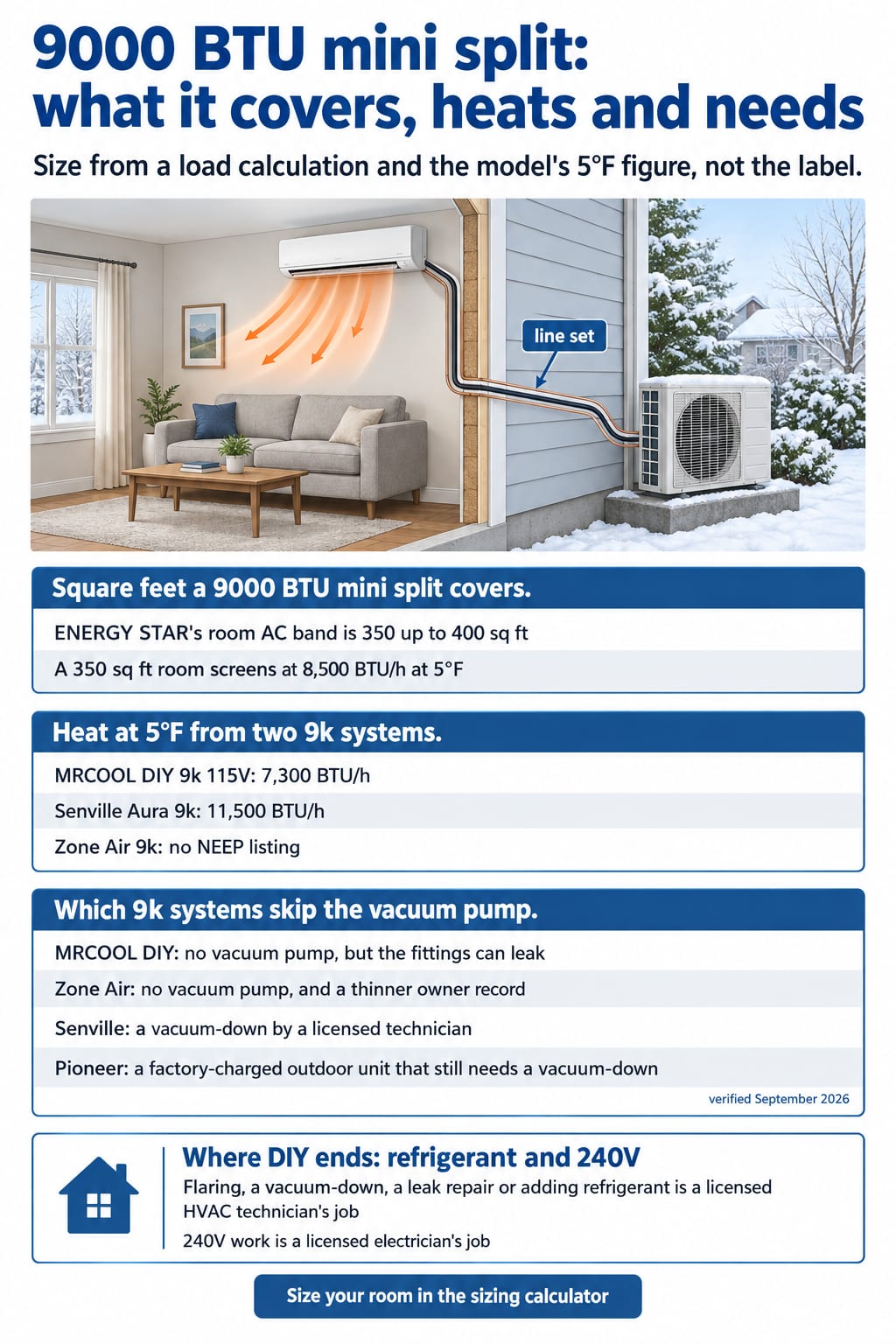

7,300 vs 11,500 BTU/h at 5°Fverified Sep 2026

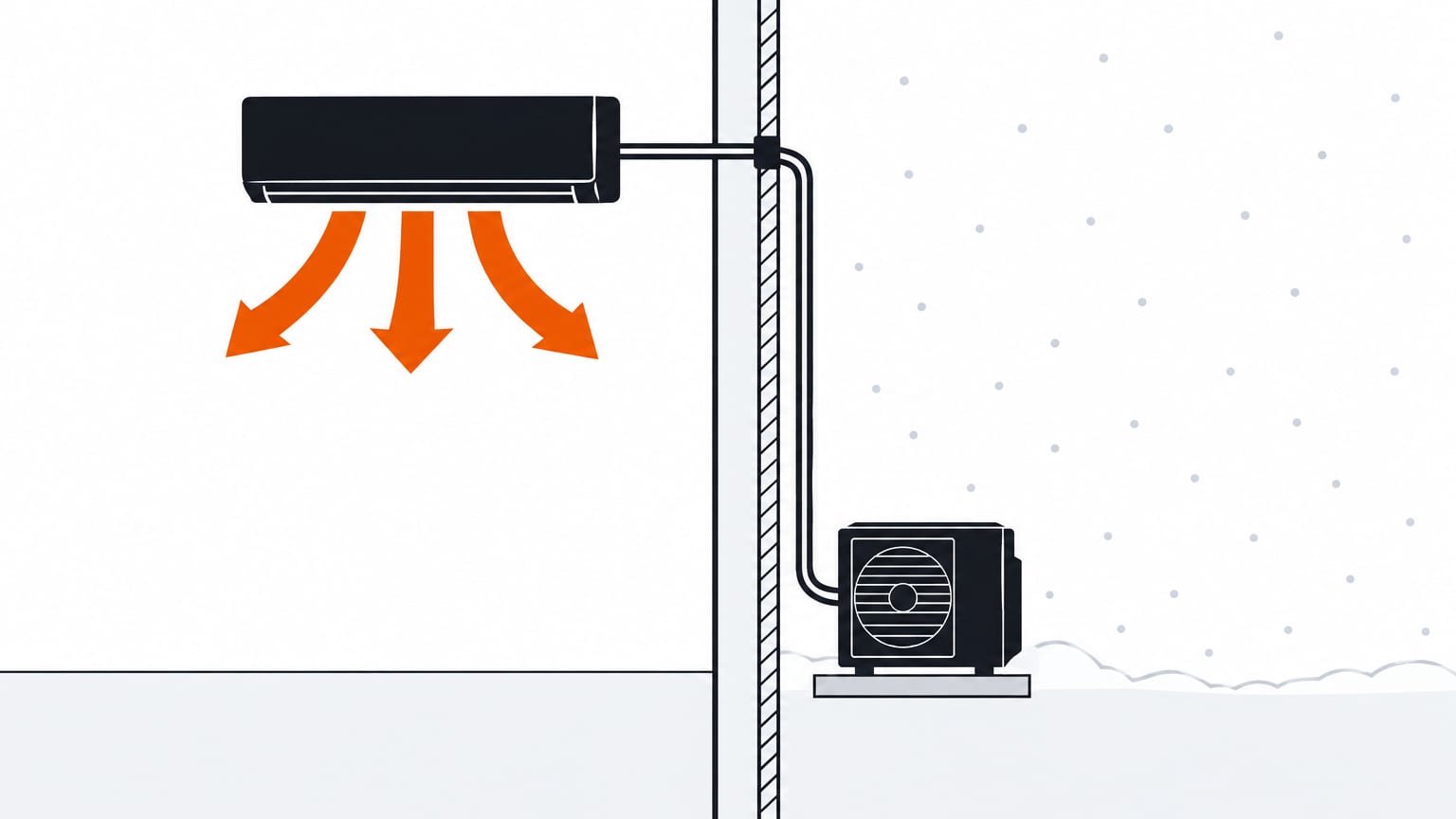

A 9,000 BTU mini-split heat pump is named for its cooling rating, and the heat it makes on a 5°F day depends on the model, not the label.

• Heat at 5°F splits wide. NEEP lists the MRCOOL DIY 9k 115V at 7,300 BTU/h at 5°F^[1] and the Senville Aura 9k at 11,500.^[2]
• ENERGY STAR’s room AC band is 350 up to 400 sq ft. That is its cooling table’s row for 9,000 BTU/h.^[3]
• MRCOOL DIY and Zone Air skip the vacuum pump. Both sell pre-charged line sets with quick-connect fittings for owner installs.^[4][5]

Size from a load calculation and the model’s 5°F figure, not the label.

How many square feet does a 9,000 BTU mini split cover?

A 9,000 BTU mini-split heat pump covers about 350 up to 400 sq ft on ENERGY STAR’s room air conditioner table, which assumes an 8-foot ceiling and has no heating column.^[3] Makers set their own limits, and they differ:

• MRCOOL DIY 9k: up to 350 sq ft.^[4]
• Zone Air 9k: up to 450 sq ft in mild climates.^[5]

In our sizing calculator’s screening for climate zone 4, average insulation and an 8-foot ceiling, heating loads are stated at 5°F, a typical zone 4 design temperature:

• A 350 sq ft room screens at 8,500 BTU/h at 5°F. Its cooling estimate is 9,000 BTU/h, a 9,000 BTU class.
• A 250 sq ft room screens at 6,000 BTU/h at 5°F. Its cooling estimate is 7,000 BTU/h, which rounds up to a 9,000 BTU class because the next class down is too small.

Zone design temperatures are typical values, not sourced ones; the methodology page explains the screening. The heating model and its adjustments are MiniSplitsHQ’s own judgement, not an ACCA or ENERGY STAR method.

A load calculation (Manual J) settles the real number, and the what size mini split do I need guide covers heat loss.

How much heat does a 9,000 BTU mini split make at 5°F?

On NEEP, the MRCOOL DIY 9k 115V is listed at 7,300 BTU/h at 5°F and the Senville Aura 9k at 11,500, though both carry the same 9,000 BTU label, a cooling rating taken at 95°F.^[1][2] The column to read is percent of rated capacity at 5°F.

Model	Rated at 47°FBTU/h	Maximum at 5°FBTU/h	Percent of rated capacity at 5°F
MRCOOL DIY 9k 115V✓	10,000	7,300	73
Senville Aura 9k✓	12,000	11,500	95
All figures verified Sep 2026 · How we verify

These two are data points, not picks, and two gaps matter:

• Zone Air 9k has no NEEP listing. Its page says it keeps approximately 85 percent of rated heating capacity at 5°F, a maker statement, not a NEEP value.^[5]
• NEEP lists other 9,000 BTU systems, some lower and some higher at 5°F. Look up your exact model and read its 5°F row.

Against the screening loads above, the Aura’s 11,500 tops the 350 sq ft room’s 8,500 and the MRCOOL’s 7,300 does not, though it tops the 250 sq ft room’s 6,000. Size your room in the sizing calculator, then compare its load with your model’s 5°F figure.

The cold climate mini split guide explains NEEP’s low-temperature ratings.

Which 9,000 BTU mini splits skip the vacuum pump?

Of MRCOOL, Zone Air, Senville and Pioneer, only MRCOOL DIY and Zone Air use pre-charged line sets with quick-connect fittings, so no vacuum pump is needed. MRCOOL says the Quick Connect line set on its 115V DIY 9k eliminates the demand for vacuuming.^[4] Zone Air’s 9k page says its pre-charged quick-connect systems mean no vacuum pump.^[5]

The pre-charged line sets are short: MRCOOL’s 9k ships 25 feet,^[4] and Zone Air’s includes 16 feet.^[5] Measure the run from the indoor spot to the outdoor pad, and ask the maker about a longer line set before you buy.

Where DIY ends: refrigerant and 240V

On a 9,000 BTU system the DIY line is the quick-connect fittings on the factory line set and nothing past them. Cutting or flaring copper, pulling a vacuum, chasing a leak or topping up refrigerant belongs to a licensed HVAC technician. A 240V circuit belongs to a licensed electrician, and your local building department decides what needs a permit.

Each brand has its own weak point:

• MRCOOL DIY: no vacuum pump, but the fittings can leak. In our buyer-research scan, run in August 2026, refrigerant loss at the quick-connect fittings is the most-cited MRCOOL complaint. In our read of its install manual, a line set is designed to be installed once, and a second installation voids the warranty.
• Zone Air: no vacuum pump, and a thinner owner record. Our buyer-research scan found far fewer buyer sources on Zone Air than MRCOOL.
• Senville: a vacuum-down by a licensed technician. Its FAQ says a licensed technician must do the vacuum step to activate the warranty.
• Pioneer: a factory-charged outdoor unit that still needs a vacuum-down. Its help center says only qualified personnel may evacuate the circuit.

Does a 9,000 BTU mini split need 115V or 240V?

A 9,000 BTU mini split does not have to be 240V. The two 115V DIY 9k systems below list different circuits,^[4][5] so the nameplate on your own unit sets the breaker and wire.

Model	Voltage	Breaker or fuseA	Minimum circuit ampacityA
MRCOOL DIY 9k 115V✓	115V	20 (maximum)	18
Zone Air DIY 9k 115V✓	110-120V	15 (single-pole)	not listed
All figures verified Sep 2026 · How we verify

Zone Air also sells an optional cord kit for a dedicated GFCI outlet, only where local code allows.^[5]

• 115V models. No 240V run, but a new circuit is still a licensed electrician’s call. Zone Air says never use an extension cord.^[5]
• 208/230V models. They need a 240V circuit from the panel, a licensed electrician’s job, and your local building department decides what the code requires.

The DIY mini split installation guide marks which install steps belong to a licensed trade.

When is 9,000 BTU the wrong size?

A 9,000 BTU mini split is the wrong size when the room’s load lands in another class. ENERGY STAR gives 6,000 BTU/h for 150 up to 250 sq ft and warns that an oversized unit costs more, wastes energy and does not cool better.^[3] Our screening shows how fast a room moves up a class:

• Step down for a small room. A 200 sq ft room screens at 6,000 BTU/h of cooling, a 6,000 BTU class.
• Step up for tall ceilings. The 350 sq ft room with a 10-foot ceiling screens at 9,500 BTU/h of heat and a 12,000 BTU class.
• Step up for poor insulation. With little or none, that room screens at 11,000 BTU/h of heat and a 12,000 BTU class.
• Step up for a colder zone. In zone 5 the same room screens at 10,000 BTU/h at -8°F, a typical zone 5 design temperature.

The 12,000 BTU mini split post covers the next size up.

Rooms near a class edge need a load calculation, not a guess, and the mini split sizing chart shows sizes by area.
