Pioneer mini split review: Quantum Ultra 12k, 2026
30-second answer
This Pioneer mini split review covers the current in-stock wall-mount 12k, the Quantum Ultra (WYT012GLSI24RL). The outdoor unit holds a factory refrigerant charge. The line set is flared copper, not sealed, and it ships full of air, so a vacuum pump and a nitrogen pressure test are still required before startup[1]. It is rated 12,600 BTU of heat and holds 9,100 BTU at 5°F. It carries an ENERGY STAR cold-climate listing, and Pioneer rates its operating range down to −13°F. The warranty is tiered: 1 year unregistered, 5 years registered, and up to 10 years on the compressor if a registered technician installs it within 90 days.
Is Pioneer actually pre-charged, or do I still need a vacuum pump?
Yes, you still need a vacuum pump. The Quantum Ultra’s outdoor unit ships with a factory charge. But its line set is flared copper, not a sealed quick-connect fitting, and it arrives full of air[1][2].
Before the system can run, three steps happen in order:
- The flare joints get torqued to spec.
- The line gets evacuated with a vacuum pump down to a target micron level.
- The assembly holds a nitrogen pressure test to confirm there is no leak.
Our buyer-research scan confirms the stakes: skipping the vacuum step on a “pre-charged” Pioneer listing can trap moisture and damage the compressor[3]. That is the same buyer trap Senville sells into, and Pioneer sits in the same install tier.
Pioneer’s indoor flare connections sit toward the back of the unit on this series. Several buyers in the scan call it a harder joint to torque correctly, with leaks showing up inside the house rather than outside[3]. Only MRCOOL DIY and Zone Air ship true quick-connect line sets that skip this step entirely. The three install tiers guide covers the difference in fittings.
Where DIY actually ends on a Pioneer install is specific, not a vibe:
- The vacuum pump and micron gauge. A buyer without one, or without the patience to hold a deep vacuum, is looking at a contractor visit for this step alone.
- The rear-mounted flare joint. Harder to reach and torque than a front- or bottom-access fitting, and where the scan’s leak reports concentrate.
- The circuit. This SKU ships 208-230V only. There is no 115V wall-mount 12k currently in stock to fall back on.
- The top warranty tier. The full 10-year compressor coverage requires a registered technician’s install, not just registration.
Is Pioneer junk, or is Reddit just complaints?
Pioneer is not junk, but the scan skews harder negative here than on Senville. Our buyer-research scan logged 53 weakness findings for Pioneer against 35 for Senville. One editorial source rated the line a flat 3.0 out of 5, “average quality,” short of a clear recommend[3]. Compressor and coil failures in the 18-month to 3-year range show up repeatedly.
Troubleshooting posts outnumber happy-owner posts on every brand in this niche, and Pioneer is no exception. Two patterns recur most: a warranty registration deadline that Pioneer’s own materials state inconsistently (covered below), and indoor flare leaks tied to the rear-mounted connection[3]. Buyers who register correctly and get a careful vacuum-down report the hardware performing as specified.
| Model | Rated coolingBTU/h | Rated heatBTU/h | Max heat at 5°FBTU/h | SEER2 | HSPF2 (IV) | EER2 | Voltage | BreakerA |
|---|---|---|---|---|---|---|---|---|
| Quantum Ultra 12k (WYT012GLSI24RL)✓ | 12,000 | 12,600 | 9,100 | 24.0 | 10.0 | 13.0 | 208/230 | 15 |
| All figures verified Aug 2026 · How we verify | ||||||||
Every figure in the table comes from the AHRI Certificate of Product Ratings[4]. It matches Pioneer’s own submittal sheet[2] and the model’s NEEP cold-climate directory entry[5] exactly. There is no discrepancy on any figure here, a cleaner record than Senville’s Aura, whose product page overstated three of its own AHRI-certified numbers.
This particular 12k also carries two names inside Pioneer’s own materials. The pioneerminisplit.com site lists it under the “Quantum Ultra” collection. Its own AHRI certificate names the series “Diamante Ultra.” Same model numbers on both, so this is one product with an inconsistent internal series name, not two competing SKUs[4].
Will the Quantum Ultra keep up when it’s below zero outside?

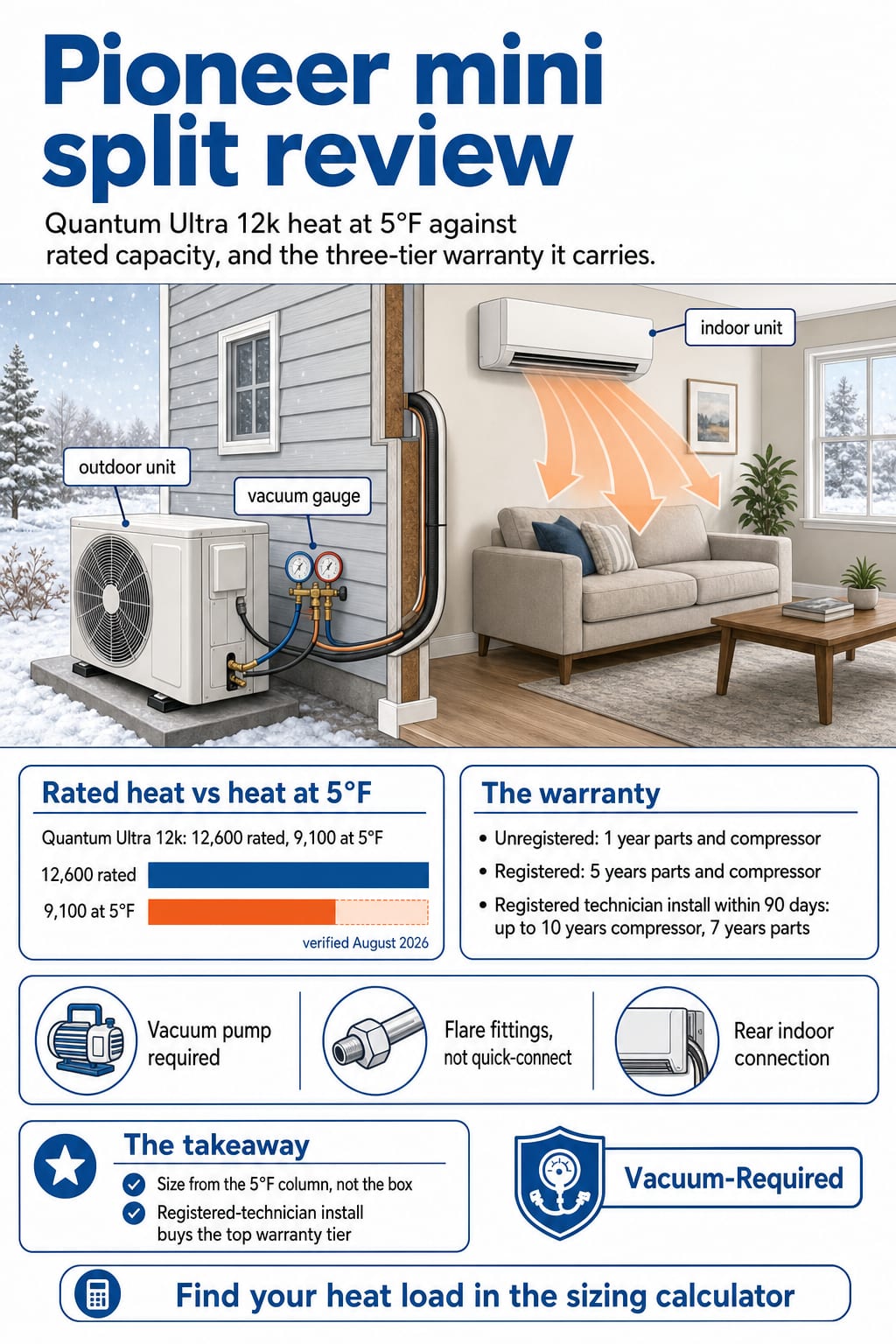

Cold-climate performance is a real strength here. The Quantum Ultra 12k holds 9,100 of its 12,600 BTU rating at 5°F, 72 percent of its rated capacity, and it carries the ENERGY STAR cold-climate mark[5]. Pioneer’s ambient range rates the unit down to −13°F. NEEP backs that with a coefficient-of-performance figure at that temperature of 1.51[5].
We could not find a published BTU capacity figure at −13°F itself. NEEP and Pioneer’s own submittal both stop their capacity table at 5°F; only the efficiency (COP) figure runs that far. That gap is stated here rather than estimated.
This Pioneer holds more of its rated capacity at 5°F than Senville’s budget-tier LETO does, and it carries the cold-climate listing the LETO lacks. The Senville review covers that budget vacuum-required peer in full if you are cross-shopping the two. Size from the 5°F column against your actual heat load, checked in the sizing calculator or the sizing hub. Cold air from the head in heat mode is usually just the defrost cycle clearing frost from the outdoor coil.
Where DIY ends: the vacuum-down and the 230V circuit
Evacuating and pressure-testing a flared line set is refrigerant handling, and that is where DIY ends for most people on this unit, same as it does on Senville. This SKU also ships 208-230V only, on a 15A double-pole breaker. Landing that circuit in the panel is a licensed electrician’s job, permitted through your local building department. If a rear flare fitting leaks after install, stop: that repair belongs with a licensed HVAC technician, too.
Do I need an electrician, or can my panel handle it?
Almost always, yes. The Quantum Ultra 12k runs on a 208-230V circuit with a 15A double-pole breaker and 14 AWG wire[2]. Unlike Senville, which still sells a 115V LETO at this size, Pioneer has no in-stock 115V wall-mount 12k to fall back on.
If a compatible 240V circuit already exists at the wall, an electrician visit may not be needed for power alone. If it does not, that circuit is panel work, not a DIY step.
What does the install actually involve, and what does it cost?

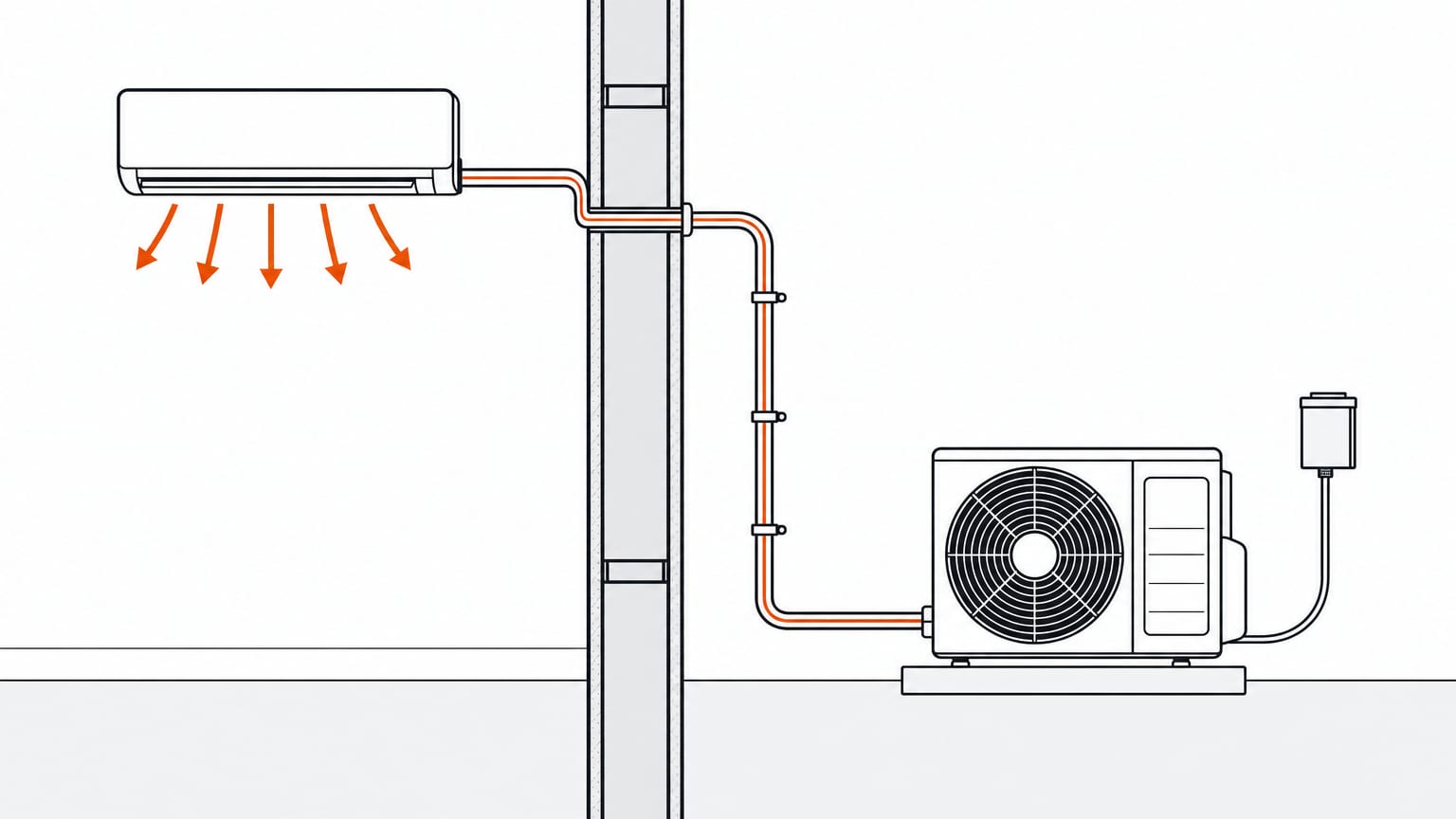

A Pioneer install is the flare-and-vacuum job described above, plus carpentry. It needs:
- A wall bracket for the indoor head.
- A pad for the outdoor unit.
- The line set routed through a sleeved wall penetration.
- A condensate drain.
The system ships with a 16 ft line set included, factory precharged to support runs up to 25 ft. The full engineering maximum is a 50 ft length with a 33 ft height difference[2].
Pioneer’s own submittal does not publish a minimum circuit ampacity figure for this SKU. It states rated current instead: 4.4A cooling, 4.2A heating, on the 15A breaker[2]. That gap is stated honestly rather than inferred.
Pricing, checked 2026-08-25: the Quantum Ultra 12k lists at $1,162.00 on sale ($1,659.00 regular)[1]. An earlier Pioneer wall-mount 12k, the WYS platform, was discontinued for the R-410A refrigerant phaseout and is no longer purchasable. Its site-listed replacement was also out of stock at the same check[6]. That is why the Quantum Ultra is this page’s representative model.
Will a DIY install void my warranty?
The answer is more layered than a flat yes or no. Pioneer’s official Limited Warranty Policy splits coverage into two tiers: a Basic Warranty, up to one year with no registration required, and a Standard Warranty, up to five years, which requires registration[7][8]. Neither tier’s description states that a DIY install by itself voids coverage.
Pioneer's own warranty policy states two different registration windows on the same page. Register as soon as the system is running rather than banking on either figure; this page treats the deadline as unresolved and states both.
The Quantum Ultra 12k’s own submittal sheet adds a third, higher tier on top of the general policy. It is up to 10 years on the compressor and 7 years on other parts, but only if the system is registered AND installed by “a registered technician” within 90 days[2]. Registering without a professional install still qualifies for the 5-year Standard tier. DIY does not appear to void the base coverage outright; it costs you the extended compressor term instead.
Pioneer is Midea/TCL-built, the same manufacturing relationship behind a large share of the budget and mid-tier ductless market. Senville is Midea-built; MRCOOL is Gree-built[9]. Rebadging is normal in this category and explains parts commonality across brands. It does not change what Pioneer’s own warranty documents require.
Who should buy the Pioneer Quantum Ultra, and who should not
Buy it if your room’s heat load at 5°F clears 9,100 BTU. You should also have, or be ready to arrange, a 208-230V circuit, and be comfortable with a full flare-and-vacuum job at a rear-mounted fitting. The cold-climate rating to −13°F is a genuine strength against Senville’s non-cold-climate LETO at this size.
Do not buy it expecting a no-vacuum install at any price point; that path does not exist on Pioneer. Register the unit immediately after install given the deadline conflict above. Budget for a licensed installer if you want the full 10-year compressor term.
This is a plain link to the manufacturer, not an affiliate link. No Pioneer program is live as of this writing, and MiniSplitsHQ earns nothing from the click.
If you want true DIY instead, meaning a line set that skips the vacuum pump entirely, the MRCOOL DIY review covers the one brand tier that actually delivers that. It is not a knock on Pioneer’s hardware; it is a different install path with a different tool list. If you want a budget vacuum-required peer to cross-shop instead, the Senville review covers that comparison directly.
What a good quote itemizes, if you hire the install
A Pioneer quote should separate the same line items as any vacuum-required install:
- The flare and vacuum-down labor, with extra attention to the rear-mounted indoor fitting.
- The 208-230V circuit and its breaker, if one does not already exist.
- The line-set route and cover.
- A nitrogen pressure test, performed and documented before charge release.
Ask specifically whether the contractor is a “registered technician” for warranty purposes. Ask whether the quote includes registering the system. Given the deadline conflict in Pioneer’s own policy, a contractor who registers right after install protects you either way.
Quick answers
Is Pioneer actually pre-charged, or do I still need a vacuum pump?
You still need a vacuum pump. The outdoor unit holds a factory charge, but the line set is flared copper that ships full of air[1]. It needs evacuation, a micron gauge check, and a nitrogen pressure test before startup. Only MRCOOL DIY and Zone Air ship true quick-connect lines that skip this step.
Will a DIY install void the Pioneer warranty?
Not outright. Pioneer's policy gives 1 year unregistered and 5 years registered, with no stated DIY exclusion on those tiers[7]. The extended 10-year compressor tier does require a registered technician's install within 90 days. DIY costs you that top tier specifically[2].
Will the Pioneer Quantum Ultra 12k keep up when it is below zero outside?
It holds 9,100 of its 12,600 BTU rating at 5°F and carries an ENERGY STAR cold-climate listing to −13°F[5]. A separate BTU capacity figure at −13°F itself is not published; only the efficiency figure runs that far. Size from the 5°F column against your actual heat load.
Why does Pioneer list different warranty registration deadlines?
Pioneer's own Limited Warranty Policy states two different windows on the same document: one week after install in the registration section, and 90 days in a footer promo block[7]. We could not resolve which one governs. Register as soon as the system is running rather than relying on either figure.
Is Pioneer made by Midea or TCL?
Yes. Pioneer is Midea/TCL-built, the same manufacturing relationship behind a large share of the budget and mid-tier ductless market[9]. Senville is Midea-built; MRCOOL is Gree-built. Rebadging is standard in this category and explains parts commonality between brands.
Do I need an electrician for a Pioneer mini split?
For this 12k, yes in almost every case. It ships 208-230V only, on a 15A double-pole breaker, with no in-stock 115V wall-mount 12k sold as a fallback[2]. Landing a new circuit in the panel is licensed-electrician work.
Sources
- Pioneer manufacturer product page, Quantum Ultra High-Wall Series 12,000 BTU 24 SEER2 230V (WYT012GLSI24RL): specs, price, stock status, warranty short-form, accessed August 2026
- Pioneer Submittal Sheet, WT012GLSI24HLG / YN012GLSI24RPG, System Full Set Model WYT012GLSI24RL, AHRI reference 217048751, accessed August 2026
- Buyer-research scan of Pioneer mini split coverage (140 buyer signals, 28 sources, 6 networks), scanned August 18 2026; used for complaint frequency, editorial-score framing, and the rear-flare-fitting leak pattern, never for a spec or price
- AHRI Certificate of Product Ratings, Pioneer WT012GLSI24HLG / YN012GLSI24RPG, ref 217048751, accessed August 2026
- NEEP Cold-Climate Air-Source Heat Pump directory entry: Pioneer WT012GLSI24HLG / YN012GLSI24RPG, product ID 378768, accessed August 2026
- Pioneer WYS012GMFI20RL-10 product page, discontinuation notice and replacement-link check, accessed August 2026
- Pioneer Limited Warranty Policy, pioneerminisplit.com/pages/warranty, accessed August 2026
- Pioneer / Parker Davis HVAC general warranty terms page, pdhvac.com/support/warranty, accessed August 2026
- Buyer-research scan of the DIY mini split category voice map, scanned August 18 2026 (rebadge decoder: Pioneer = Midea/TCL, Senville and Carrier ductless = Midea, MRCOOL = Gree); used for the manufacturing-relationship statement only, never for a spec or price
Spec verification process: how we verify specs and prices. Found an error? See the corrections policy on that page.
