Heating BTU calculator: what your heat load means

30-second answer

11,500 BTU/h at -8°Fverified Sep 2026

A heating load is the heat a room loses per hour, and it only means something at a stated outdoor temperature. The MiniSplitsHQ sizing calculator names its temperature: a 400 sq ft room with 8 ft ceilings, average insulation and zone 5 winters screens at 11,500 BTU/h at -8°F, a typical zone 5 design temperature.

• It is a load, not a unit size. The figure is the heat the room needs on a -8°F night, a MiniSplitsHQ screening estimate rather than a standard.
• Compare it to capacity at the same temperature. Two mini-split heat pumps rated 12,000 BTU/h for cooling list maximums of 6,600 and 16,200 BTU/h at 5°F on their NEEP records.^[1][2] Below 5°F, check the maker’s extended table.
• Manual J is the real number. DOE’s heat pump sizing notes say ACCA Manual J should be used to get reliable results.^[4]

Your own number comes from a load calculation; the sizing calculator runs the screening version in a minute.

What does a heating BTU calculator actually tell you?

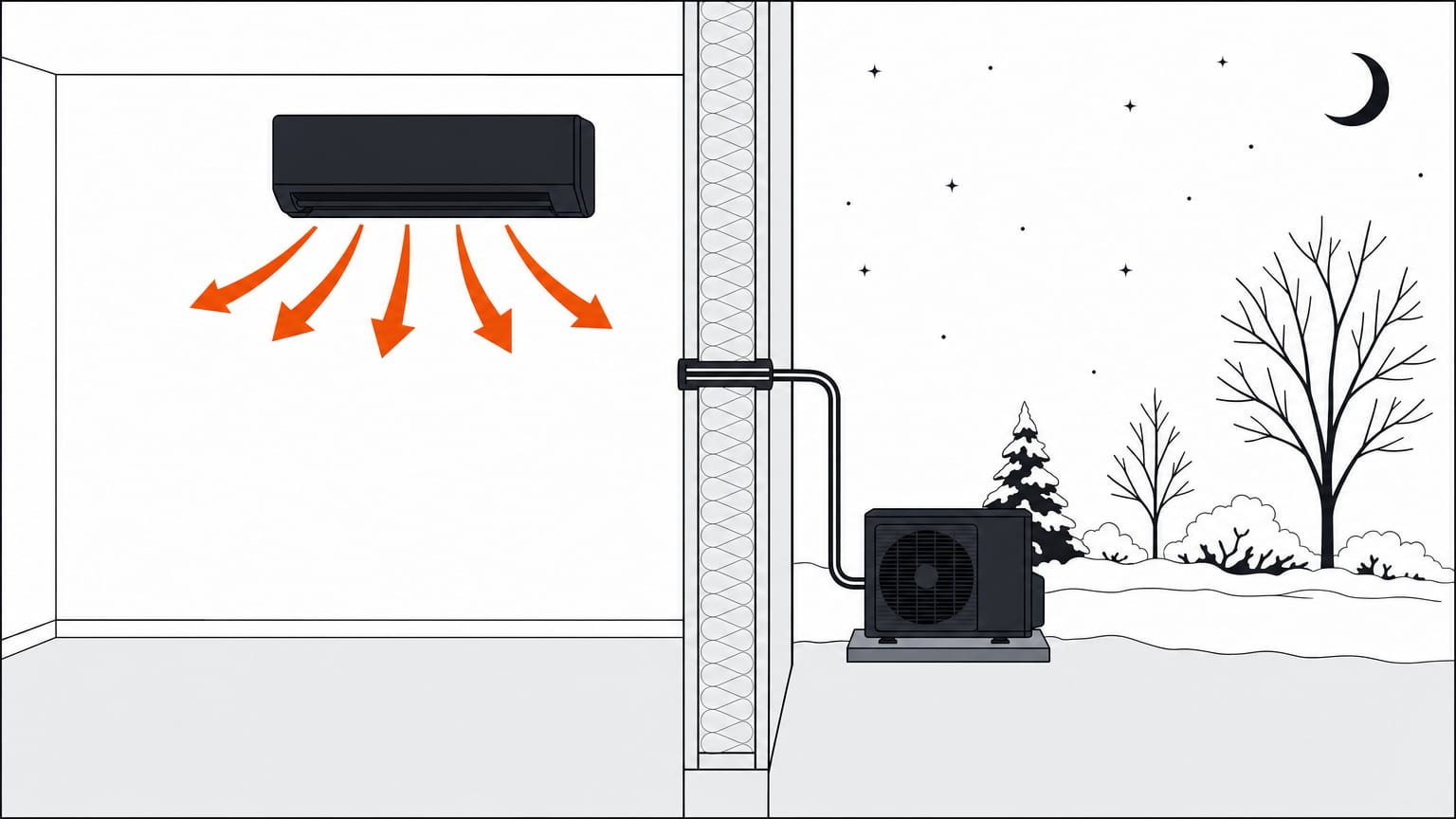

The MiniSplitsHQ calculator tells you a heat load: the BTU per hour a room loses on its zone’s typical design day, which a heater or mini-split heat pump has to replace. A 400 sq ft room with 8 ft ceilings, average insulation and zone 5 winters comes out at 11,500 BTU/h at -8°F. DOE’s sizing notes show the heat a house needs rising as the outdoor air gets colder,^[4] so a heating number means little without its temperature. The 11,500 figure is a screening estimate, and how it is built matters:

• The cooling side starts from ENERGY STAR. The calculator’s cooling estimate starts from ENERGY STAR’s room air conditioner sizing table, as our sizing methodology explains.
• The heating side is our judgment. The heating rate and the ceiling, insulation and climate-zone factors are MiniSplitsHQ editorial choices, not ACCA or ENERGY STAR figures.
• It stops at 1,400 sq ft or 36,000 BTU. Past either line the calculator shows no number and sends you to a Manual J load calculation instead.

So it is a screening tool: it narrows the field and does not sign off on a purchase. DOE’s sizing notes put it plainly: rules of thumb and simplified calculators exist, but ACCA Manual J should be used to get reliable results.^[4]

What moves a heating load up or down?

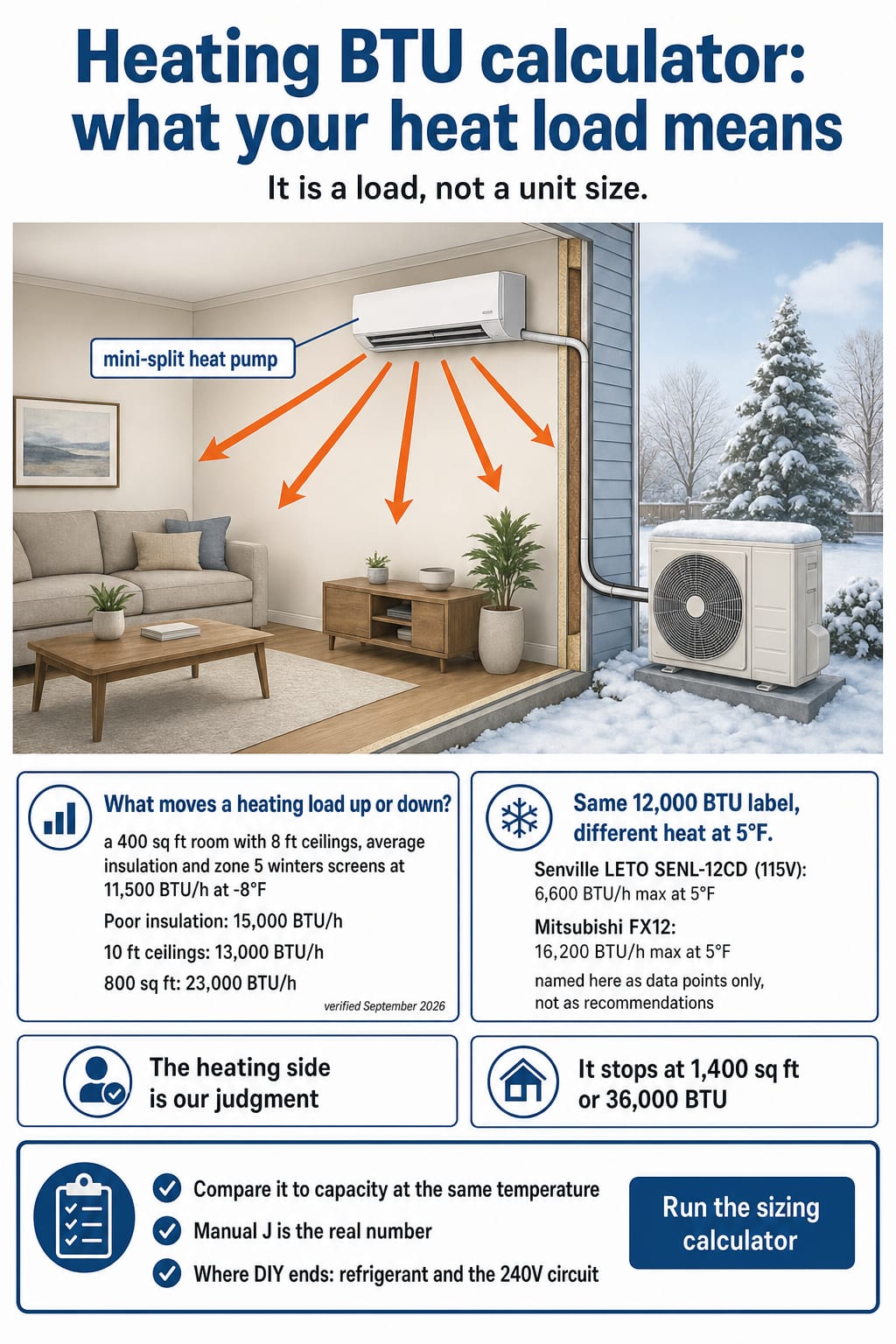

Four inputs move the heating load in the MiniSplitsHQ calculator: floor area, ceiling height, insulation and climate zone. Change one room input at a time from the 400 sq ft zone 5 example at 11,500 BTU/h, and the calculator gives these loads, all at -8°F:

• Poor insulation: 15,000 BTU/h. The same room with little or no insulation.
• 10 ft ceilings: 13,000 BTU/h. The same floor area with more room height to heat.
• 800 sq ft: 23,000 BTU/h. Twice the floor area, all else the same.

Climate zone works differently: it sets the design temperature, which is why it moves the load. Each zone’s label names its typical temperature, a MiniSplitsHQ screening value. Real design temperatures vary by city; a load calculation settles yours:

• Zone 6-7 winters: 13,500 BTU/h at -21°F. The same room in a very cold climate zone.
• Zone 3 winters: 7,500 BTU/h at 18°F. The same room in a warm climate zone.

In the calculator’s editorial factors, poor insulation moves this room’s load more than a zone 6-7 setting does, so set that input honestly. The mini split sizing chart lays the same kind of heating loads out by floor area.

A Manual J goes further than any of these inputs. Its section list includes component heating loads, windows and skylights, opaque panels, infiltration, ducts and ventilation.^[3] DOE’s notes add that an accurate result needs the building’s orientation, insulation, windows and air leakage, plus local climate data.^[4]

Will a 12,000 BTU mini split keep up at 5°F?

Not always: two mini-split heat pumps rated 12,000 BTU/h for cooling list maximums of 6,600 and 16,200 BTU/h at 5°F on their NEEP records.^[1][2] DOE’s sizing notes say a heat pump’s maximum capacity tends to be higher when it is warmer outside, because it is easier to pull heat from warm air than from cold air.^[4] They tell designers to use the maker’s extended performance tables at the design temperatures for the home’s location.^[4] Same 12,000 BTU label, different heat at 5°F:

• Senville LETO SENL-12CD (115V): 6,600 BTU/h max at 5°F. The record for the SENL-12CD-OL and SENL-12CD-ILL pairing lists 12,000 BTU/h of rated cooling at 95°F.^[1]
• Mitsubishi FX12: 16,200 BTU/h max at 5°F. The record for the MSZ-FX12NL and MUZ-FX12NLHZ pairing lists 12,000 BTU/h of rated cooling at 95°F.^[2]

6,600 BTU/h is below the 11,500 BTU/h example load and 16,200 BTU/h is above it, but that load is at -8°F. Below 5°F, the maker’s extended table decides. Both are named here as data points only, not as recommendations.

When a load sits above a unit’s capacity at your design temperature, something else has to cover the coldest nights. DOE’s notes say that when a heat pump can only carry the load down to a temperature warmer than the design temperature, an auxiliary heat source is needed for the colder parts of winter.^[4] The dual fuel heat pump post covers one way to add that backup.

The 5°F mark is one of NEEP’s rating points,^[1] not necessarily your town’s design temperature. A Manual J uses outdoor design conditions from its own tables or from ASHRAE weather data.^[3]

When do you need a Manual J instead of a calculator?

You need a Manual J load calculation before any final purchase, and always above 1,400 sq ft or 36,000 BTU, where the MiniSplitsHQ calculator stops giving numbers. ACCA says a proper Manual J load calculation is required by national building codes and most state and local jurisdictions.^[3] Your local building department decides what applies to your job.

Where DIY ends: refrigerant and the 240V circuit

Sizing is paper work, and running a calculator is safe for anyone. The install it leads to can cross two lines: refrigerant work that opens the circuit (flaring, vacuum or any repair) belongs with a licensed HVAC technician, and adding a 240V circuit belongs with a licensed electrician. That is where DIY ends for most people. Permits come from your local building department.

The DIY mini split installation guide marks which install steps belong to a licensed trade. The sizing order runs like this:

• Run the sizing calculator. It gives a screening heat load at your zone’s typical design temperature from four of its five inputs.
• Get a Manual J for the real load. For a heat pump that serves only part of a house, DOE says to calculate the loads for that part only.^[4]
• Use Manual S to pick equipment. ACCA’s Manual S uses the heating and cooling loads and the maker’s performance data to select equipment, with size limits that ACCA says prevent short cycling.^[5]
• Match the unit at your design temperature. Check the maker’s capacity at that temperature against the load, not the size on the box.

DOE’s notes also warn that rules of thumb typically lead to a larger unit chosen to meet an unrealistic heating load.^[4] Treat any calculator result, ours included, as a starting point. The what size mini split do I need guide walks the full sizing check, cooling side included.
