Dual fuel system heat pump: when a mini split needs backup

30-second answer

Switchover at 35°F to 40°Fverified Aug 2026

A dual fuel system heat pump is a heat pump paired with a gas or oil furnace, with a control that hands heating to the furnace once the outdoor air gets cold enough.

• Two heat sources, one job. ENERGY STAR describes dual fuel as heating with a heat pump or with a traditional gas or oil furnace, using each where it works best on cost.^[1]
• The handoff has a temperature. Conventional dual fuel controls switch to the furnace at a fixed 35°F or 40°F, which DOE calls a conservative setting.^[2]
• A mini split can play the heat pump role. It just has no shared thermostat with the furnace, so the handoff is manual.

It makes sense where winters drop below what your heat pump can carry, and where gas is cheap enough that running the furnace costs less than running the heat pump at low efficiency.

What is a dual fuel system heat pump, and what does it actually do?

A dual fuel system is two heating appliances sharing one house: an electric heat pump that moves heat from the outdoor air, and a gas or oil furnace that makes heat by burning fuel. ENERGY STAR frames it as a retrofit path, where a home with a newer furnace and an older central air conditioner swaps the AC for a heat pump and gets a dual fuel system for a modest extra cost over an AC alone.^[1] The heat pump does the cooling in summer and the mild winter heating, and the furnace is the cold-snap backup.

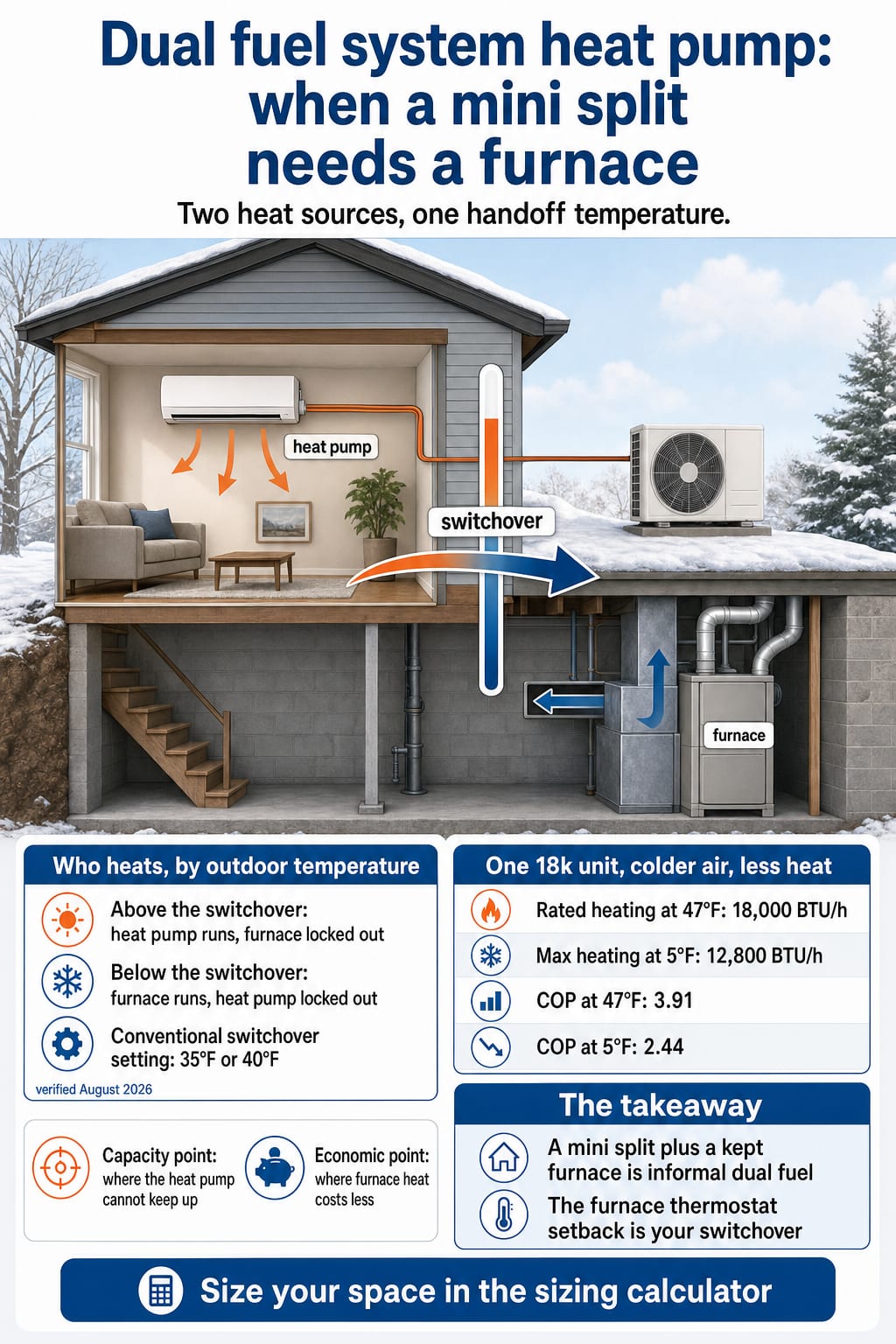

The piece that makes it a system rather than two appliances is the control. In a ducted install, one thermostat watches the outdoor temperature and decides which appliance runs:

• Above the switchover. The heat pump runs alone, and the furnace is locked out.
• Below the switchover. The furnace runs alone, and the heat pump is locked out. Running both through one set of ducts at once is avoided because the furnace’s hot supply air would cook the heat pump’s indoor coil.
• The switchover itself. Conventional controls use a fixed number, and the DOE project that studied these systems describes the traditional setting as a conservative 35°F or 40°F.^[2]

That fixed number is the weak point. A heat pump still heats well below 40°F, so a conservative switchover hands hours to the furnace that the heat pump could have served cheaper. Newer controls pick the switch point from live fuel prices instead, but the basic version you will be quoted is a single temperature.

Where should the switchover be?

The honest switch point comes from two curves crossing: the heat pump’s capacity falling as the air cools, and its efficiency falling with it. Take one real unit.

• Capacity. The MRCOOL DIY 5th Gen 18k is rated 18,000 BTU/h of heating at 47°F and a maximum of 12,800 BTU/h at 5°F on its NEEP listing.^[3]
• Efficiency. Its efficiency slides the same direction: a rated COP of 3.91 at 47°F and a maximum of 2.44 at 5°F.^[3]

At 47°F it delivers close to four units of heat per unit of electricity; at 5°F it is under two and a half.

So there are two different switch points, and they rarely match:

• The capacity point. The outdoor temperature where the heat pump can no longer meet the house’s heat loss by itself. Below it you need the furnace whether you like the cost or not. It depends on your unit’s capacity at temperature and on your home’s load, which is why it starts with a load calculation and not a chart.
• The economic point. The outdoor temperature where a unit of heat from the furnace costs less than a unit of heat from the heat pump at that temperature’s COP. It depends on your electric rate, your gas rate, and the furnace’s efficiency, so it moves every time a utility changes a tariff.

A household with cheap gas and expensive electricity may hit the economic point first, in the 30s. A household with cheap electricity and propane delivery may never hit it, and the furnace only runs when capacity runs out. The sizing calculator gives you the screening load number that the capacity point depends on, and your utility bill gives you the rates the economic point depends on.

Does dual fuel make sense with a mini split?

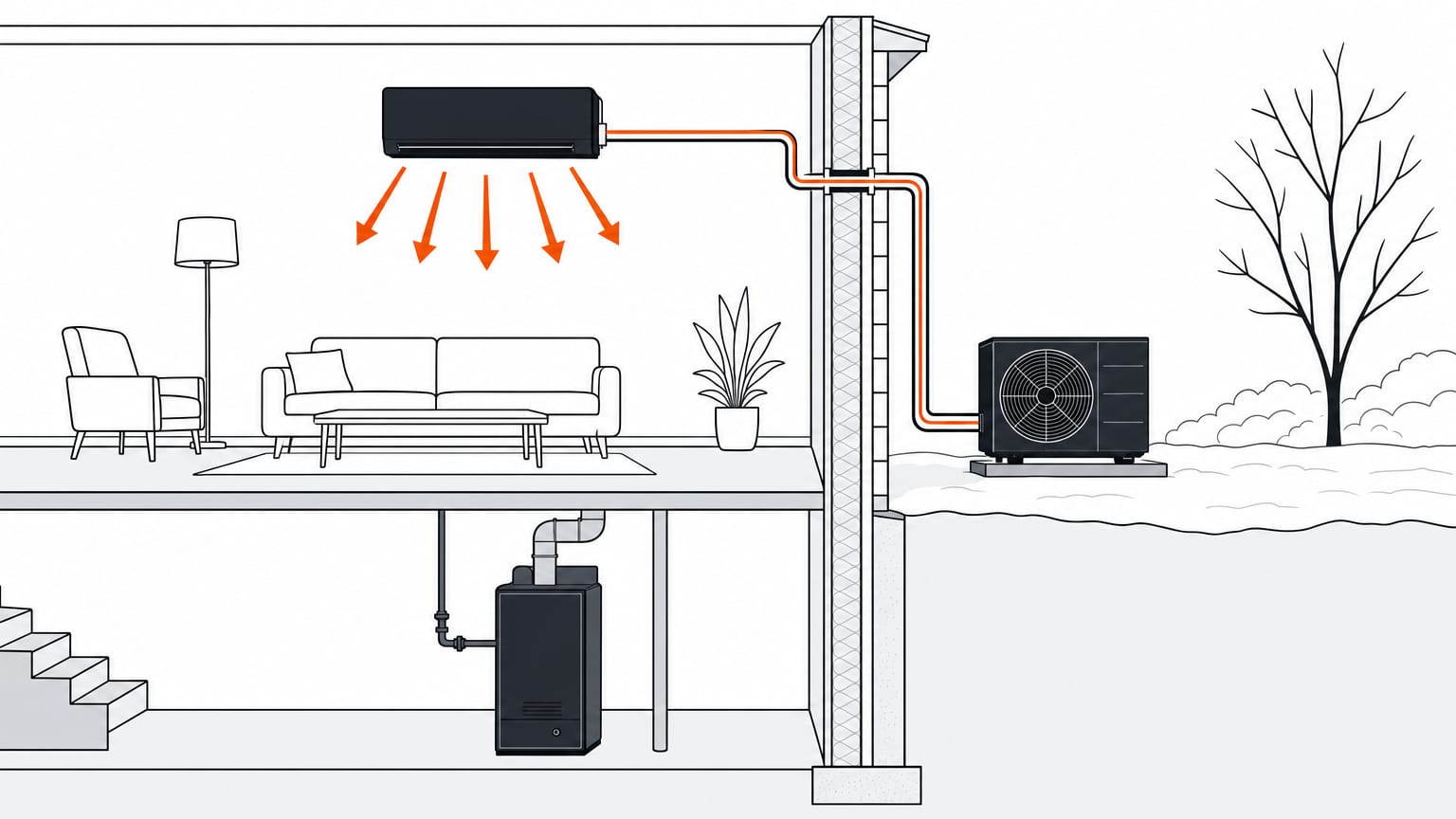

Sometimes, and it is the version most readers of this site actually end up with: a ductless mini-split heat pump added to a house that keeps its existing furnace. A mini split is a heat pump in the ordinary sense, moving heat from outside to inside by running the refrigerant cycle in reverse in winter.^[4] What changes is the control story: there is no shared thermostat, no outdoor sensor deciding who runs, and no lockout. The mini split heats the rooms it serves, the furnace thermostat sits at a low setback, and the furnace fires only when the mini split falls behind.

That arrangement is informal dual fuel, and it works if you set it up with the failure modes in view:

• It is per room, not per house. A single head warms the space it is in. Rooms behind closed doors fall back on the furnace sooner than the thermostat room does.
• The setback is the switchover. If the furnace thermostat is set at 62°F, the furnace takes over whenever the mini split cannot hold 62°F. That is your handoff, and you set it by hand.
• Capacity at temperature still rules. A standard mini split loses capacity fast in the cold, and a cold-climate model loses less. ENERGY STAR tests cold-climate units down to 5°F, and notes that pairing one with a back-up heat source heats most efficiently when it gets colder than that.^[1]

If the furnace is old and you are choosing between a cold-climate mini split sized to carry the house alone and a smaller unit leaning on the furnace, the what size mini split do I need guide walks through the load math and the design-temperature check that decides it. The control wiring on a true ducted dual fuel system, and any gas appliance work, is a job for a licensed HVAC technician, not a weekend task.
