Fujitsu mini split review: 16,600 BTU at 5F, 2026
30-second answer
This Fujitsu mini split review covers the Airstage 12KZAH1 (ASUH12KZAS/AOUH12KZAH1). AHRI lists a maximum capacity of 16,600 BTU of heat at 5°F[2], and NEEP’s own entry agrees exactly[3]. Installation is a flare-and-vacuum job, and Fujitsu’s own warranty requires a licensed HVAC technician. Two real gaps run through this review. No public US price exists for this model, and capacity at -22°F is unpublished, unlike some cold-climate peers. Neither is guessed here.
Is Fujitsu reliable, or is Reddit just complaints?
Fujitsu is not junk. The Airstage H-Series Orion XLTH is a cold-climate inverter heat pump line, and the 12KZAH1 is AHRI-rated 30.5 SEER2[1][2]. Buyers in the scan we reviewed rate it reliable and slightly cheaper installed than Mitsubishi[6].
Troubleshooting posts still outnumber happy-owner posts, the pattern every brand in this niche shows. Two complaints recur most in the Fujitsu scan:
- Multiple buyers describe technical support as slow, with long waits for a case number even through an Elite contractor.
- Several buyers report Fujitsu declining a warranty claim, including one report of the 12-year term not being honored[6].
Neither is a hardware-defect story on its own. Both point at the same risk this review’s warranty section covers. The coverage terms are real, but they are also strict.
| Metric | Value |
|---|---|
| Cooling, rated at 95°F✓ | 12,000 BTU/h |
| Heating, rated at 47°F✓ | 16,000 BTU/h (COP 4.64) |
| Heating, intermediate-load at 17°F✓ | 10,000 BTU/h |
| Heating, maximum capacity at 5°F✓ | 16,600 BTU/h (COP 2.16) |
| SEER2 / EER2✓ | 30.5 / 16.0 |
| HSPF2 (IV) / (V)✓ | 12.7 / 10.1 |
| Voltage✓ | 208/230V |
| MCA / max breaker✓ | 14.4A / 15A |
| Line set✓ | 82 ft max, 49 ft pre-charged |
| Refrigerant✓ | R-32 |
| Indoor sound, Quiet mode✓ | 23 dB(A) |
| Outdoor sound✓ | 47 dB(A) |
| All figures verified Aug 2026 · How we verify | |
Every capacity figure above comes from Fujitsu’s own submittal data sheet and matches the AHRI Certificate of Product Ratings exactly[1][2]. NEEP’s directory entry agrees too, at 47°F, 17°F, and 5°F[3]. That three-way agreement holds across the rated, intermediate, and maximum-capacity points alike, three different measurements, not one figure repeated.
The two sound figures come from the submittal alone; neither AHRI nor NEEP track noise[1]. Indoor sound drops to 23 dB(A) at the lowest fan speed on both cooling and heating, the quietest setting Fujitsu publishes for this model.
One more figure does not agree. The submittal’s own output range at 47°F tops out at 24,000 BTU, a separate number from the rated 47°F point above. NEEP’s own recorded figure at that same point is 23,600 BTU.
Both values are stated here rather than picked. The rated 16,000 BTU figure in the table above is not in question; both sources agree on it exactly. Only the top of the maximum-output range disagrees, by 400 BTU, and this page does not choose one.
Will it keep up when it’s below zero outside?
Yes, slightly below the -13°F floor common on this site’s other reviews. Fujitsu’s operating range runs to -15°F, and NEEP publishes a maximum capacity there too: 12,200 BTU[3].
That is the honest way to size a Fujitsu for a real cold-climate winter. The 5°F maximum-capacity figure, 16,600 BTU, is the number to check against your load first[2][3]. The -15°F figure is a second data point for a colder design temperature, not a guaranteed floor.
Capacity at -22°F is not published anywhere for this model. Fujitsu’s own submittal states the operating range stops at -15°F and adds that “capacity is not tested outside of the rated temperature range”[1]. Buyers who need a rating that deep should compare against a brand that publishes one, like the Senville Aura.
Size any purchase from the sizing calculator against your actual heat load. Cold air from the head in heat mode is usually the defrost cycle clearing frost from the outdoor coil, not a fault, on this brand like any other.
Where DIY ends: the flare fittings and the 230V circuit
The 12KZAH1’s line set arrives pre-charged for a 49 ft run, but the fittings are flared copper, not sealed quick-connect. Evacuating the line with a vacuum pump, holding a micron target, and passing a nitrogen pressure test is refrigerant handling. That is where DIY ends for most people on this system.
The outdoor unit also needs a dedicated 230V circuit. Sizing that circuit, and landing it in the panel, is a licensed electrician’s job, permitted through your local building department.
Fujitsu’s own warranty applies only to systems installed by a contractor licensed for HVAC installation, at every coverage tier. If a fitting leaks after install, stop. That repair belongs with a licensed HVAC technician too.
Do I need an electrician, or can my panel handle it?
Yes. The 12KZAH1 draws on a dedicated 208/230V circuit. It needs 14.4A MCA and a 15A maximum breaker[1]. There is no 115V option on this model.
The available voltage range is 187 to 253V, wider than the nameplate 208/230V figure suggests[1]. That range is for your electrician to confirm against your actual panel feed, not a substitute for sizing the circuit correctly.
What does the install actually involve, and what does it cost?

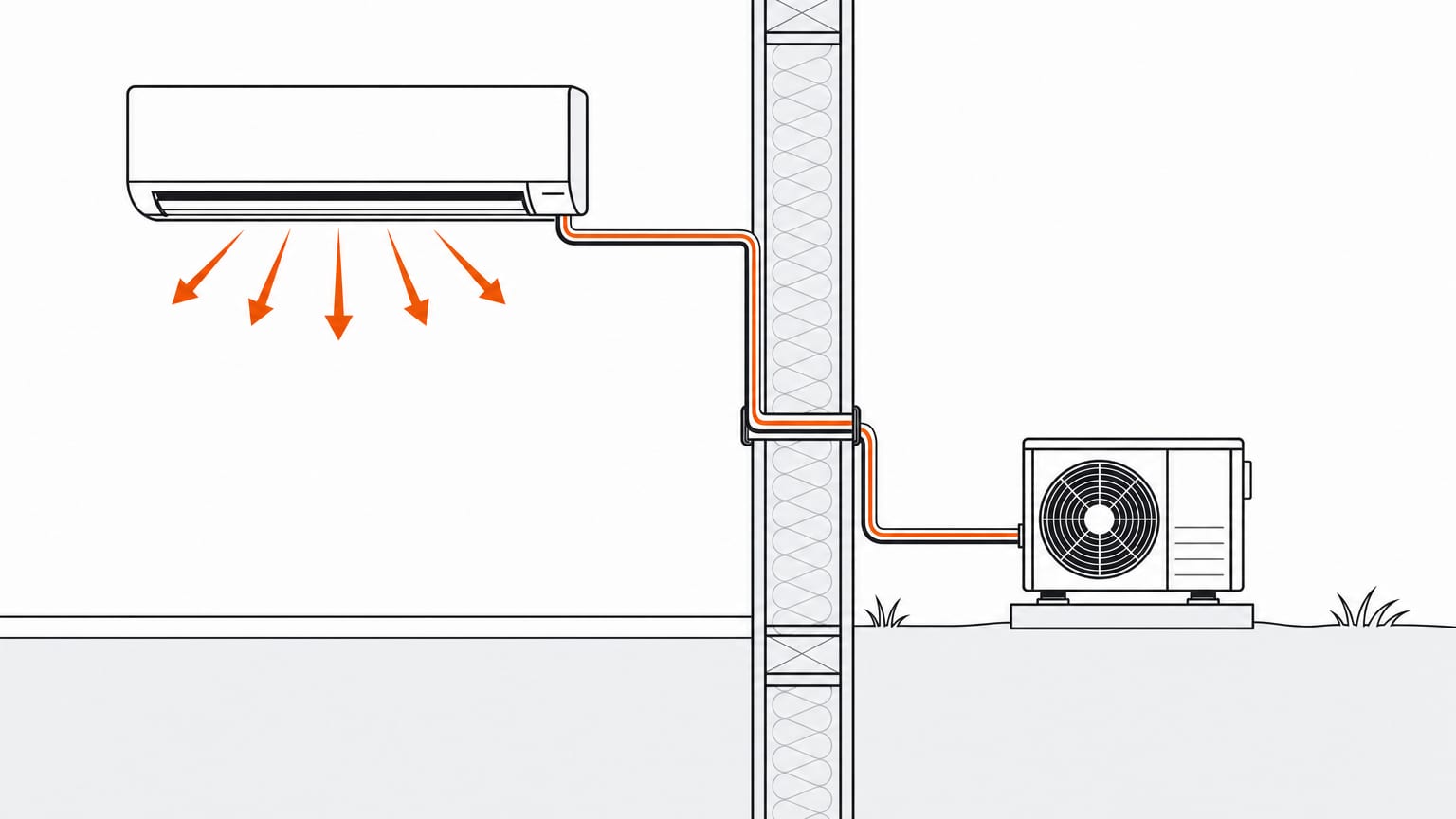

A 12KZAH1 install is a standard flare-and-vacuum split-system job. It needs:
- A wall bracket for the indoor head.
- A pad for the outdoor unit.
- The line set, routed through a sleeved wall penetration.
- A condensate drain.
- The 230V circuit described above.
Pricing is a genuine gap here, not a guess. Every distributor listing we could reach for the 12KZAH1 gates its price behind a trade login, consistent across multiple portals[5]. No public, dated US retail price exists to cite.
That gap lines up with Fujitsu’s own warranty policy. It explicitly excludes “any System purchased from an online retailer” from coverage, stated twice in the same document[4]. A Fujitsu buyer prices this system through a dealer or an Elite contractor, not a retail listing.
Will a DIY install void my warranty?
Yes, at every coverage tier. Fujitsu’s Limited Warranty Statement states plainly that it “applies only to Systems… installed by contractors who are licensed for HVAC installation”[4]. That requirement does not loosen at the base tier.
Fujitsu sits with Daikin and Mitsubishi in the tier where DIY voids the warranty outright. The dealer-only price and the online-retailer exclusion are the same story told twice: this brand is built around a contractor relationship, not a retail purchase.
Who should buy Fujitsu, and who should not
Buy the Airstage 12KZAH1 if all of these are true:
- Your heat load at 5°F fits its 16,600 BTU rating, checked against the sizing calculator.
- You are buying through a dealer or contractor, not shopping for an online listing that will not carry the warranty anyway.
- You want the 12-year term badly enough to use a Fujitsu Elite Contractor specifically, not just any licensed installer.
Do not buy it expecting a self-service purchase path. There is no public price to compare, and the warranty voids on an online purchase before installation even enters the picture. If a true no-vacuum install is what you actually want, the MRCOOL DIY review covers the one brand tier built around that. If you want a premium peer with a public price and a similar cold-climate story, the Daikin review is a closer comparison than this page can be on price alone.
What a good quote itemizes, if you hire the install
Ask a Fujitsu-authorized contractor to separate these line items before you sign:
- The flare, vacuum-down, and nitrogen pressure test, priced as labor.
- The 230V circuit, priced by the run from your panel and carrying the permit.
- Warranty registration, completed within 60 days, if you want the 10-year term.
- Whether the contractor is Fujitsu Elite-rated, since that status is the only path to the 12-year term.
Quick answers
Is the Fujitsu Airstage pre-charged, or do I still need a vacuum pump?
The line set ships pre-charged for a 49 ft run. But the fittings are flared copper, not sealed quick-connect[1]. A vacuum pump, a micron gauge, and a nitrogen pressure test are still required before startup. Only MRCOOL DIY and Zone Air ship true quick-connect lines that skip this step.
Will a DIY install void the Fujitsu warranty?
Yes. Fujitsu's warranty applies only to systems installed by a contractor licensed for HVAC installation, at every tier[4]. It also does not cover a system purchased from an online retailer, stated twice in the same warranty document.
Will the Fujitsu Airstage keep up when it is below zero outside?
Yes. AHRI and NEEP both list a maximum capacity of 16,600 BTU of heat at 5°F[2][3]. NEEP also publishes a maximum of 12,200 BTU at -15°F, slightly below the -13°F floor common on other brands this site reviews.
Do I need an electrician for a Fujitsu mini split?
Yes. The 12KZAH1 draws on a dedicated 208/230V circuit, rated 14.4A MCA and a 15A maximum breaker[1]. There is no 115V option. Landing that circuit in the panel is licensed-electrician work, permitted through your local building department.
What does a Fujitsu Airstage 12KZAH1 cost?
We could not find a public, dated US retail price for this model[5]. Every distributor listing we could reach gates its price behind a trade login, consistent with Fujitsu's own warranty excluding online-retailer purchases. Price it through a dealer or contractor directly.
Is Fujitsu more reliable than other premium brands?
Buyers in the scan we reviewed rate Fujitsu reliable and slightly cheaper installed than Mitsubishi[6]. The sharpest complaints in the same scan concern slow technical support and disputed warranty claims, not the compressor itself.
Sources
- Fujitsu submittal data sheet, AIRSTAGE Orion XLTH 12KZAH1 (ASUH12KZAS indoor / AOUH12KZAH1 outdoor), Version 20250409A, Fujitsu General America Inc., accessed August 2026
- AHRI Certificate of Product Ratings, Fujitsu AOUH12KZAH1/ASUH12KZAS, reference 214888802, status Active, accessed August 2026
- NEEP Cold-Climate Air-Source Heat Pump directory entry: Fujitsu ASUH12KZAS/AOUH12KZAH1 (product 392122), accessed August 2026
- GENERAL HVAC Solutions America, Inc. Limited Warranty Statement, AIRSTAGE R-32 H-Series (Ver: Oct 2025), accessed August 2026
- Live search across Fujitsu distributor/wholesale listings for ASUH12KZAS/AOUH12KZAH1/12KZAH1: every reachable listing (Fujitsu General B2B, and other trade-only portals) shows “Price Unavailable” or requires a trade login, accessed August 2026
- Buyer-research scan of Fujitsu mini split coverage (166 buyer signals, 37 sources, 6 networks) and a DIY mini split category voice map, scanned August 18 2026; used for complaint frequency and reliability framing, never for a spec or price
