Mitsubishi mini split not heating? What to check first

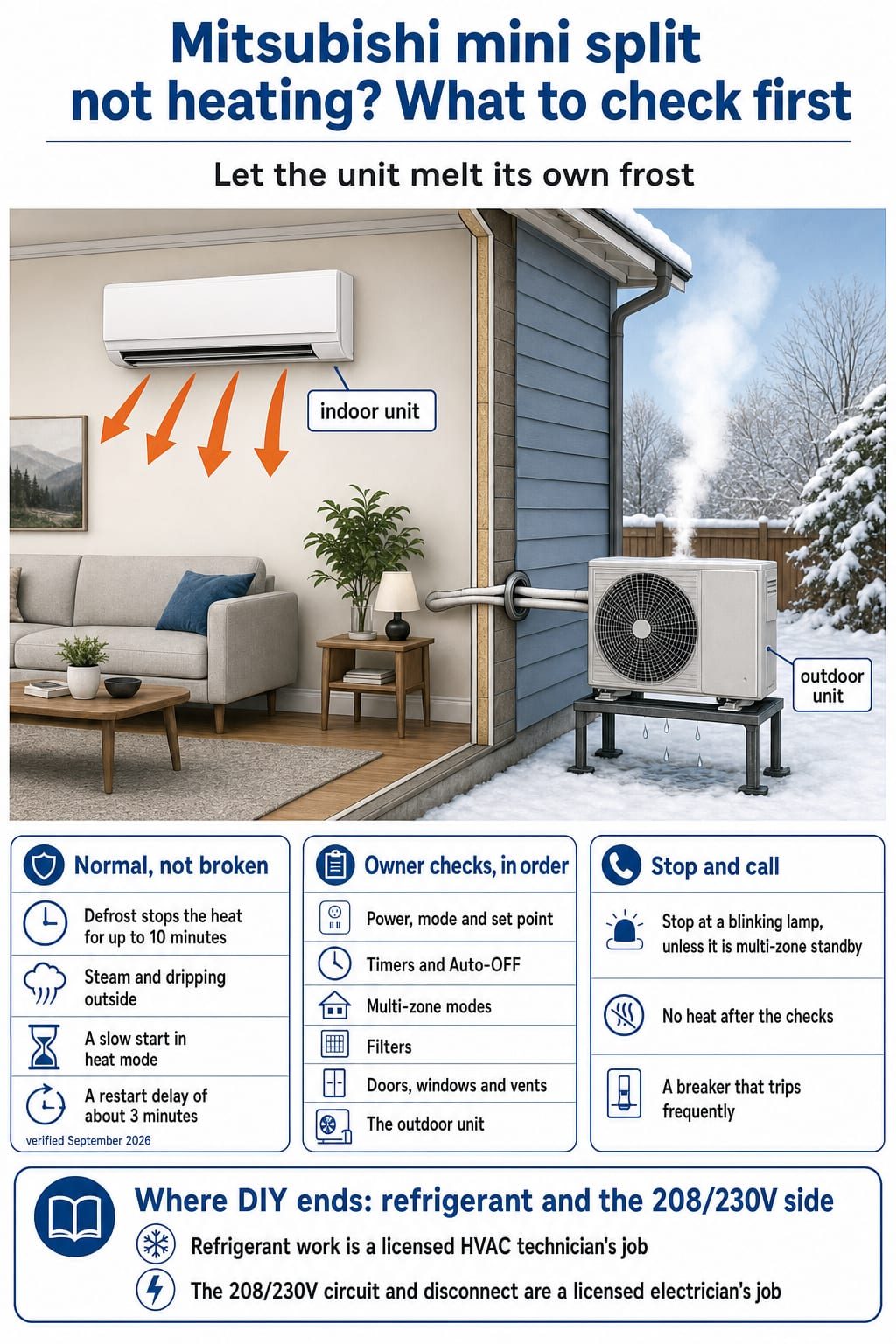

30-second answer
In our judgement, a Mitsubishi mini split not heating is usually a mini-split heat pump taking a normal pause or waiting on an owner check, and only occasionally a refrigerant problem. The FX and GX owner’s manuals separate the two:
- Defrost pauses the heat. In heat mode the unit can stop for about 10 minutes while the outdoor unit defrosts, 10 at most, and it waits to blow until the air is warm.[1][4]
- A few owner checks come next. Look at the remote’s settings, the filters, blocked airflow and snow piled around the outdoor unit.[1][2]
- Stop at a blinking lamp, unless it is multi-zone standby. Mitsubishi tells owners to stop using the unit and call the dealer when the operation lamp blinks.[1][4]
If the room still will not warm after those checks, call a licensed HVAC technician.
Why is my Mitsubishi mini split blowing cold air in heat mode?

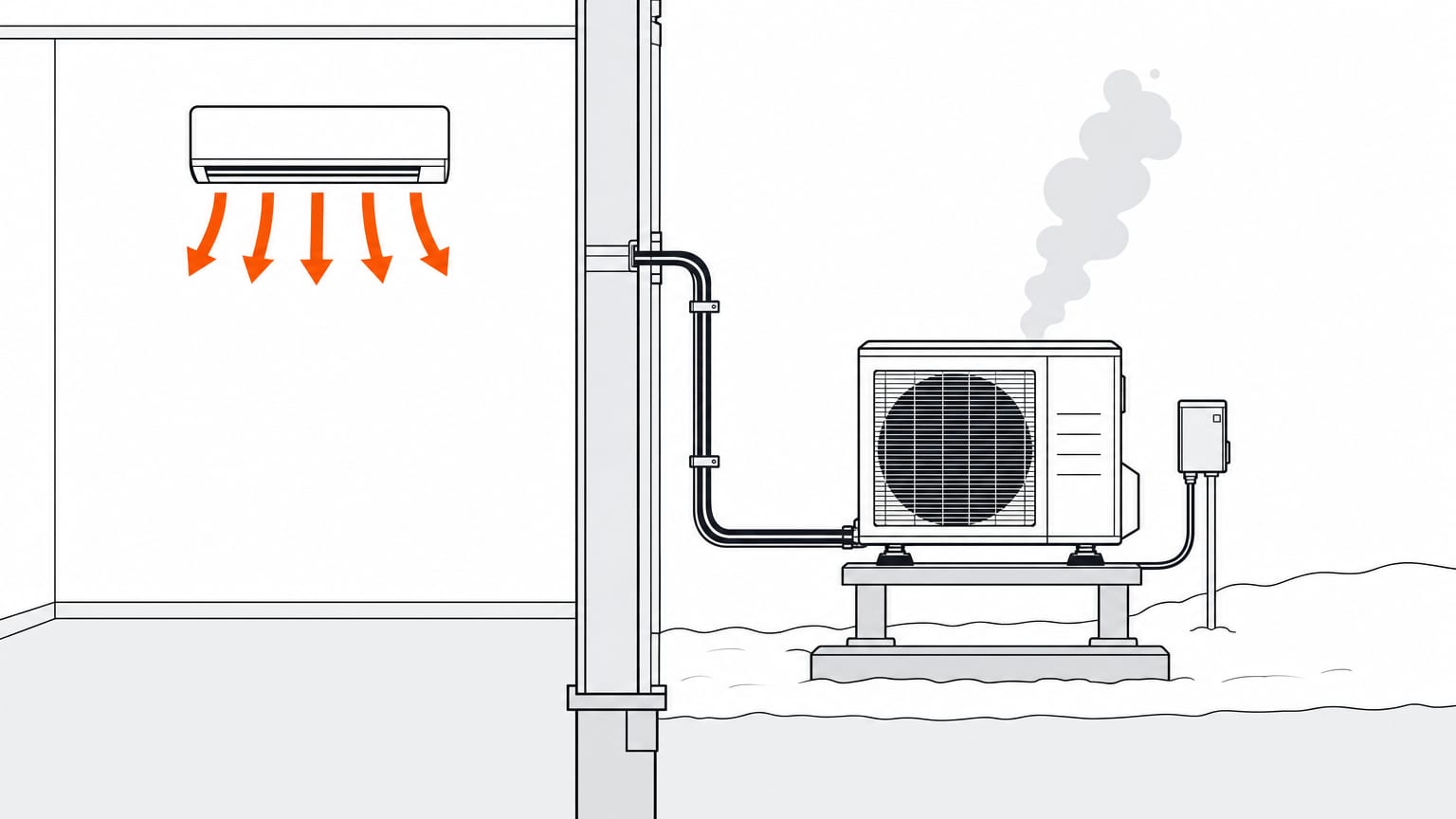

On a cold, damp day, rule out defrost first on a Mitsubishi mini split blowing cold air. The FX-series owner’s manual says heating stops for about 10 minutes while the outdoor unit clears frost, which forms when outdoor air is too cold and too humid.[1] Negative findings outnumber positive ones in our buyer-research scan, so this symptom reads scarier online than the manual makes it.
Normal, not broken, per the manual’s trouble table:
- Defrost stops the heat for up to 10 minutes. The horizontal vane also swings flat on its own during defrost.[1]
- Steam and dripping outside. Melting ice drips from the outdoor unit, and defrost vapor can look like white smoke.[1]
- A slow start in heat mode. Air may not blow right away while the unit prepares to blow warm air.[1]
- A restart delay of about 3 minutes. The manual calls this protection for the unit.[1]
What should you check first?
Start at the remote: for a unit that will not heat, Mitsubishi’s FX manual checks the temperature and fan settings first, and the bundled remote takes a heat set point from 50 to 88°F.[1] Filters, blocked airflow and open windows or doors come next.[1]
Where DIY ends: refrigerant and the 208/230V side
The checks below stop at the remote, the filters, the breaker switch and snow around the outdoor unit; past that, DIY ends. Refrigerant work is a licensed HVAC technician’s job. Every electrical cover stays closed on any model; on the FX, for example, both units are wired at 208/230V.[3] The 208/230V circuit and disconnect are a licensed electrician’s job, and your local building department decides what needs a permit.
Owner checks, in order:
- Power, mode and set point. If the unit will not run, check the breaker, and if it trips frequently, stop and call your dealer.[1] Then confirm HEAT, a set point above room temperature and a High or Super High fan speed, and fit fresh remote batteries if its display is dim.[1]
- Timers and Auto-OFF. An ON timer starts the unit only at its set time, and a weekly timer can start and stop it by itself. On the FX, No occupancy Auto-OFF can switch it off while the remote shows it running; press OFF/ON twice.[1]
- Multi-zone modes. If one indoor unit runs COOL, DRY or FAN while another runs HEAT, the one set last goes into standby and one of its lamps blinks.[1] Put every head in heat.
- Filters. The manual recommends cleaning the air filters every 2 weeks with the power off, and says never to wash the inside of the indoor unit; that is a dealer job.[1] The mini split maintenance guide covers the routine.
- Doors, windows and vents. Close open windows and doors, and clear anything blocking the indoor unit’s air inlet or outlet.[1]
- The outdoor unit. Clear snow from around it. Let the unit melt its own frost, since the manual warns against touching the fins or speeding up defrost by other means.[1] Mitsubishi’s winter guide adds that your contractor should mount it above your snow line.[2] If ice still coats it after a defrost cycle, stop and call a licensed HVAC technician.
What does a blinking light or error code mean?
On a Mitsubishi FX indoor unit, a blinking left/upper operation lamp is the signal to read an error code and a reason to stop and call the dealer.[1] On a multi-zone system, first rule out standby, which the FX manual shows as the left lamp lit and the right one blinking.[1][4]
The FX manual walks owners through reading the code:[1]
- Start with the remote off. Aim it at the indoor unit and hold CHECK with a fine-tipped object until the unit beeps.
- Read the “00” result. Two beeps means no error; one beep means an error.
- Step through the codes. The TEMP buttons change the code, and two beeps means the unit has the error shown.
- Match it to the table. Among others, the FX table lists E8, E9 and EC as “indoor/outdoor communication, receiving error” and PL as “outdoor refrigerant system.”
None of these is an owner fix: once a code shows, the manual says to stop using the unit, turn off the breaker and contact your dealer.[1] The table is the FX’s, so confirm any code in your own manual. No CHECK button? Then the blinking lamp alone means stop and call.
When is it time to call a Mitsubishi contractor?
A Mitsubishi mini split that stays cold after the checks, past any defrost pause of up to 10 minutes, needs your installing contractor or another licensed HVAC technician.[1][5] Less often, the cause is refrigerant: the FX manual says that when the unit does not cool or heat, refrigerant may be leaking, and that if a leak is found you should stop, ventilate the room well and consult your dealer immediately.[1]
Stop and call for these signs, too:[1]
- No heat after the checks. The manual says to stop using a unit that does not recover and consult your dealer.
- A breaker that trips frequently. Water dripping from the indoor unit is on the same stop list.
In deep cold, the outdoor unit may stop below its guaranteed heating range until the air warms up.[1][4] On a single-zone GX system, that limit is -5°F for the MUZ-GX09/12/15NL outdoor units and -22°F for their NLHZ versions.[4] Even inside the range, the FX manual says heating may not be sufficient when it is cold outside.[1] A unit that keeps losing ground on ordinary cold nights may be undersized, and the sizing calculator gives a screening number that a Manual J load calculation then settles.
The Mitsubishi mini split review covers the brand in depth.
Common questions
How long does it take a mini split to defrost?
On Mitsubishi's FX and GX series, heating stops for about 10 minutes while the outdoor unit defrosts, and both owner's manuals say the cycle is completed in 10 minutes at most[1][4]. The FX installation manual adds that defrost takes longer when the outdoor unit is exposed to wind, which is why it asks for a spot not overly exposed to strong winds[3]. These are Mitsubishi's figures for these two series, so check your own manual.
What are some common problems with Mitsubishi mini splits?
Our buyer-research scan, run in August 2026, lists four weak spots: the price premium, kumo cloud app flakiness, the upkeep of cleaning filters every two weeks, and slow parts when a failure does happen. The filter schedule is Mitsubishi's own advice: the FX manual recommends cleaning the air filters every 2 weeks[1]. None of the four is a heating fault on its own.
